GB/T 16913.5 Dust Resting Angle Tester Φ 80 × 250mm Injection Limited Bottom Method

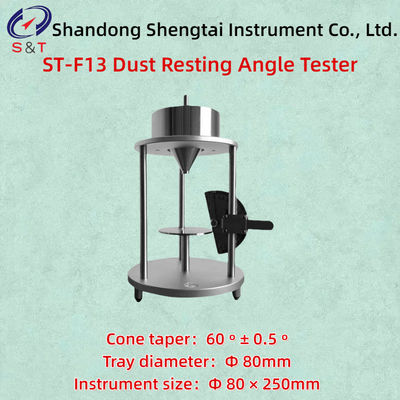

ST-F13 Dust Resting Angle Tester

Resting angle (also known as angle of repose): refers to the acute angle between the inclined plane of dust accumulation and the horizontal plane at the bottom.

The ST-F13 dust angle of repose tester is designed and produced in accordance with the national standard GB/T 16913.5-1997 "Methods for testing the physical properties of dust - Part 5: Determination of angle of repose - Injection limited bottom method" (this standard refers to ISO 4324:1997 Powder and granular surfactants - Determination of angle of repose - Powder and particle).

The applicable measurement object of this device is dust, and the dust resting angle is measured using the injection limited bottom method. The main technical difference from ISO 4324:1997 is that it does not measure the height of dust accumulated on the limited bottom surface, but directly measures the dust resting angle using a protractor.

The working principle is sufficient for the dust overflowing from the material tray to be injected into the horizontal material tray through the funnel mouth; Measure the acute angle between the inclined plane of dust accumulation and the horizontal plane at the bottom, which is the dust resting angle.

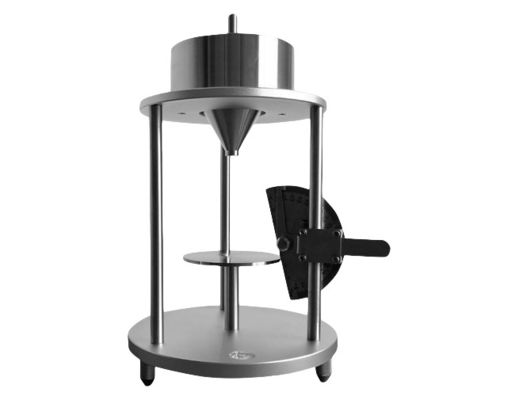

Instrument structure

The entire equipment is made of 304 stainless steel

Technical Parameter

Funnel (outlet diameter 5mm), with a cone angle of 60 °± 0.5 º;

Dimensioner: Dimensioner 10cm;

Chassis: The distance between the bottom of the outflow port and the disc surface is 80mm ± 2mm, and the diameter of the material disc is Φ 80mm.

Repetitive error: ≤ 1%

Size: Φ 80 × 250mm

Weight: 2.6kg

Packaging size: 410X315X220mm

Weight: 3.8kg

Customer provided:

1. Drying oven

2.80 Target Screening

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
