Drug Rotation Spectrophotometer Touch Screen CHP 0621 Temp Control 15℃-35℃

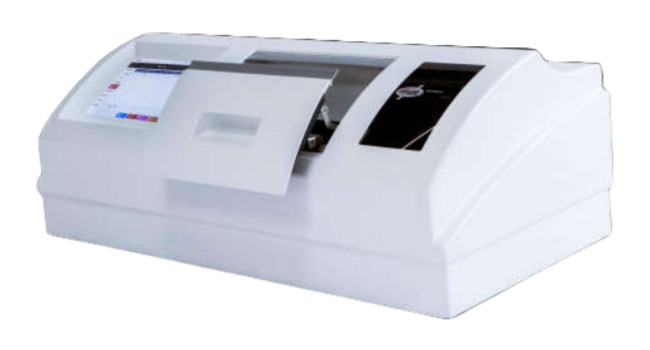

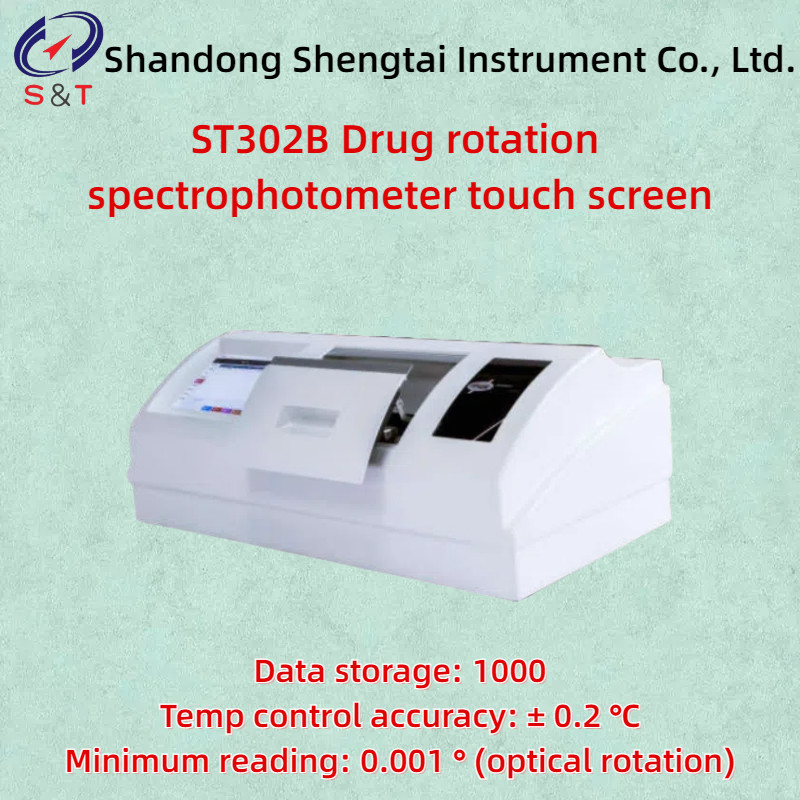

ST302B Drug rotation spectrophotometer touch screen

The touch screen of ST302B drug optical rotation analyzer is designed and manufactured according to the new version 2025 Chinese Pharmacopoeia 0621 optical rotation analyzer method, mainly used as a specialized instrument for measuring the optical rotation of drugs. Equipped with a touch screen display and cold light sources such as LED, it has a long service life and can detect optical rotation, specific rotation, concentration, and more

Unless otherwise specified, the 2025 Chinese Pharmacopoeia 0621 rotational photometry method uses the D-line (589.3nm) of the sodium spectrum to determine energy intensity, with a measuring tube length of 1dm (if other tube lengths are used, conversion should be made) and a measuring temperature of 20 ℃.

Performance characteristics

Built in Peltier temperature control to improve accuracy and stability.

LED light sources with a lifespan of over 100000 hours compensate for their short lifespan and susceptibility to damage;

To ensure the measurement accuracy of the results, the instrument temperature control technology adopts built-in Peltier instead of traditional flow cells;

The control adopts systematization, high integration, full automation, and is convenient and easy to operate;

Upgrade the measurement range to ± 89 ° (optical rotation), improve the limitations of the measured sample, and enhance the selectivity of the measured sample;

Upgradeable multi-level synchronous retrieval function, which can retrieve historical data based on testing dates, sample numbers, etc.

★ Compliant with 21CFR Part 1 audit trail, pharmacopoeia, and electronic signature (optional)

Main technical parameters:

Power supply: 220V ± 22V, 50Hz ± 1Hz, 250W

Display mode: 7-inch TFT true color touch screen

Light source: LED cold light source+high-precision interference filter

Measurement modes: optical rotation, specific rotation, concentration

Measurement range: Optical rotation ± 89.99 °

Measurement accuracy: ± 0.01 ° (-45 ° ≤ optical rotation ≤+45 °)

Temp control method: built-in Peltier

Temp control range: 15 ℃ -35 ℃ (Peltier)

Temp control accuracy: ± 0.2 ℃

Minimum reading: 0.001 ° (optical rotation)

Repeatability: (standard deviation s) 0.002 ° (optical rotation)

Minimum detectable sample transmittance: 1%

Working wavelength: 589.3nm (sodium D spectrum)

Thermostatic rotation detection tube: 100mm

Output mode: USB, RS232

Net weight of the instrument: 24kg

Data storage: 1000

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
