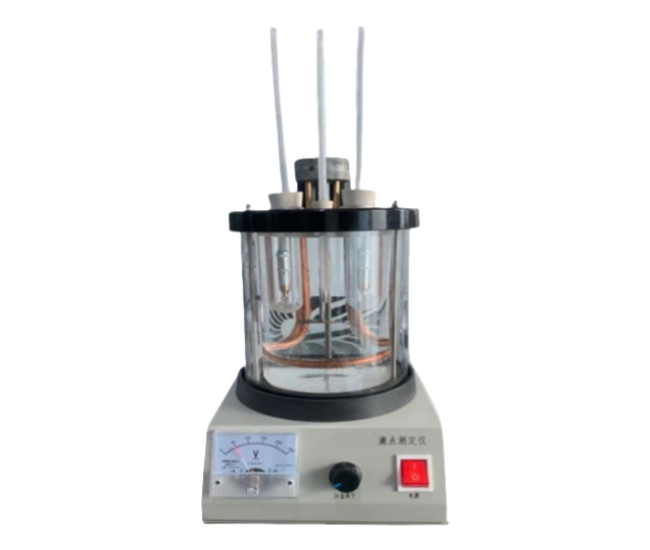

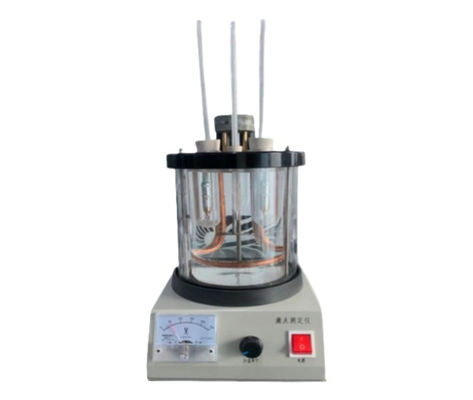

ST212AL Vaseline Manual Drip Point Instrument

The ST212AL manual Vaseline drop point analyzer fully complies with the standards of the 2025 Chinese Pharmacopoeia, British Pharmacopoeia, and SH/T0678 "Vaseline Drop Point Determination Method" for determining the drop point of Vaseline, that is, the temperature at which Vaseline reaches a certain fluidity under the specified test.

Technical specifications and parameters

Working power supply: AC220V ± 10%, 50Hz

Bathtub: Insulated double-layer bathtub.

Fat cup: brass chrome plated

The dimensions are as follows:

Wide mouth inner diameter: 7.35-7.65mm

Wide mouth outer diameter: 9.95-9.99mm

Narrow inner diameter: 3.1-3.2mm

Narrow outer diameter: 5.5-5.6mm

Cup height: 15.0-15.4mm.

Test tube: Glass test tube: total length 110mm, inner diameter 25mm.

Metal sleeve thermometer: specialized -5-105 ℃

Heater: tubular, with a power of 400W.

Mixing motor: The speed is 250 revolutions per minute.

Environmental temperature: (-10~+40) ℃;

Relative humidity: ≤ 85%;

Power consumption of the whole machine: not exceeding 500W.

Instrument size: 190 * 190 * 380 mm Instrument weight: 3.94kg

Packaging size: 310 * 290 * 460mm Packaging weight: 6.95kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Complete set of instruments
