Level 0.5 Touch Screen Gelatin Strength Tester ST-16A Range 200N Schedule 300mm

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRange | 200N(40KG) | Schedule | 300mm |
---|---|---|---|
Accuracy | Level 0.5 | Test Speed | 0.5-500mm/min (0.008mm/s-8.33mm/s) Can Be Set Arbitrarily |
Packaging Size | 590*460*820mm | Power Supply | 220V, 50Hz (or 110V, 60Hz) |
Highlight | Gelatin Strength Tester,200N Gelatin Strength Tester,Touch Screen Gelatin Strength Tester |

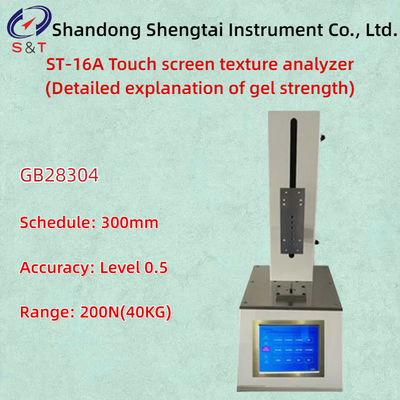

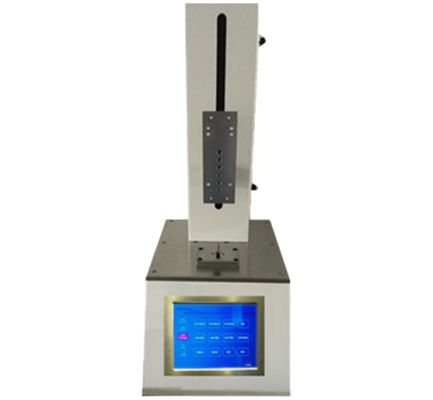

ST-16A Touch screen texture analyzer(Detailed explanation of gel strength)
The ST-16A touch screen texture analyzer can be used to test the strength values of gel such as meat paste, jelly, protein, gelatin, carrageenan, agar, agar, superabsorbent resin, high molecular hydrogel, butter, cream, fish balls, dairy products, oil field polymers, or force values under preset conditions.
This instrument is easy to operate, does not require complex training, has one click operation, and real-time automatic display of graphs and results.
Technical feature:
● Microcomputer control, menu style interface, PVC operation panel, and large LCD display.
● Multiple functional operations such as parameter setting, viewing, clearing, and calibration can be performed
● Perform statistical analysis and calculation on grouped samples, and provide the maximum and minimum values
● The system supports both tensile and compressive testing modes, and the speed can be freely set
Applicable standards:
● QB/1996 "Bone Glue"
● QB1997 "Photographic Gelatin"
● GB28304 "Ke De Ran Jiao"
● QB2354 "Medicinal Gelatin"
● QB/T1995 "Industrial Gelatin"
● GB/T36187 "Frozen Fish mince"
● GB6783 "Food Additive Gelatin"
● GB13731 "Medicinal Gelatin Hard Capsules"
Technical Parameter:
Measurement unit | N,kg,Bloomg,g/cm3 |
Test speed | 0.5-500mm/min (0.008mm/s-8.33mm/s) can be set arbitrarily |
Length unit | mm |
Accuracy | Level 0.5 |
Range | 200N(40KG) |
Function | gel strength value or maximum value |
Schedule | 300mm |
Fixture configuration |
Cylindrical probe diameter 12.700 ± 0.010mm (for pharmaceutical use) |
Cylindrical probe straight 0.5cm GB28304 | |
Spherical probe 5mm GB/T36187 | |
Standard test bottle |
capacity=150ml Inner meridian=59mm Height=85mm Compliant with GB6783 |
Power supply | 220V, 50Hz (or 110V, 60Hz) |
Packaging size | 590*460*820mm |
Packaging weight | 32.3kg cardboard box |
● Measurement unit: N,kg,Bloomg,g/cm3
● Test speed: 0.5-500mm/min (0.008mm/s-8.33mm/s) can be set arbitrarily
● Length unit: mm
● Accuracy: Level 0.5
● Range: 200N(40KG)
● Function: gel strength value or maximum value
● Schedule: 300mm
● Fixture configuration:
Cylindrical probe diameter 12.700 ± 0.010mm (for pharmaceutical use)
Cylindrical probe straight 0.5cm GB28304
Spherical probe 5mm GB/T36187
● Standard test bottle: capacity=150ml; Inner meridian=59mm; Height=85mm; Compliant with GB6783
● Pharmaceutical gel strength with low-temperature thermostatic device (optional)
● Power supply: 220V, 50Hz (or 110V, 60Hz)
● Packaging size: 590*460*820mm
● Packaging weight: 32.3kg cardboard box
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
