HD206 Three Observation Head 360 ° Rotating Stereoscopic Microscope Working Distance 90-110mm

  • HD206 Three Observation Head 360 ° Rotating Stereoscopic Microscope Working Distance 90-110mm
  • HD206 Three Observation Head 360 ° Rotating Stereoscopic Microscope Working Distance 90-110mm
  • HD206 Three Observation Head 360 ° Rotating Stereoscopic Microscope Working Distance 90-110mm
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument
Model Number HD206
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Distance 90-110mm Handwheel Focusing Range 65mm
Workbench Black And White Board 95mm Round Column Size 32mm
L Mm 250mm Upper Light Source LED Oblique Light Source
Lower Light Source LED Transmitting Background Light Base 200×255×60mm
Highlight

360 ° Rotating Stereoscopic Microscope

,

Three Observation Head Stereoscopic Microscope

,

90-110mm Stereoscopic Microscope
Leave a Message
Product Description

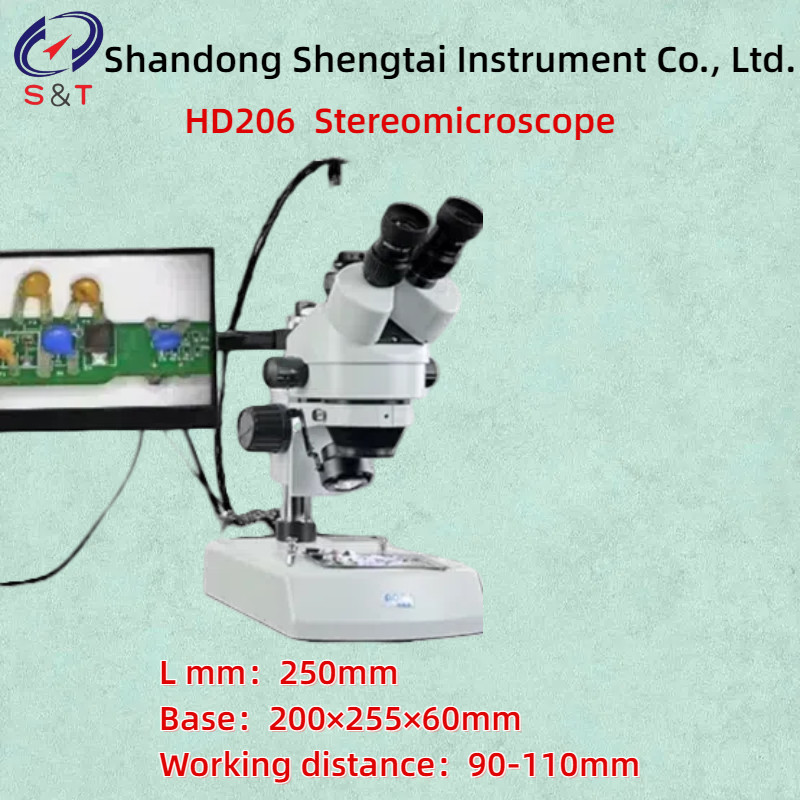

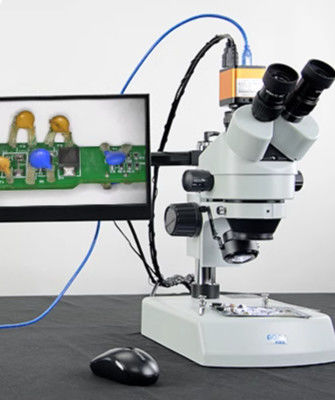

HD206 Stereomicroscope

Product parameters:

Product model HD206
Magnification factor Optical 7-45X continuous doubling, electronic 20-220X continuous doubling
eyepiece High eye point and wide field of view, eyepieceWF10X/20mm
Observation head Three way observation head, tilted at 45 °, capable of 360 ° rotation, bilateral field of view ± 5 adjustment
Focusing bracket Focusing frame, adjustable tension of focusing handwheel, adjustable lifting range 50mm.
CCD interface 0.5X Miniature mirror, C-type camera interface (international standard C-interface)
Working distance 90-110mm
Handwheel focusing range 65mm
Workbench black and white board 95mm
Round column size 32mm
L mm 250mm
Upper light source LED Oblique light source
Lower light source LED Transmitting background light
base 200×255×60mm

HD206 Three Observation Head 360 ° Rotating Stereoscopic Microscope Working Distance 90-110mm 0

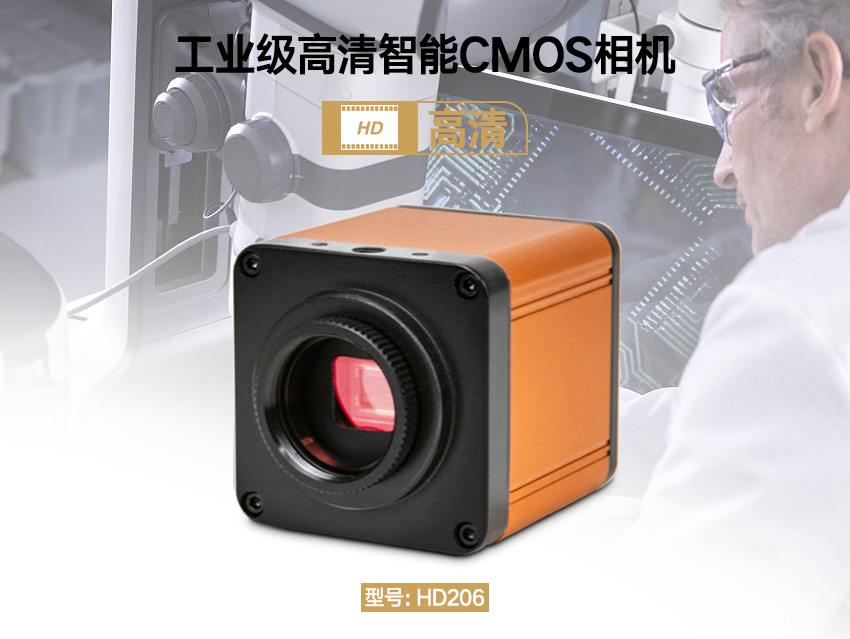

Camera parameters equipped with stereo microscope:

Supporting features Take photos, record crosshairs, connect to a computer for measurement
Output resolution HD output 1920×1080P
Chip size 1/2.7”
Exposure method Line by line exposure
output color Color/Black and White
Output frame rate 60FPS/s
operating system V2.0 Industrial processing software
External interface HDMI.USBX1
Power interface DC12V
Connection method High definition transmission display, USB connected to computer
Connect to computer function

①Image photography ②Image measurement ③Image recording ④ Export document

⑤ Depth of field extension ⑥ Image annotation

⑦ RGB adjustment ⑧ Black and white image

HD206 Three Observation Head 360 ° Rotating Stereoscopic Microscope Working Distance 90-110mm 1HD206 Three Observation Head 360 ° Rotating Stereoscopic Microscope Working Distance 90-110mm 2
