Automatic Diesel Solidifying Point Cold Filter Point Tester Test Samples 1

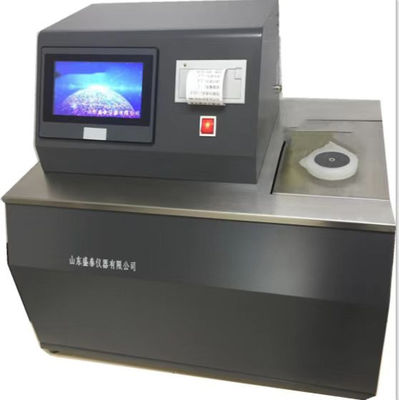

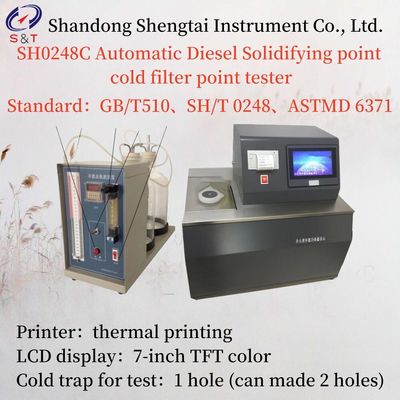

SH0248C Automatic Diesel Solidifying point cold filter point tester

SH0248C Diesel oil solidifying point cold filter point tester is based on national standard national standard GB/T510 "solidifying point measurement of oil products and on the basis of SH/T 0248, adopt modern advanced technology, mechanical, optical, electronic and computer technology into an organic whole, can automatically finish the solidifying point and cold filtration point of petroleum products testing, the instrument adopts photoelectric detection technology, automatic inclined glass tube method, imported compressor refrigeration system to ensure that meet the requirements of refrigeration and depth.

ASTMD 6371 Cold Filter Plugging Point &solidification point Tester

ASTM D97& ASTM D6371Solidification point &Cold Filter Plugging Point Tester

Instrument features:

● Embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

● Color touch screen;The test results can be stored;You can view historical data;

● Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.

● LCD display: 7-inch TFT color

●Refrigeration mode: fully enclosed and efficient refrigeration compressor.

● Cold trap for test: 1 hole (can made 2 holes).

● Detection method: spectral detection

● Can store 199 groups of historical data, convenient query;

● At the same time can be equipped with U disk output function.

● Printer: thermal printing

● After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.

● Test interval: cold filter point 1℃ freezing point 2℃.

● Temperature sensor: imported PT 100 probe

● Refrigeration medium: metal bath

★ Laser printer interface, can be linked to HP1108 laser printer (optional)

★ With date password setting function.(optional)

★ With TCP network transmission function(optional)

★ Can be uploaded and connected to LIMS system(optional)

★ Can expand the memory of the microcomputer to 16G(optional)

Technical parameters:

Packing list
