Electric Furnace Method Carbon Residue Tester Ac220±10%V 50hz
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | AC(220±10%)V, 50Hz | Heating Mode | Electric Furnace |
|---|---|---|---|
| Heating Power | Two Gears, Main Heating And Auxiliary Heating, 300W＋600W＋1000W | Temp. Control Range | (0～520)ºC |
| Temp. Control Accuracy | ±5ºC | Test Furnace | One Furnace With Four Holes |
| Ambient Temperature | Room Temperature～35ºC | Relative Humidity | ≤85% |
| Maximum Power Consumption | 2000W | Dimension | 350mm×360mm×365mm |
| Weight | 29kg | ||
| Highlight | electric furnace method carbon residue tester,220v carbon residue tester,digital electric furnace carbon residue tester |
||
Product Description

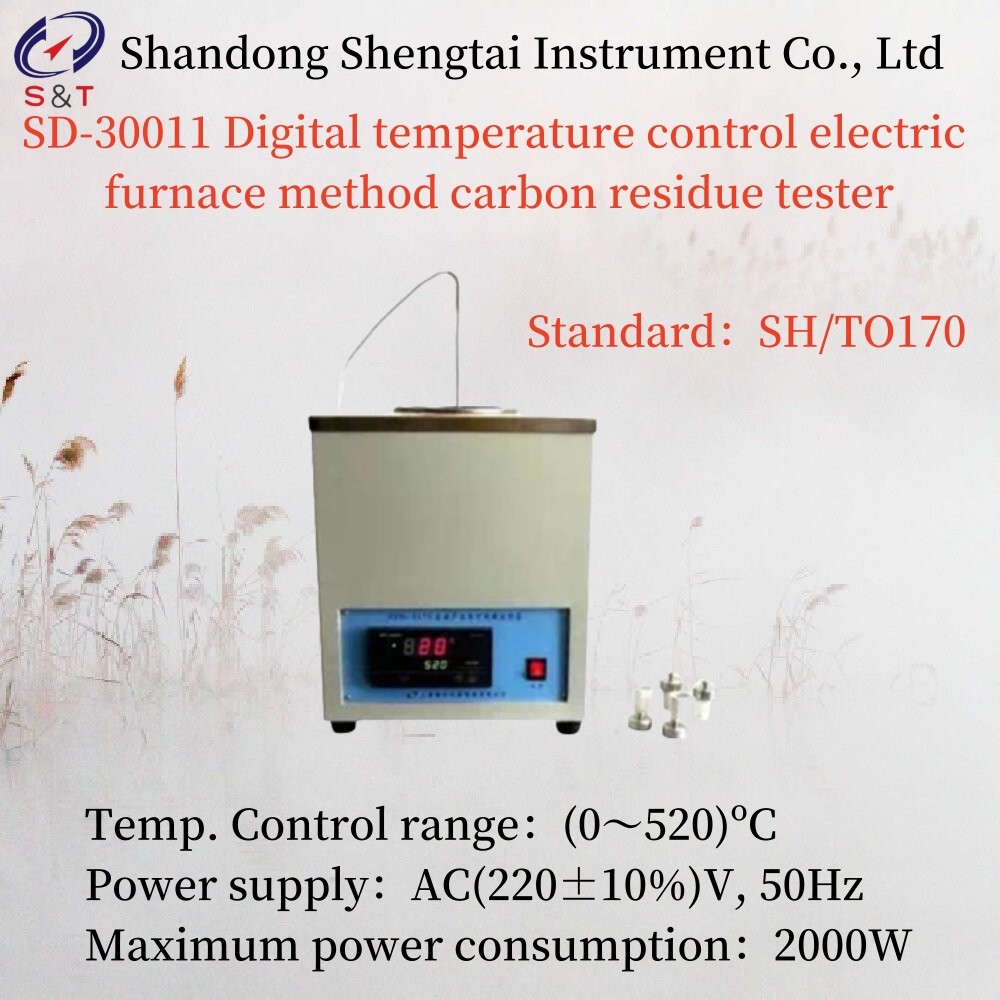

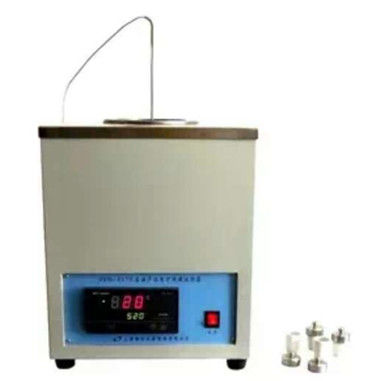

SD-30011 Digital temperature control electric furnace method carbon residue tester
SD30011 Digital electric furnace carbon residue meter is designed and manufactured according to the requirements of the industry standard SH/TO170 "Carbon residue determination method (electric furnace method)" of the People's Republic of China. It is suitable for the determination of carbon residue of lubricating oil, heavy liquid fuel or other petroleum products according to the test method of SH/TO170 standard.
Carbon Residue Tester (Electric Furnace Methods)
Electric Furnace Carbon Residue Tester
Carbon Residue Apparatus for Testing The Carbon Residue of a Fue
Electric Furnace Method Carbon Residue Tester
Electric Furnace Method Carbon Residue Tester
I. Main technical features
1. the instrument adopts integrated structure design, heating furnace and controller constitute a complete whole, novel and beautiful.
2. Adopt digital temperature controller, with main heating and auxiliary heating functions, according to the need of auxiliary heating can be automatically controlled, but also manual control, easy to use.
3. The temperature of the heating furnace can reach 520℃, and the temperature control accuracy can reach ±5℃ in the full temperature control range, which meets the requirements of the test.
3. the instrument for the table structure, a furnace of four holes, can be placed at the same time four samples at the same time test, test efficiency is high.
II. Main technical parameters and indicators
| Power supply | AC(220±10%)V, 50Hz |
| Heating mode | Electric furnace |
| Heating power | two gears, main heating and auxiliary heating, 300W＋600W＋1000W |
| Temp. Control range | (0～520)ºC |
| Temp. Control accuracy | ±5ºC |
| Test furnace | One furnace with four holes |
| Ambient temperature | Room temperature～35ºC |
| Relative humidity | ≤85% |
| Maximum power consumption | 2000W |
| Dimension | 350mm×360mm×365mm |
| Weight | 29kg |
Packing List
| S/N | Name | Quantity | Unit | Remarks |
| 1 | host | 1 | set | |
| 2 | steel bath cap | 4 | piece | |
| 3 | Porcelain crucible | 4 | piece | |
| 4 | Crucible cover | 4 | piece | |
| 5 | Crucible tongs | 1 | piece | |
| 6 | power cord | 1 | piece | |
| 7 | fuse tube | 1 | piece | 10A |
| 8 | Operating instruction | 1 | copy | |
| 9 | packing list | 1 | copy | |
| 10 | Certificate of approval | 1 | copy |
SD30011 Digital electric furnace carbon residue meter is designed and manufactured according to the requirements of the industry standard SH/TO170 "Carbon residue determination method (electric furnace method)" of the People's Republic of China. It is suitable for the determination of carbon residue of lubricating oil, heavy liquid fuel or other petroleum products according to the test method of SH/TO170 standard.
