Electric Diesel Manual Closed Flash Point Tester

  • Electric Diesel Manual Closed Flash Point Tester
  • Electric Diesel Manual Closed Flash Point Tester
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument
Certification GB261-2008、ASTM D93、ISO-2719、ASTM D93、Pensky-Marten closed cup method
Model Number SD261
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Power Supply AC220V±10%, 50Hz Heating Device Heating Power From 0 ~ 600W Continuously Adjustable
The Sample Heating Rate 1 ~ 12℃/ Min Inner Diameter 50.7 ~ 50.8 Mm
Depth 55.7 ~ 56.0 Mm Test Capacity Notch Depth 33.9 ~ 34.3 Mm
Test Capacity About 70 Ml IgnitioFirearm Aperturen Source 0.8mm
Thermometer Bar Mercury Thermometer, In Line With GB/T 261-2008 Standard Requirements.
Highlight

Manual Closed Flash Point Tester

,

Electric Diesel Flash Point Tester
Leave a Message
Product Description

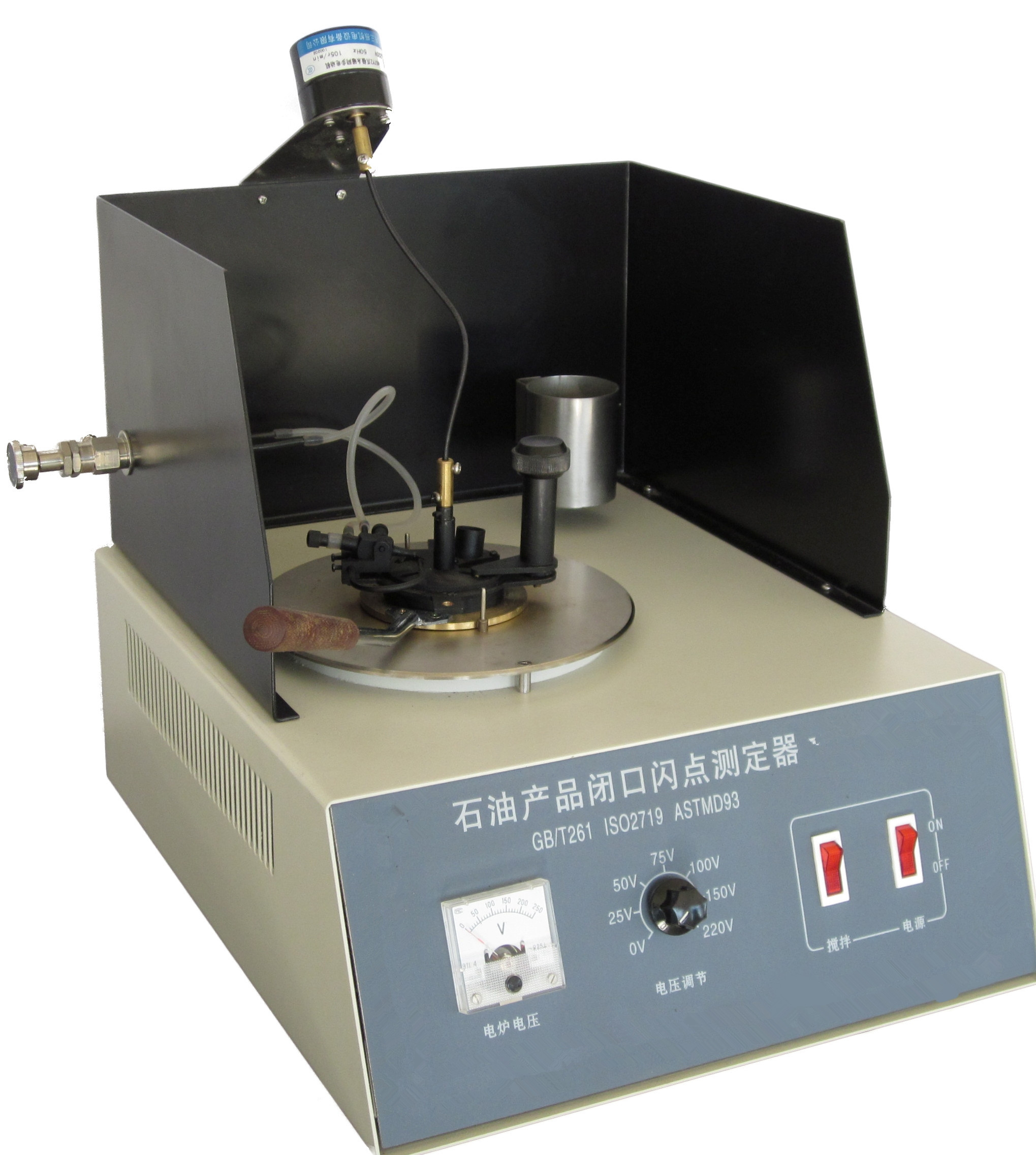

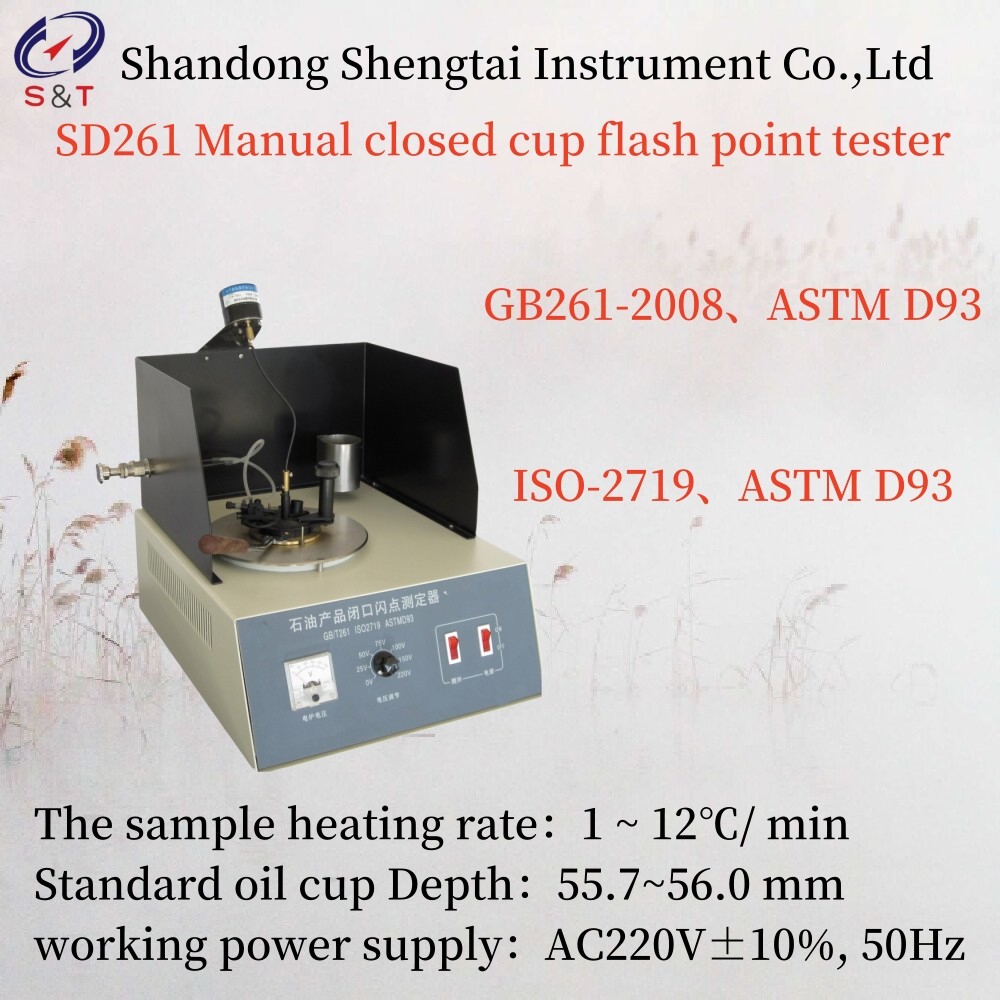

SD261 Manual closed cup flash point tester

SD261 closed mouth flash point meter is designed and manufactured in accordance with the requirements of the national standard GB/T 261-2008 "determination of flash point Binsky-Martin closed mouth cup method". It is suitable for the determination of the flash point of petroleum product samples with a flash point above 40℃ by the method specified in the GB/T 261-2008 standard.

GB/T 261-2008manual Binsky-Martin closed cup flash point tester for laboratory testing

GB/T 261-2008manual Binsky-Martin closed cup flash point tester for oil testing

Portable Manual Binsky-Martin Closed Cup Flash Point Tester Price

Product model SH105B
Test sample Petroleum,electric power,chemicals,products
Compliance with standards GB261-2008,ASTM D93 Conforming to ISO-2719,ASTM D93,Pensky-Marten closed cup method
Simple technical features or parameters Air source ignition, manual timing and visual observation

Electric Diesel Manual Closed Flash Point Tester 0

I. Main technical features

Heating power continuous, stepless adjustable.

II. Main technical parameters and indicators

Working power supply AC220V±10%, 50Hz.
Heating device heating power from 0 ~ 600W continuously adjustable.
The sample heating rate 1 ~ 12℃/ min.
Standard oil cup

Inner diameter: 50.7 ~ 50.8 mm.

Depth: 55.7 ~ 56.0 mm.

Test capacity notch depth: 33.9 ~ 34.3 mm.

Test capacity: about 70 ml
Ignition device

ignition source: gas

Firearm aperture: 0.8mm
Thermometer bar mercury thermometer, in line with GB/T 261-2008 standard requirements.

Packing list:

The host 1
Oil cup 1
Thermometer 1
Instructions 1
Certificate warranty card 1



Customers need to provide their own: coal gas source and coal gas source required pressure reducing valve

Electric Diesel Manual Closed Flash Point Tester 1
