LED touch display Pesticide Specific Rotation meter Tester Standard NY/T1860.18

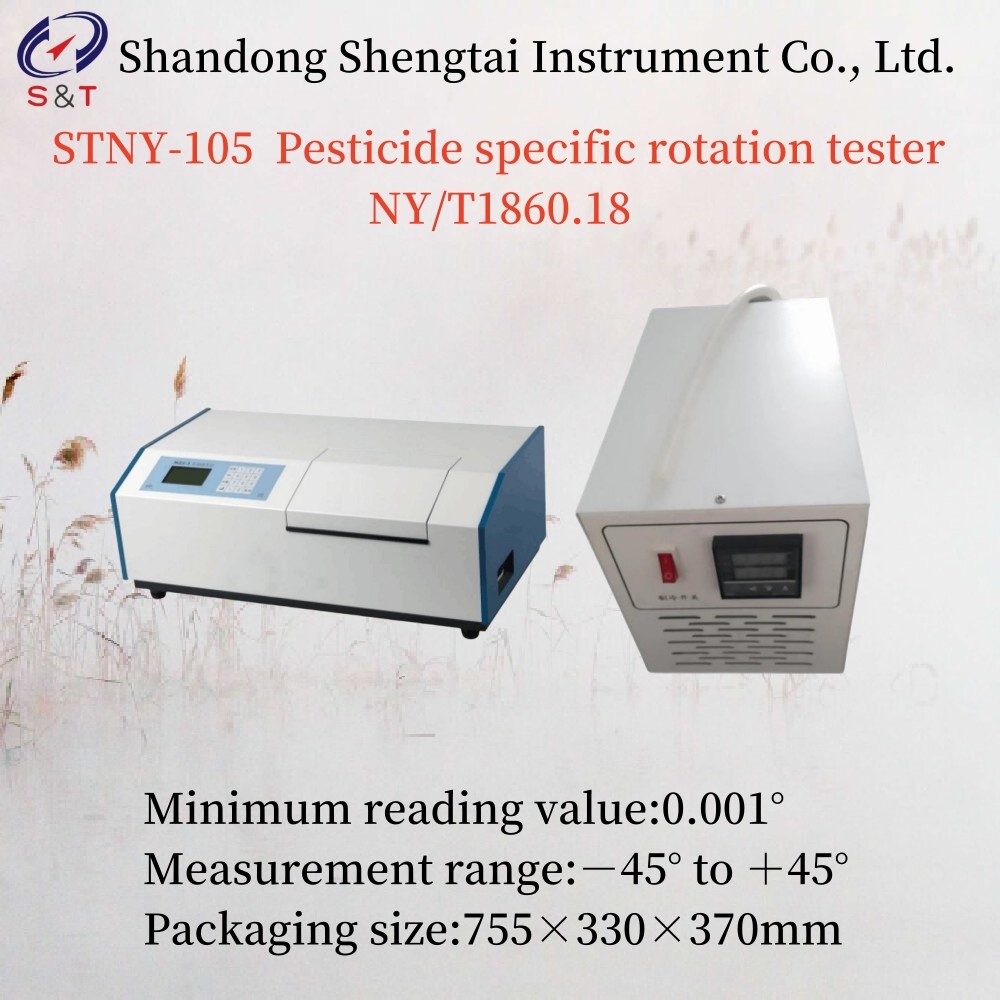

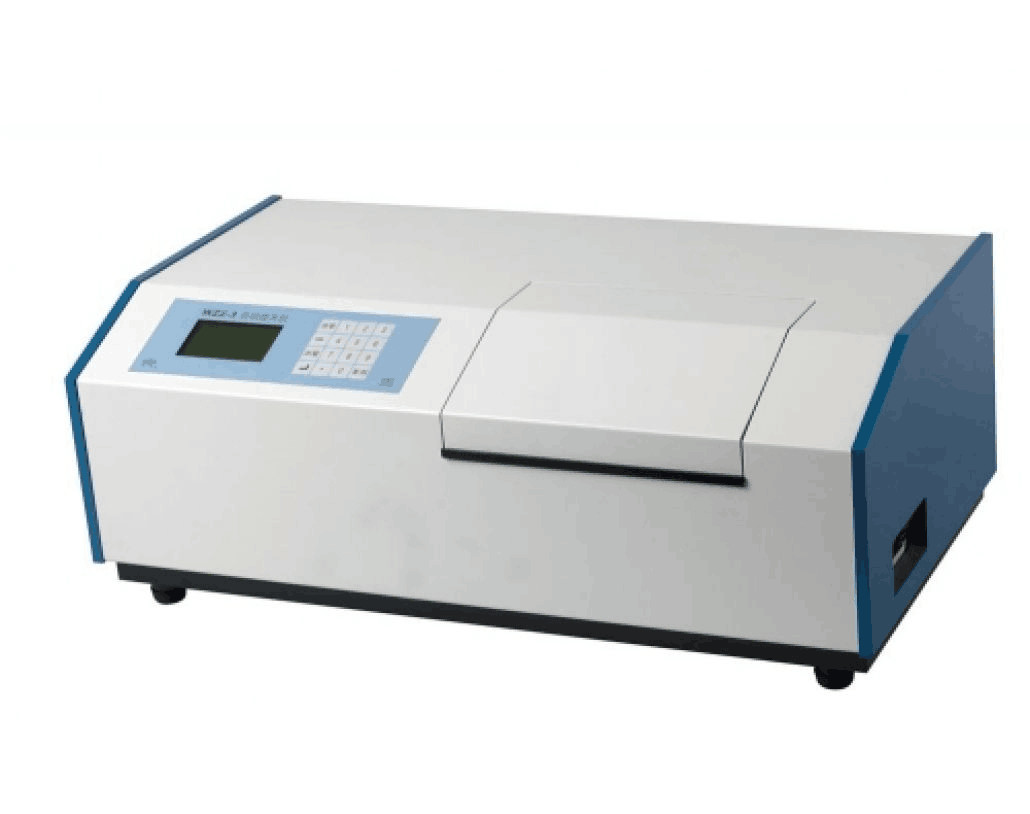

STNY-105 Pesticide specific rotation tester

The STNY-105 pesticide specific rotation meter is designed and manufactured in accordance with the NYT 1860.18-2010 Guidelines for Testing the Physical and Chemical Properties of Pesticides Part 18: Specific Rotation Method. It is a specialized instrument for measuring the specific rotation of pesticides.

Specific optical rotation: The optical rotation measured by a specific wavelength of polarized light passing through a 1dm tube and a 1g/L liquid of light substance at a certain temperature T is called the specific optical rotation at that wavelength and temperature.

Instrument features:

Adopting photoelectric detection and automatic servo mechanism control, digital display reading, capable of measuring optical rotation and specific rotation, in compliance with NY/T1860.18 standard

Main technical parameters:

Measurement range:－45° to ＋45°

Minimum reading value:0.001°

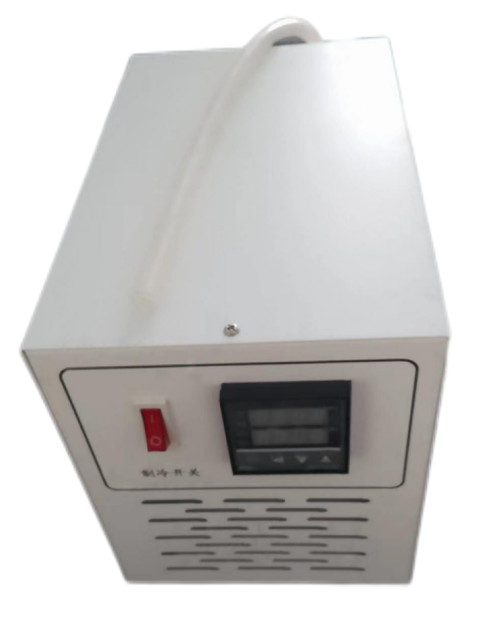

Constant temperature water bath:10 — 40℃

Accuracy:± (0.01°+measured value x 0.05%)

Repeatability (maximum deviation):≤0.002 °

Equipped with test tubes:constant temperature rotary tubes

External dimensions:600×320×220mm, mass 30kg

Packaging size:755×330×370mm

Packing list

Main technical parameters:

Measurement range:－45° to ＋45°

Minimum reading value:0.001°

Constant temperature water bath:10 — 40℃

Accuracy:± (0.01°+measured value x 0.05%)

Repeatability (maximum deviation):≤0.002 °

Equipped with test tubes:constant temperature rotary tubes

External dimensions:600×320×220mm, mass 30kg

Packaging size:755×330×370mm
