ST213A/B/C Automatic Compaction Density Tester Pharmaceutical Testing Instruments

  Product Overview

ST213A/B/C automatic compaction density tester is designed and manufactured in accordance with the technical requirements and relevant regulations of the 2020 Pharmacopoeia 0993 compaction density determination method. It is mainly suitable for measuring the compaction density of powders.

Working principle: The vibrating density tester fixes a powder measuring cylinder on a mechanical vibration device, and the vibration motor drives the mechanical vibration device to vibrate up and down. The graduated test tube containing powder vibrates rhythmically with the mechanical vibration device. As the number of vibrations increases, the powder in the measuring cylinder gradually solidifies. After the set number of vibrations is reached, the mechanical vibration device stops vibrating and reads the volume of the graduated test tube, According to the definition of density, the density of the compacted powder is determined by dividing the mass by the volume.

This instrument complies with the specifications of USP (United States Pharmacopoeia), BP (British Pharmacopoeia), and EP (European Pharmacopoeia), as well as GB/T 5162-2006/ISO3953:193 (Determination of Metal Powder Vibration Density). The instrument covers various indicators in the national standard GB/T 5162-2006/ISO3953-1993.

Key words:Automatic compaction density tester

Automatic loose density meter

Main technical parameters

● Display method: Touch screen display

● Compliant with standards: 2020 Chinese Pharmacopoeia USP (US Pharmacopoeia), BP (UK Pharmacopoeia), and EP (European Pharmacopoeia)

●Weight of the tested sample: ≤ 500.00 grams

●Volume of compacted sample: ≤ 250.00 milliliters

●Single vibration frequency: ≤ 99999999 times (specified as 3000 times in the national standard). Less than 1 error per 10000 occurrences

●Vibration frequency: maximum 400 revolutions per minute (continuously adjustable from 0 to 300 revolutions per minute, as specified by the US Pharmacopoeia at 300 revolutions per minute).

● Vibration amplitude: maximum 15mm (integer adjustable from 1mm to 15mm, specified as 3mm in the national standard; specified as 14mm in the US Pharmacopoeia)

●Repeatability error: ≤ 1%.

●Testing station: 1/2/3

●Motor allowable torque: 0.38 N.m

●Printing function: Thermal printing

●Power supply: AC 200V ± 10% 50Hz, 35W.

Other requirements: The environment should be clean and free of smoke and dust, and there should be no mechanical vibration or electromagnetic interference sources in the surrounding area

Selection of measuring cylinder

The powder density tester is equipped with three different specifications of measuring cylinders: 25ml, 50ml, and 100ml (see attachment). To improve the accuracy of testing, please refer to the weight (m) and loose density of the tested powder( ρ) Choose a suitable measuring cylinder.

Note: To improve testing accuracy, please choose a measuring cylinder with a smaller volume

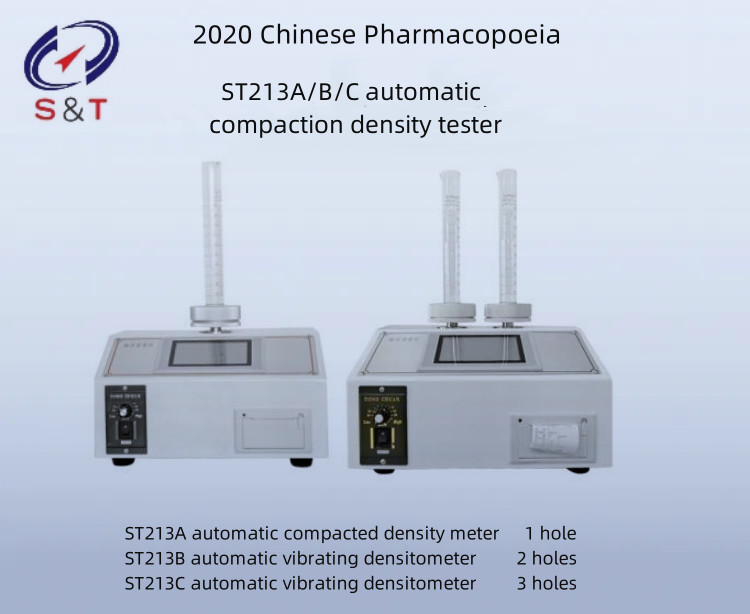

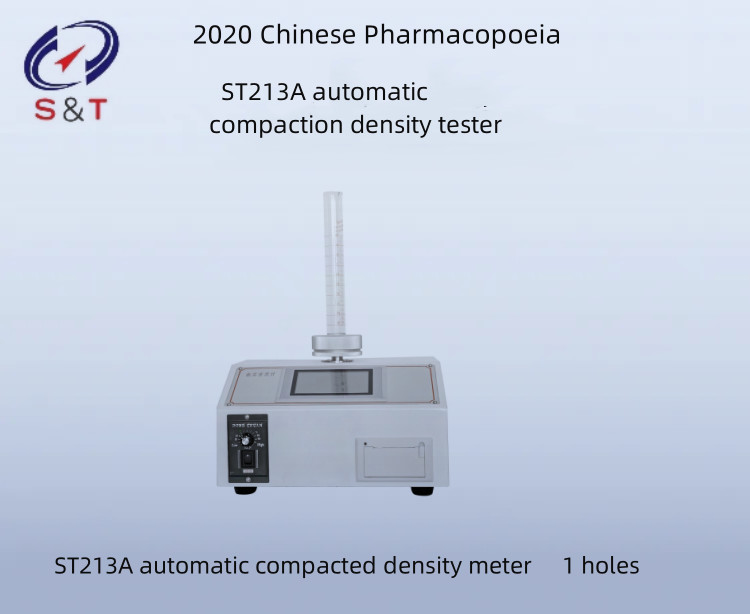

ST213A automatic compacted density meter 1 hole

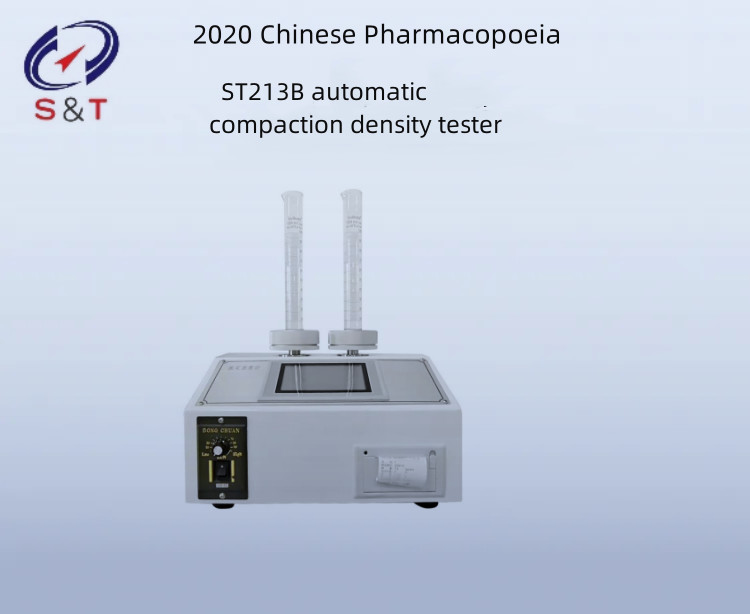

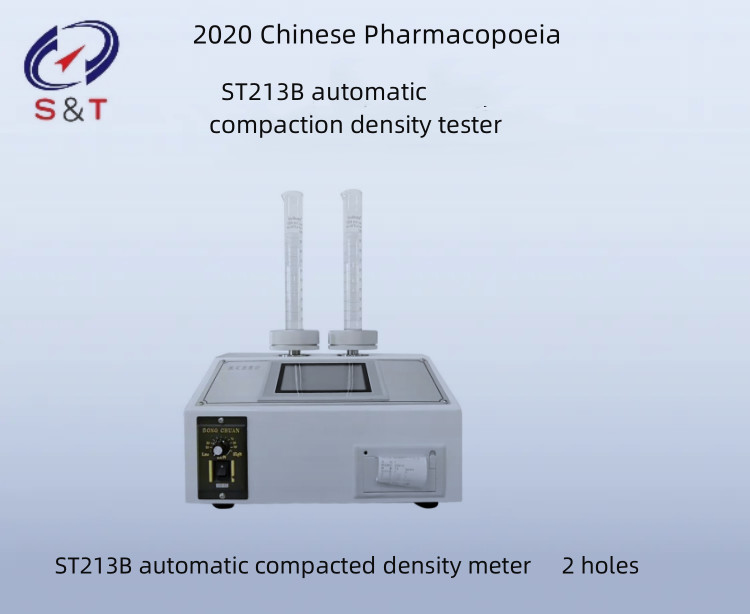

ST213B automatic vibrating densitometer 2 holes

ST213C automatic vibrating densitometer 3 holes

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
