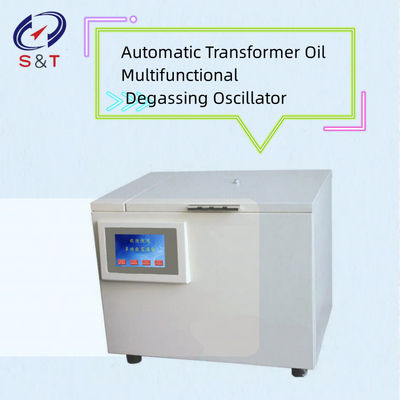

Multifunctional Transformer Oil Testing Equipment Degassing Vibration Instrument

Product Description:

 Transformer oil testing equipment is a specialized device designed for testing and analysing transformer oil. It is equipped with four 250ml triangular flasks and 8 100ml syringes, allowing for an efficient and comprehensive testing process. The power supply of this equipment is AC220V/50Hz, and its weight is 35kg. It features an oscillation amplitude of 35mm, and a large screen LCD display for clear readings. Moreover, it has a temp range of room temperature-100℃, a timing range of 0.0s ~ 999.9s, and a temp accuracy of ±1℃. This equipment is essential for accurately assessing the quality of transformer oil and ensuring the best performance of the transformer.

Features:

• Product Name: Automatic Multi-Function Shaker For Oil Liquid Test
• Display: Large Screen LCD Display
• Power Supply: AC220V/50Hz
• Overall dimension: 500mm × 350mm × 375mm
• Temperature control range: Room Temperature ~100℃;
• Automatic Constant Temperature Timing Heating Oscillator Multifunctional Degassing Oscillation Tester
• Formula 2: after constant temperature at 50℃ for 10 minutes, oscillate for 5 minutes and keep the constant temperature at 75℃

Technical Parameters:

Applications:

The Shengtai Instrument SH121 is an Automatic Multi-Function Shaker For Oil Liquid Test with a brand name of Shengtai Instrument, model number SH121 and place of origin of China. Certified by the factory, the minimum order quantity is 1 and the price is available through email communication. Packaging details include wooden and the delivery time is 5-7 days. Payment terms are air or shippment and the supply ability is 1. The temperature control range is from room temperature to 100℃ while the overall dimension is 500mm × 350mm × 375mm. The timing range is 0.0s ~ 999.9s;, with Automatic Multi-Function Shaker For Oil Liquid Test .Additionally, the temperature sensor is PT100 platinum resistance and power supply is 220V AC 50HZ. With a weight of 35Kg and self-defined meaning of 20~99 minutes to set the oscillation, static time;, the Shengtai Instrument SH121 is an ideal solution for oil liquid testing.

Customization:

Introducing the Transformer Oil Testing Equipment from Shengtai Instrument. This top of the line testing equipment is perfect for transformer oil testing with a temperature control range of Room Temperature to 100℃ and a temperature sensor of PT100 platinum resistance. It also features an oscillation amplitude of 35mm and an overall dimension of 500mm × 350mm × 375mm. The product comes with a large screen LCD display and a sample quantity of 2 sets of capillary viscometers.

The Transformer Oil Testing Equipment is certified with Factory certification and has a minimum order quantity of 1. Price is available for email communication. Packaging is in wooden and delivery time is within 5-7Days. Payment terms are available for air or shippment and supply ability is 1.

For the best results in transformer oil testing, trust Shengtai Instrument's Transformer Oil Testing Equipment.

Support and Services:

We provide technical support and services for our Transformer Oil Testing Equipment, which includes:

• Installation and operation guidance
• Troubleshooting
• Maintenance and repair
• Calibration and testing
• Technical support and advice on usage

Packing and Shipping:

Transformer Oil Testing Equipment is packaged in a carton box, lined with bubble wrap for additional protection. It is then sealed with a tamper-evident security seal. Shipping is done through a reputable international carrier which delivers the equipment to its destination safely and securely.
