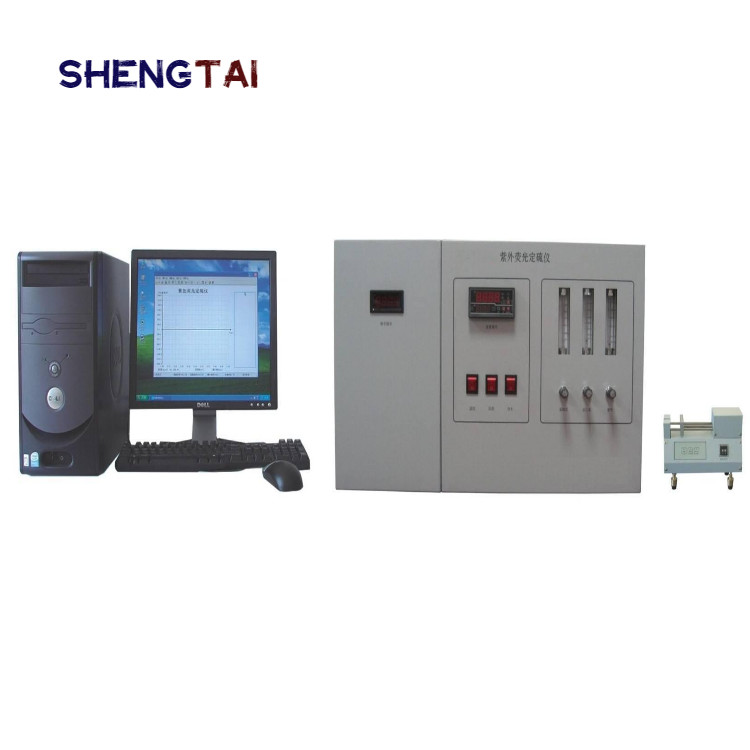

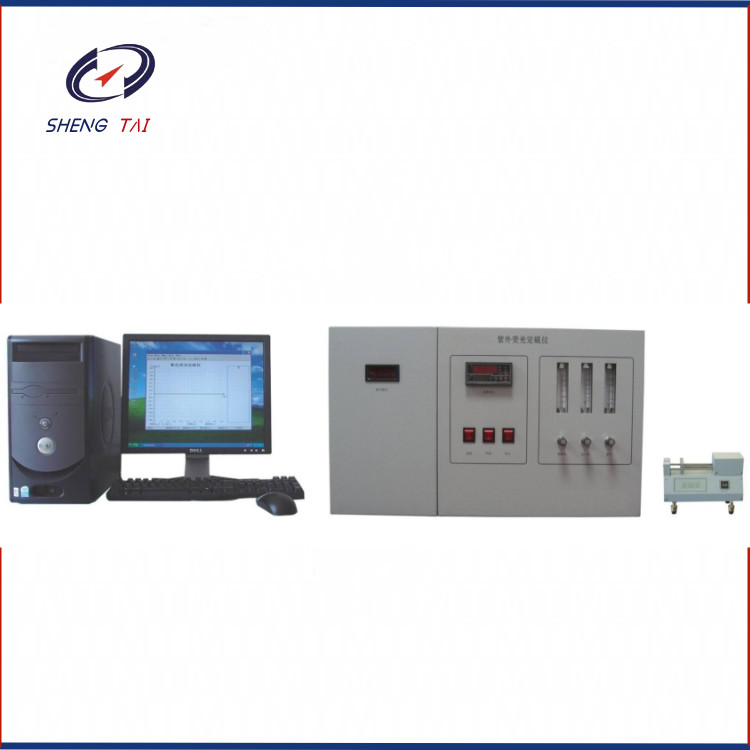

Crude Oil Sulfur Content Tester SH0689 Ultraviolet Fluorescence Sulfur Analyzer Petroleum Testing

The SH0689 UV fluorescence sulfur analyzer uses the UV fluorescence method to determine the total sulfur content, improving its ability to resist impurity interference and avoiding the cumbersome operation of the titration cell caused by the electric quantity method, greatly improving the sensitivity of the instrument. The key components are imported components, ensuring reliable performance of the entire machine. The total sulfur content analysis instrument is developed by combining the UV fluorescence principle with computer technology. Comply with SH/T 0689 and ASTM D5453 standards, suitable for determining sulfur content in liquids, solids, and gases. Widely used in departments such as power, petroleum, chemical, commodity inspection, universities, and scientific research. It is applicable to the determination of total sulfur content in crude oil, distillate oil, liquefied petroleum gas, plastics, Petrochemical, food, etc.

Principle: After the sample is introduced into the high-temperature cracking furnace, the sample undergoes a cracking oxidation reaction. At a high temperature of around 1000 ℃, the sample is completely gasified and undergoes oxidative cracking, with sulfides quantitatively converted into sulfur dioxide. The reaction gas is carried by the carrier gas, and the water is removed from it through a membrane dryer before entering the reaction chamber. Sulfur dioxide is exposed to specific wavelengths of ultraviolet radiation, which absorbs this radiation and redirects some electrons towards high-energy orbitals. Once the electrons return to their original orbits, the excess energy will be released in the form of light and detected and received by a Photomultiplier tube at a specific wavelength. The emitted fluorescence is completely specific to sulfur and is proportional to the sulfur content in the original sample. After being amplified by a microcurrent amplifier and processed by a computer, it can be converted into an electrical signal proportional to the light intensity. By measuring its size, the sulfur content of the corresponding sample can be calculated.

Main features

1. Computer controlled operation can achieve human-machine dialogue, and data and peak shapes can be automatically stored and printed.

2. The operating software can be connected to the LIMIS system to achieve automatic data transmission.

3. The instrument adopts a new type of quartz cracking tube, which can increase the injection volume and reduce measurement errors

4. The Computer fan is automatically turned on and off, which saves time and labor by eliminating the trouble of waiting for the sample to be turned off.

5. The darkroom system adopts new foreign technology, and key components use imported detection components to improve the detection accuracy of the instrument

6. The instrument adopts imported membrane dryer to absorb water, which saves the trouble of replacing Magnesium perchlorate frequently and reduces the problem of air leakage.

7. The use of computer control for temperature has improved the temperature control accuracy of the instrument and is not prone to overheating.

8. Replacing water cooling with air cooling saves water resources.

9. You can retrieve existing calibration curves and calibrate them with standard samples for sample analysis.

• ASTM D5453 Ultraviolet Fluorescence UV Sulfur Analyzer
• Lab Testing Machine Widely Use for Sulfur Content in Diesel by UV Fluorescence (ASTM D5453)
• Sulfur Content in Diesel Oil Analyzer by UV Fluorescence
• ASTM D5453 D4629 Total Low Sulfur Content in Oil Test Machine
• ASTM D5453 Trace Sulfur Content Analyzer in Hydrocarbon Samples

Technical Parameters
