Principle of Titration Neutralization Method SH108 Oil Acid Number Tester Essential for oil refineries
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MODEL | SH108 | Power Supply | 220V±10%,50Hz±1% |
|---|---|---|---|
| Ambient Temperature | 10 ℃ ~ +30℃ | Accuracy | ±0.005mgKOH/g |
| Testing Range | 0.001~1.000mgKOH/g | Differential Power | 0.001mgKOH/g |
| Reconstruct Ability | 0.003mgKOH/g | Environmental Humidity | ≤80% |
| Power Rate | 300 W |
Product Description

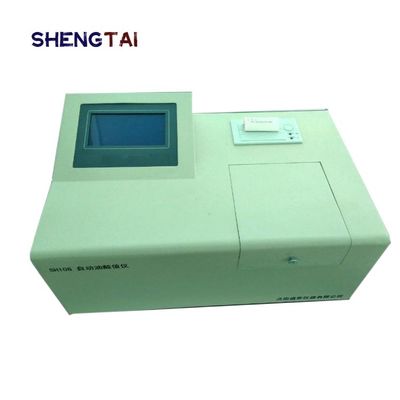

SH108 automatic oleic acid level meter complies with the requirements stipulated in the People's Republic of China standard GB/T 264 "Determination of the acid value of petroleum products" and GB7599, GB7299.The instrument adopts blue LCD large screen display, Chinese menu, no marker button.
Microcomputer automatic measurement, automatic printing, the test process to achieve computer automation, intuitive and simple operation.Using magnetic stirring, no noise, safe and reliable, compact size.It can meet the needs of oil refineries, power plants and scientific research units, and is one of the essential instruments for oil analysis and quality inspection.
| Product Name | SH108 oleic acid value tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | It can meet the needs of petroleum refineries, power plants, and scientific research institutions, and is one of the necessary instruments for oil analysis and quality inspection |
| Compliant with standards | The requirements specified in GB/T 264 "Determination of Acid Value of Petroleum Products" and GB7599, GB7299 |
| Simple technical features or parameters | Adopting the principle of titration neutralization method, automatic completion of liquid injection, titration, stirring, and determination of neutralization titration endpoint under microcomputer control |
Automatic Scientific Research Chemical Laboratory Oleic Acid Value Tester
Automatic Stirring Titration Detection Oleic Acid Value Tester
LCD Screen Oleic Acid Value Automatic Stirring Tester
Lab Test Instruments Oleic Acid Value Tester
Auto Extraction Method Transformer Oil Acid Value Tester
performance characteristics
1, Using the principle of titration and neutralization method, under the control of the microcomputer automatically complete liquid injection, titration, mixing, determination of neutralization and titration end point, LCD screen display the measurement results, and automatically print the measurement results.
The measurement process takes seven minutes.
2. Special reagent bottles are used to hold the extraction liquid and neutralizing liquid, and the reagent is isolated from the air during use to avoid the influence of volatilization and carbon dioxide in the atmosphere.
At the same time also play a role in protecting the operator.
3, Automatic acid value tester can choose a test of 6 oil samples.
Technical indicators
| Ambient temperature | 10 ℃ ~ +30℃ |
| Accuracy: | ±0.005mgKOH/g |
| Testing Range: | 0.001~1.000mgKOH/g |
| Differential power | 0.001mgKOH/g |
| Reconstruct ability | 0.003mgKOH/g |
| power rate | 300 W |
| Environmental Humidity: | ≤80% |
| Power Supply: | 220V±10%,50Hz±1% |
| Dimension :420 x 250 x 280 mm Weight: 10kg | |
| Required consumables | the instrument itself has a set of reagents, after the use of their own purchase or self-matching. |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | SH108 Automatic acid value tester | set | 1 | |
| 2 | Sample oil cup | piece | 3 | |
| 3 | Stir bar | piece | 3 | |
| 4 | Extract | piece | 1 | |
| 5 | Neutralization liquid | piece | 1 | |
| 6 | Power cord (250V, 6A) | piece | 1 | |
| 7 | Insurance tube (Φ 5 x 20, 10 a), | piece | 1 | |
| 8 | Printing paper | piece | 1 | |
| 9 | Needle (6#) | piece | 1 | |
| 10 | Needle (9#) | piece | 1 | |
| 11 | Silicone tube (inner hole Φ 2 x 1) | metre | 1 | According to the need by the user self-cutting |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
| Est. Time(days) | 6 | 20 | 30 | To be negotiated |
