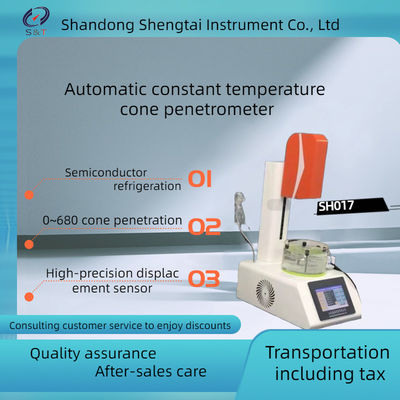

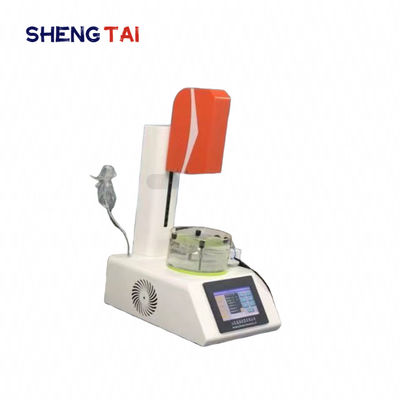

Lubricating grease (Vaseline) cone penetration test SH017 full-automatic constant temperature cone penetration tester

SH017 Automatic Constant Temperature cone/needle penetration Tester is designed and manufactured according to the technical requirements and relevant regulations of GB/T269 ASTM D217 and GB/T4509 ASTM D5 standards It is mainly suitable for testing the cone penetration of grease (or Vaseline).

The instrument can also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments can be widely used.

ASTM D217 Grease Cone Needle Penetration Meter Machine

ASTM D217 Standard Lubricating Grease Cone Penetration TesterSH017

ASTM D5 constant temperature Penetration Tester with Water Bath and Penetrometer

ASTM D217 Automatic Lubricating Grease Cone Penetration Tester

ASTM D217 Cone Penetration Analyzer for Lubricating Grease Penetration Analysis

I. Main technical features

Meet the standards: GB/T269 ASTM D217 and GB/T4509 ASTM D5

1. Upgraded to 7-inch TFT color LCD display;

2, constant temperature refrigeration method: external semiconductor refrigeration.

3, detection method: high precision displacement sensor.

4. After upgrade, 199 groups of historical data can be stored for easy query;

At the same time can be equipped with U disk output function

5. Standard micro printer for automatic measurement and printing

6. Data can be output from a USB flash drive

7. Measurement range: 0-680 cone penetration;

8. Resolution: 0.01 mm;

9. Cone penetration accuracy: ± 1 cone penetration;

10. Standard cone: 102.5 ± 0.05g, in accordance with the specifications of the national standard GB/T269

Standard needle: (2.5 ± 0.05) g (optional)

11. Others: Equipped with a cold light source for easy use and operation.

12. Storage method: The experimental results can be stored in 199 sets of historical data for easy query;

13. Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage

14. Output Format: The output format of the result USB drive is CSV or Excel.

15. Standard printing: Standard micro printer for automatic measurement and thermal printing

Cone selection

All lubricating greases, regular cone penetration, full size cone

Required for strict standard testing

• The 1/4 working cone penetration value of 7407 gear lubricating grease needs to be equipped with a 1/4 working tool and a 1/4 cone
• Extreme pressure composite lithium based lubricating grease SHT0535

The working cone penetration value needs to be equipped with a grease worker and a full size cone

Extending the working cone penetration value requires the provision of 100000 shearing machines and full size cones

• The working cone penetration value of universal lithium based grease GB7324 needs to be equipped with a grease operator and a full size cone
• Extending the working cone penetration value requires the provision of 100000 shearing machines and full size cones
• Extreme pressure lithium based grease GBT 7323 requires a grease operator and a full size cone for its cone penetration value
• Extending the working cone penetration value requires the provision of 100000 shearing machines and full size cones
• Aluminum based grease SHT0371 requires a grease operator and a full size cone for cone penetration values
• The working cone penetration value of SHT0378 composite aluminum based grease requires a grease operator and a full size cone
• Extending the working cone penetration value requires the provision of 100000 shearing machines and full size cones
• The working cone penetration value of calcium based grease GB491 needs to be equipped with a grease operator and a full size cone
• Extending the working cone penetration value requires the provision of 100000 shearing machines and full size cones
• Sodium based grease GB 492 requires a grease operator and a full size cone to be equipped with the working cone penetration value
• Extending the working cone penetration value requires the provision of 100000 shearing machines and full size cones
• Roller stability performance roller stability tester+cone penetration use

Needle selection

Asphalt penetration value GB/T4509 requires standard needles for asphalt penetration

Paraffin Needle Penetration GB/T 4985 Paraffin Needle Penetration Requires Paraffin Needle Installation

Packing list of fully automatic cone penetration tester

Fully automatic penetrometer equipped with standard needle and sample box
