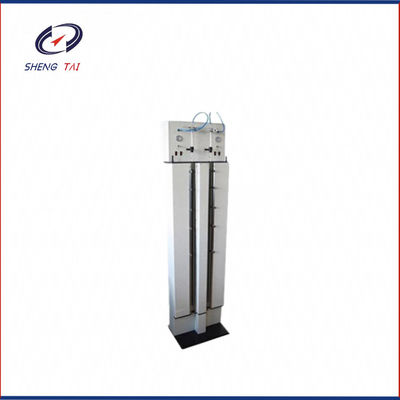

SD11132 Volume Fraction Detection Instrument For Aromatic And Saturated Hydrocarbons In Petroleum Fractions

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SD11132
Minimum Order Quantity 1 Set
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SD11132 Power Supply Voltage AC220V±5%;50 Hz
Pressure Regulating Range Of Pressure Reducing Valve 0 ~ 400KPa Electric Oscillator Two Separate Control
UV Light Source Tube Length 1220mm, Wavelength 365±5nm Lighting 1220mm Long, Power 40W
Relative Humidity < 85% Ambient Temperature 5 ~ 35℃
High Light

Petroleum Aromatic Fraction Detection Instrument

,

Volume Fraction Detection Instrument AC220V

Leave a Message
Product Description

SD11132 Liquid petroleum products hydrocarbon meter is in accordance with the law of the People's Republic of China standard GB/T 11132-2002 "hydrocarbon liquid petroleum products determination method (fluorescent indicator adsorption method)" the requirements stipulated in the design and manufacture, apply to approach, as stipulated in the standard GB/T 11132 main hydrocarbon in liquid petroleum products with fluorescent indicator displayed on the silica gel adsorption column, calculate the volume percentage, as the quality of the fuel oil such as engine fuel, aviation fuel measuring indicators.

This instrument is a special instrument for the determination of the volume fraction of aromatics, olefin and saturated hydrocarbons in petroleum fractions.



Hydrocarbon Measuring Instrument for Liquid Petroleum Products

SD11132 Liquid Petroleum Products Hydrocarbon Tester

SD11132 Hydrocarbon Tester for Liquid Petroleum Products

ASTM D1319 Liquid Petroleum Products Hydrocarbon Analyzer

ASTM D1319 Liquid Petroleum Oil Fia Hydrocarbon Analysis Equipment

Petroleum Products Hydrocarbon Tester ASTM D1319 by Fluorescent Indicator Adsorption Method

Liquid Petroleum Products Hydrocarbon Tester, ASTM D1319 Aromatics Content Olefins Content Tester



I. Main technical features

1, the instrument adopts the integrated vertical structure design, without installation, directly placed to the appropriate indoor position can be used.

2, the instrument is composed of gas circuit system, vibration part, scale and scale indicator, system lighting, ultraviolet detection and other components, from the silicone filling, vibration, sampling until the reading test results at one go.

3. Direct use of two imported precision inner diameter glass tube adsorption column (standard wall glass tube adsorption column is no longer matched), more convenient for users to use.

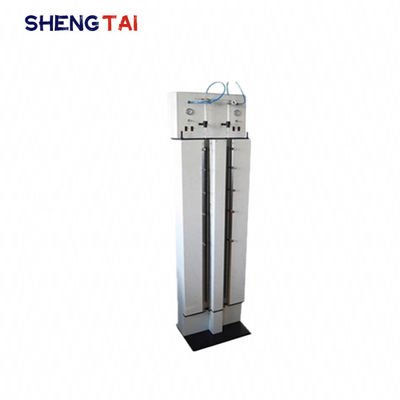

SD11132 Volume Fraction Detection Instrument For Aromatic And Saturated Hydrocarbons In Petroleum Fractions 0

II. Main technical parameters and indicators

Power supply voltage

AC220V±5%;50 hz.



Pressure regulating range of pressure reducing valve 0 ~ 400KPa
electric oscillator two separate control
UV light source tube length 1220mm, wavelength 365±5nm;
lighting 1220mm long, power 40W
Relative humidity < 85%
Ambient temperature 5 ~ 35℃
Gas supply method

nitrogen cylinder (or air compressor, compressed air cylinder);



Package size: 1850mm x 450mm x 450mm ( long x wide x high ) Weight: 85kg





III. Standard accessories

S/N Name Unit Quantity
1 Liquid petroleum product hydrocarbon analyzer host set 1
2 Precision inner diameter adsorption column set 2
3 silica gel bag 10
4 Fluorescent indicator gram 5
5 Stainless steel cleaning needle 1650mm piece 1
6 PU pipe (connecting steel cylinder or air compressor to the main engine) piece 1
7 Syringe 1mL piece 1
8 Glass grinding sealing plug (connecting gas pipe) piece 2
9 Glass flow outlet piece 2
10 Special clip (large) piece 2
11 Special small clip piece 2
12 instructions copy 1
13 Certificate of conformity warranty card copy 1

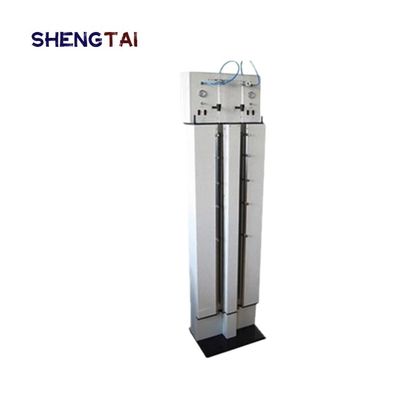

SD11132 Volume Fraction Detection Instrument For Aromatic And Saturated Hydrocarbons In Petroleum Fractions 1
