Carbon Residue Tester Digital Temperature Controlled Electric Furnace Methods SD-30011

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SD-30011
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SD-30011 Power Supply AC(220±10%)V, 50Hz
Temp. Control Range (0~520)ºC Temp. Control Accuracy ±5ºC
Ambient Temperature Room Temperature~ 35ºC Relative Humidity ≤85%
Maximum Power Consumption 2000W
High Light

SD-30011 Carbon Residue Tester


Digital electric furnace carbon residue meter

Leave a Message
Product Description

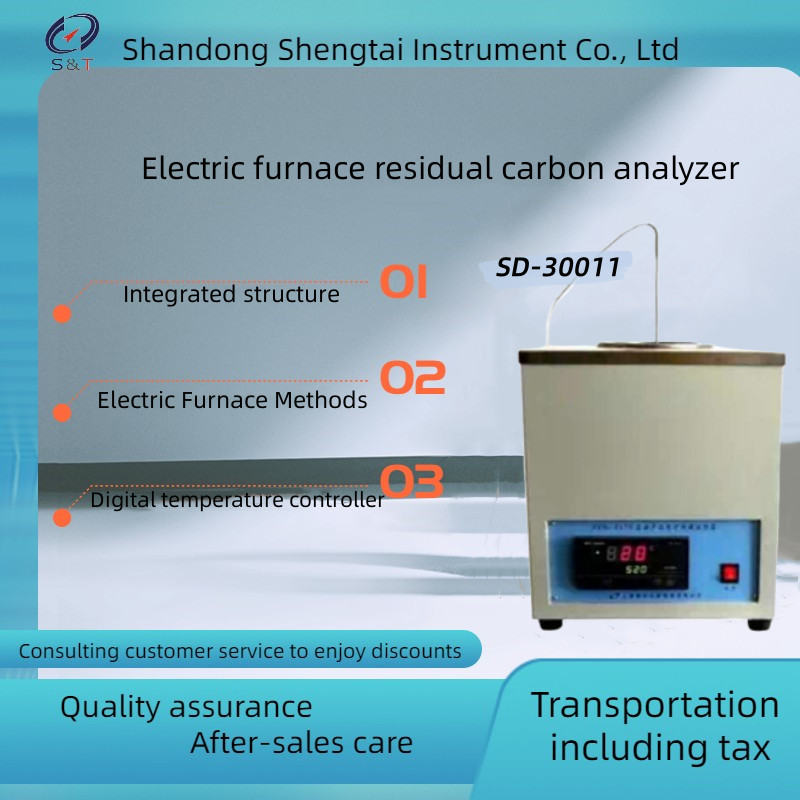

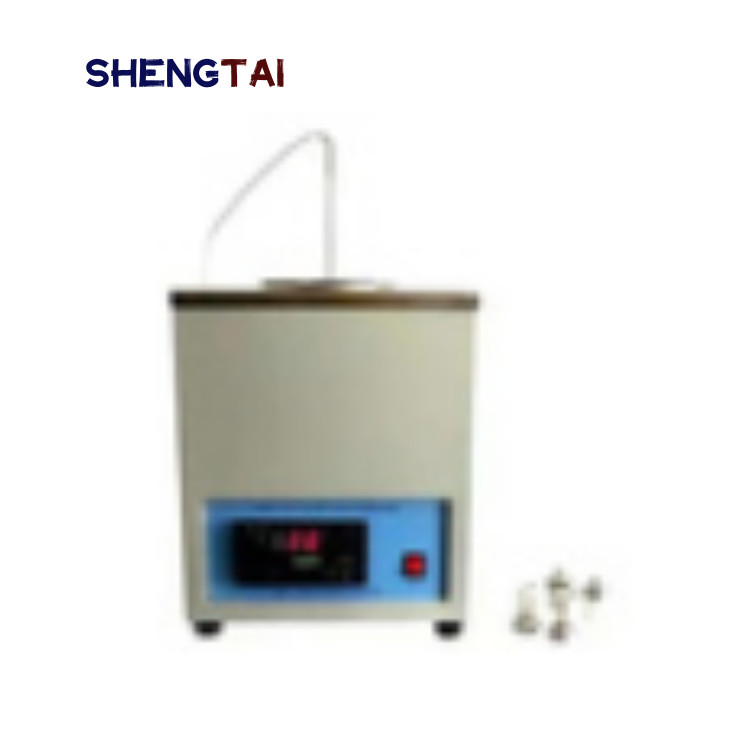

SD-30011 Carbon Residue Tester (Digital Temperature Controlled Electric Furnace Methods)

SD30011 Digital electric furnace carbon residue meter is designed and manufactured according to the requirements of the industry standard SH/TO170 "Carbon residue determination method (electric furnace method)" of the People's Republic of China. It is suitable for the determination of carbon residue of lubricating oil, heavy liquid fuel or other petroleum products according to the test method of SH/TO170 standard.

I. Main technical features

1, the instrument adopts integrated structure design, heating furnace and controller constitute a complete whole, novel and beautiful.

2, Adopt digital temperature controller, with main heating and auxiliary heating functions, according to the need of auxiliary heating can be automatically controlled, but also manual control, easy to use.

3. The temperature of the heating furnace can reach 520℃, and the temperature control accuracy can reach ±5℃ in the full temperature control range, which meets the requirements of the test.

4, the instrument for the table structure, a furnace of four holes, can be placed at the same time four samples at the same time test, test efficiency is high.


II. Main technical parameters and indicators


Power supply AC(220±10%)V, 50Hz
Heating mode Electric furnace
Heating power two gears, main heating and auxiliary heating, 300W+600W+1000W;
Temp. Control range (0~520)ºC
Temp. Control accuracy ±5ºC
Test furnace One furnace with four holes
Ambient temperature Room temperature~ 35ºC
Relative humidity ≤85%
Maximum power consumption 2000W
Dimension 350mm×360mm×365mm
Weight 29kg


Packing List

S/N Name Quantity Unit Remarks
1 host 1 set
2 steel bath cap 4 piece
3 Porcelain crucible 4 piece
4 Crucible cover 4 piece
5 Crucible tongs 1 piece
6 power cord 1 piece
7 fuse tube 1 piece 10A
8 Operating instruction 1 copy
9 packing list 1 copy
10 Certificate of approval 1 copy

Carbon Residue Tester Digital Temperature Controlled Electric Furnace Methods SD-30011 0Carbon Residue Tester Digital Temperature Controlled Electric Furnace Methods SD-30011 1Carbon Residue Tester Digital Temperature Controlled Electric Furnace Methods SD-30011 2
