xMODEL | SH0689 | Working Power Supply | AC220V±10% 50HZ |
---|---|---|---|
Required Environmental | Environmental Temperature Is 15-40 ℃; Humidity ≤ 85% | Temperature Control Range | Room Temperature To 1200℃ |
Repeatability Error | 1.0mg/L<X≤10mg/L, Cv≤±10% 10mg/L<X Cv≤±5% | Temperature Control Accuracy | ±1℃ |
High Light | Diesel Fuel Testing Equipment ASTM D5453,ultraviolet fluorescence sulfur analyzer,Ultraviolet Fluorescence Sulfur Meter |

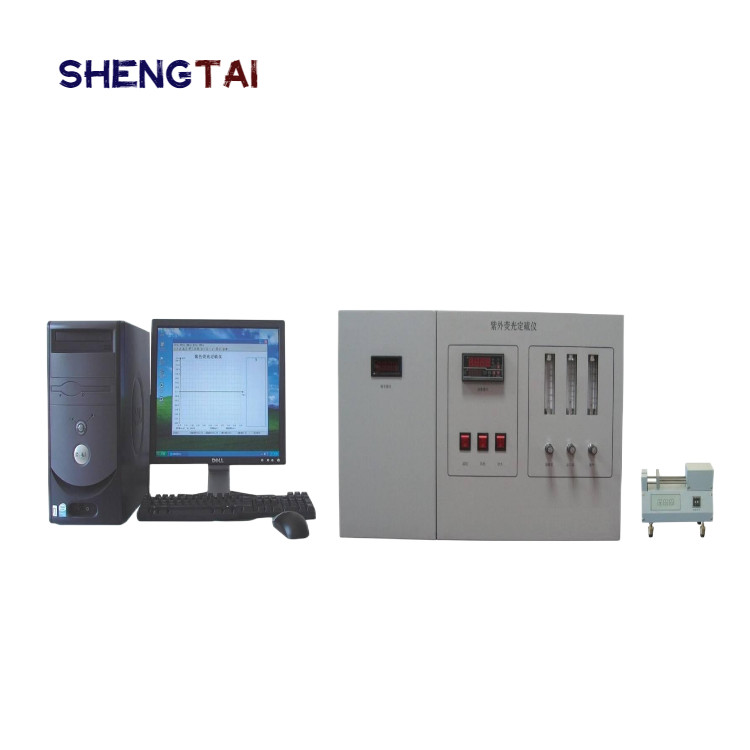

Diesel Fuel Testing Equipment ASTM D5453 Ultraviolet Fluorescence Sulfur Meter Computer Control Operations
SH0689 ultraviolet fluorescence sulfur analyzer uses ultraviolet fluorescence method to determine the principle.
In line with ASTM D5453, SH/T 0689-2000 and other standards, suitable for the determination of total sulfur content in crude oil, distillate oil, liquefied petroleum gas, plastics, petrochemical products, food and other.
After the sample was introduced into the high temperature cracking furnace, the sample underwent cracking oxidation reaction.
At a high temperature of about 1000℃, the samples were completely gasified and oxidized, and the sulfur compounds in them were quantitatively converted to sulfur dioxide.
Ultraviolet Fluorescence ASTM D5453 Sulfur Analyzer Biodiesel Sulfur Content Tester
Reaction gas carried by carrier gas, through the membrane dryer to remove the moisture, into the reaction chamber.
Sulfur dioxide is irradiated by ultraviolet light at certain wavelengths and absorbs this radiation to divert some electrons into high-energy orbits.
Once the electrons have returned to their original orbitals, the excess energy is released as light, detected by a photomultiplier tube at a specific wavelength, emitting fluorescence that is completely specific to the sulfur and proportional to the amount of sulfur in the original sample.
After being amplified by micro-current amplifier and processed by computer, it can be converted into electrical signal proportional to light intensity, and the sulfur content of the corresponding sample can be calculated by measuring its size.
Scope of application: It is suitable for the determination of total sulfur content in gasoline, diesel oil, lubricating oil, crude oil, distillate oil, liquefied petroleum gas, gas, natural gas, plastics, petrochemical products, food, coal and so on.
Compliance with standards: ASTM D5453, SH/T 0689-2000 and other standards.
(It meets the testing standard requirements of national five national six gasoline diesel)
Technical Parameters
Measurement range | 0.1mg/L~10000mg/L ~% |
Working power supply |
AC220V±10% 50HZ
|
Standard | ASTM D5453 SH/T 0689-2000 |
Required environmental |
Environmental temperature is 15-40 ℃; Humidity ≤ 85% |
Temperature control range | Room temperature to 1200℃ |
Temperature control accuracy | ±1℃ |
Repeatability error
|
1.0mg/L<X≤10mg/L, Cv≤±10% 10mg/L<X Cv≤±5%
|
Configuration | Host (data acquisition, control system), cracking furnace, autosampler and computer (operating software included). |
Host size: 550 ×560× 200 (mm) host weight : 9kg | |
Temperature control size: 550 ×560× 400 (mm) temperature control weight: 10kg |
The main features
1, computer control operation, can realize man-machine dialogue, data, peak shape can be automatically stored and printed.
2. The operating software can be connected with LIMIS system to realize automatic data transmission.
3, The instrument adopts a new type of quartz cracking tube, which can increase the injection volume and reduce the measurement error.
4, the cooling fan automatic switch, save the trouble of waiting for the sample shutdown, save time and effort.
5. The darkroom system adopts the latest foreign technology, and the key components adopt imported detection components, which improves the detection accuracy of the instrument
6, the instrument adopts imported membrane dryer to absorb moisture, saving the trouble of replacing magnesium perchlorate frequently, and reducing the problem of air leakage.
7, the use of computer control temperature, improve the instrument temperature control precision, and not easy to overtemperature.
8, the use of air cooling instead of water cooling, save water resources.
9, you can take the existing calibration curve with standard sample calibration for sample analysis.
Technical parameters
Determination range: 0.1 ~ 10000mg/L (PPM)
Lower detection limit: 0.1ppm (sulfur)
Repeatability error: 1.0mg/L < X≤10mg/L, CV ≤±10%
10 mg/L < X Cv plus or minus 5% or less
Air source requirements: high purity oxygen: more than 99.98%;
High purity argon: more than 99.98%
Temperature control range: room temperature ~ 1200℃
Temperature control accuracy: ±1℃
Working power supply: AC220V±10% 50Hz
Environmental requirements: temperature 15 ~ 40℃;
Humidity of 85% or less
Packing list
S/N | Name | Unit | Quantity | Remarks |
1 | Host | set | 1 | |
2 | Sampler | set | 1 | |
3 | computer | set | 1 | With 232 serial port |
4 | Quartz tube | piece | 1 | provided by the installer |
5 | Elbow | piece | 1 | provided by the installer |
6 | Pipe joint clamp | piece | 1 | |
7 | Quartz tube fixing clip (ceramic) ring | piece | 2 | |
8 | Polytetrafluoroethylene pipe | meter | 10 | |
9 | Silicone rubber tube (inner diameter) Ф5 | meter | 0.2 | |
10 | Ф3 | meter | 0.2 | |
11 | Membrane dryer | piece | 1 | Imported from Japan |
12 | power cord | piece | 2 | |
13 | Power line of cracking furnace | piece | 1 | |
14 | Communication cable | piece | 1 | |
15 | Air line pressing cap | piece | 2 | |
16 | Silicone rubber pad | piece | 20 | |
17 | Sampling probe(10ul,25ul) | piece | 各2 | |
18 | standard sample | box | 4 | Installed with |
19 | Fuse tube20A | piece | 4 | |
20 | 2A | piece | 4 | |
21 | Warranty card certificate | copy | 1 | |
22 | Instruction manual | copy | 1 |
