SD262A Petroleum Product Aniline Point Tester Manual

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SD262A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SD262A Temperature Control Range Room Temperature To 200ºC
Temperature Control Accuracy ≤0.5℃ Stirring Speed (0~1200)RPM
Temperature Range Ambient To 200℃ Working Power Supply AC 220V ±10%, 50HZ
High Light

SD262A Aniline Point Tester


Petroleum Product Aniline Point Tester


Aniline Point Tester Manual

Leave a Message
Product Description

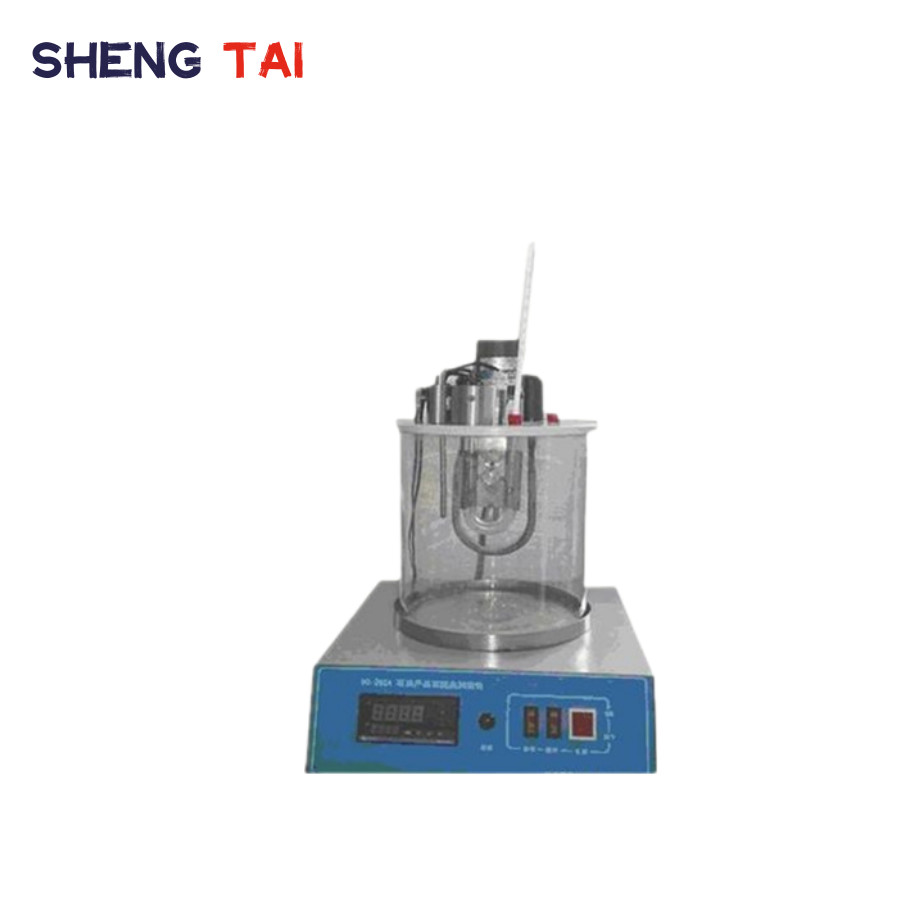

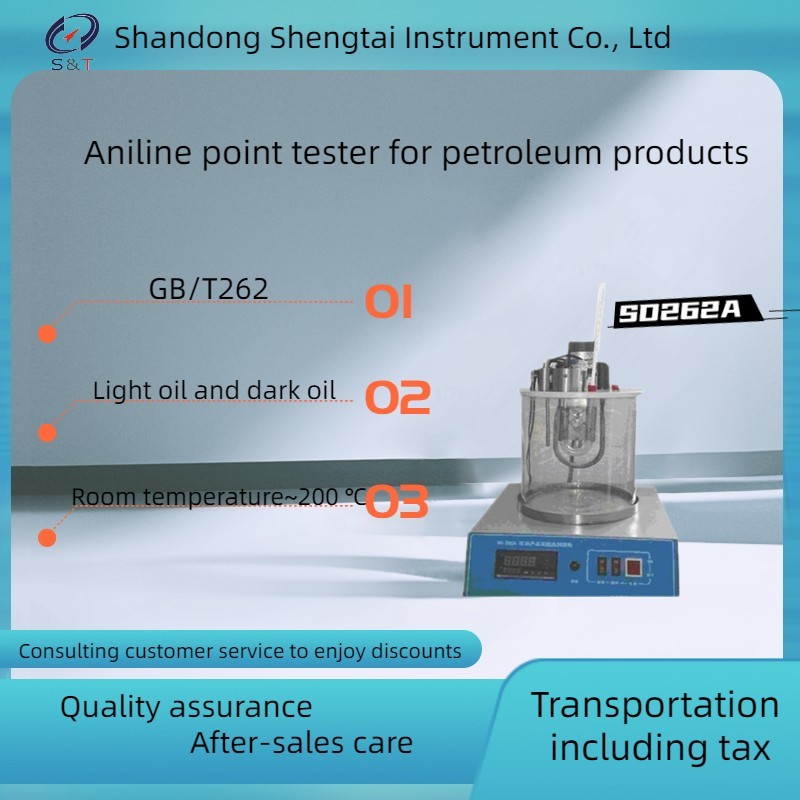

Transformer Oil Testing Equipment SD262A Petroleum Product Aniline Point Tester Manual

SD262A Aniline point tester for petroleum products is designed and manufactured according to the requirements stipulated in the national standard GB/T262 Aniline point tester for petroleum products. It is suitable for the determination of aniline point for light colored petroleum products and dark colored petroleum products.

Petroleum Products Aniline Point Tester

Aniline Point Tester of Petroleum Products and Hydrocarbon Solvents

Laboratory GB/T262 Petroleum Products and Hydrocarbon Solvents Aniline Point Tester

SD262A Aniline Point Tester for Light-colored and Dark-colored Petroleum products

ASTM D611 aniline point tester

Standard Test Methods for Aniline Point and Mixed Aniline Point of Petroleum Products and Hydrocarbon Solvents


Main technical features: aniline point meter oil analysis

1. The design of the instrument fully conforms to the requirements of GB/ T262 standard for the aniline point test of dark petroleum products and light petroleum products.

2. The instrument can measure the aniline point of heavy oil (dark petroleum products) and light oil (light petroleum products).

3, Temperature control system adopts digital display PID temperature control instrument, high temperature control precision, stable and reliable performance, easy to operate.

Technical parameters:

Temperature Control Range: Room Temperature to 200ºC
Temperature control accuracy: ≤0.5
Motor power 6W
Heating power: 2KW
Stirring speed : (0~1200)RPM
Temperature range Ambient to 200℃
lighting power supply: 5V
Saltwater tank capacity: 15L
Working power supply: AC 220V ±10%, 50HZ
Dimension 320*380*490 12kg
Packing size 450*420*550 16kg


Packing list

No. Name Unit Quantity Remark
1 Main unit Set 1
2 Thermometer Piece 1 25 to 105 ºC, scale division is 0.2 ºC;
3 Thermometer (2#) Piece 1 90 to 170 ºC, scale division is 0.2 ºC;
4 U type tube (For heavy oil) Piece 1
5 Metal shield (For heavy oil) Piece 1
6 Illumination bulb assembly (For heavy oil) Piece 1
7 Seat 2 for test device (For heavy oil) Piece 1 With stirring motor assembly
8 Glass test tube
(For heavy oil and light oil)
Piece 2 Φ25
9 Glass casing tube (For light oil) Piece 1 Φ40
10 Cork 1# (For light oil) Piece 1 Hole ofΦ25
11 Cork 2# (For light oil) Piece 1 With a hole ofΦ9 and hole for stirring rod
12 Cork 3# Piece 1
13 Stirring rod (For light oil) Piece 1
14 Silica gel stopper (8#) Piece 1
15 Seat 1 for testing device (For light oil) Piece 1
16 Stopping ring for thermometer (2#) Piece 2
17 Fuse (Φ5*20,15A) Piece 2
18 Power supply(250V 10A) Piece 1

(1) Operation Manual 1 piece
(2) Repair Guarantee 1 piece
(3) Quality Certificate 1 piece

SD262A Petroleum Product Aniline Point Tester Manual 0SD262A Petroleum Product Aniline Point Tester Manual 1
