xMODEL | SD510-N | Working Power Supply | AC220V ± 10%; 50Hz |
---|---|---|---|
Cold Bath Temperature Control | Room Temperature~- 40 ℃ | Refrigeration System | A New Type Of Refrigeration Compressor |
Ambient Temperature | ≤ 30 ℃ | Relative Humidity | ≤ 85% |
Power Consumption | No More Than 1000W | ||
High Light | SD510 -N Condensation point meter,Petroleum Pour Point Analyzer |

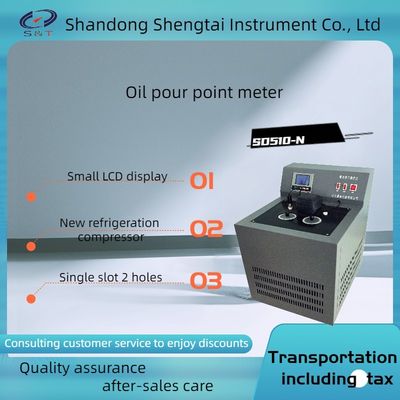

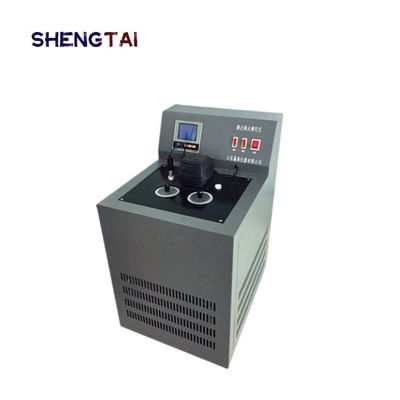

Refrigeration Of Small Liquid Crystal Display Compressor For Petroleum Pour Point Analyzer
SD510 –N Condensation point meter It is designed and manufactured in accordance with the requirements specified in the standard GB/T 510 of the People's Republic of China, and is suitable for determining the Condensation point of sample products according to the methods specified in the above two standards.
Compliance standards | GB/T510 |
Test sample | Petroleum Products Chemical Products |
Detection result | Determination of the Condensation point of petroleum products |
Product model | SD510-N |
Performance characteristics
1. The instrument adopts a compressor for refrigeration, with fast cooling speed and long service life.
2. The display mode adopts small liquid crystal display, with good temperature control stability.
3. Two sets of tests can be conducted simultaneously, with a single slot and two holes, and the cooling speed is fast.
4. Equip a condensation point test tube to measure the condensation point value of oil products.
Main technical specifications and parameters
1. Working power supply: AC220V ± 10%; 50Hz.
2. Cold bath temperature control: room temperature~- 40 ℃
3. Refrigeration system: a new type of refrigeration compressor.
4. Ambient temperature: ≤ 30 ℃.
5. Relative humidity: ≤ 85%.
6. Power consumption: no more than 1000W
Consumables required: alcohol.
Instrument size: 380 * 480 * 580mm Weight: 40kg
SD510-N Petroleum Condensation Point Tester Matched with a Condensation Point Test Tube Condensation Point Thermometer Conforming to GB/T51
Details of supporting petroleum product Condensation point tester
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Condensation point glass tube | 2 | piece | Including inner tube and outer tube |
3 | Condensation point thermometer | 2 | piece | |
4 | power cord | 1 | piece | |
5 | Fuse tube | 1 | piece | |
6 | instruction manual | 1 | copy | |
7 | Packing list | 1 | copy | |
8 | Certificate warranty card | 1 | copy |
