Semi Automatic Open Cup Flash Point Tester ASTMD92 Electric Furnace Heating

  • Semi Automatic Open Cup Flash Point Tester ASTMD92 Electric Furnace Heating
  • Semi Automatic Open Cup Flash Point Tester ASTMD92 Electric Furnace Heating
Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SD3536
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SD3536 Power Supply AC(220±10%)V, 50Hz
Temperature Sensor RTD, PT100 Ambient Temperature (-10~50)ºC
Relative Humidity ≤85% Maximum Power Consumption 650W
High Light

Semi Automatic Flash Point Tester

,

Open Cup Flash Point Tester

,

Flash Point Tester ASTM D92
Leave a Message
Product Description

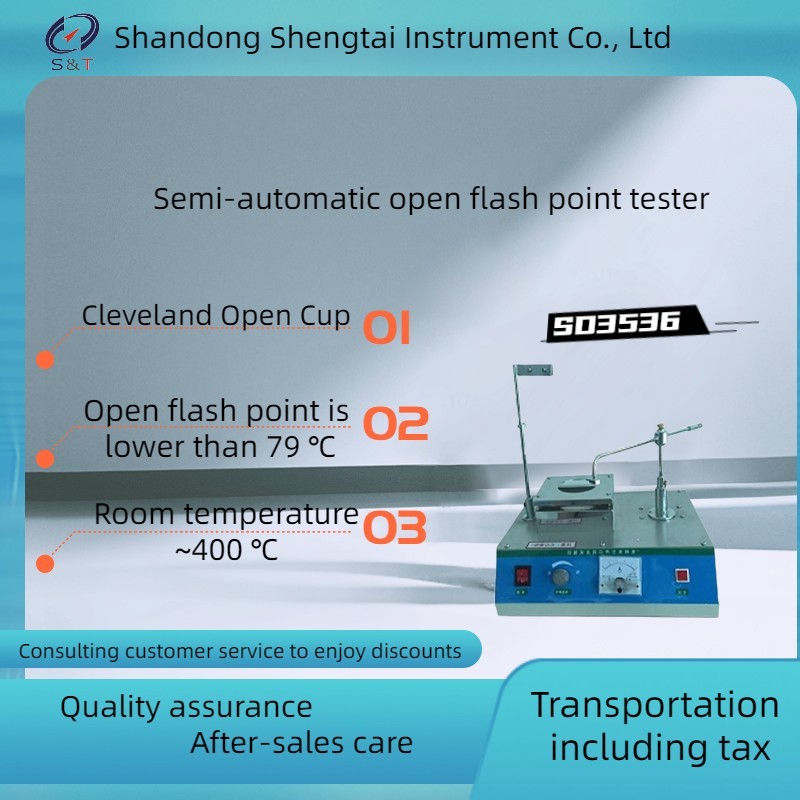

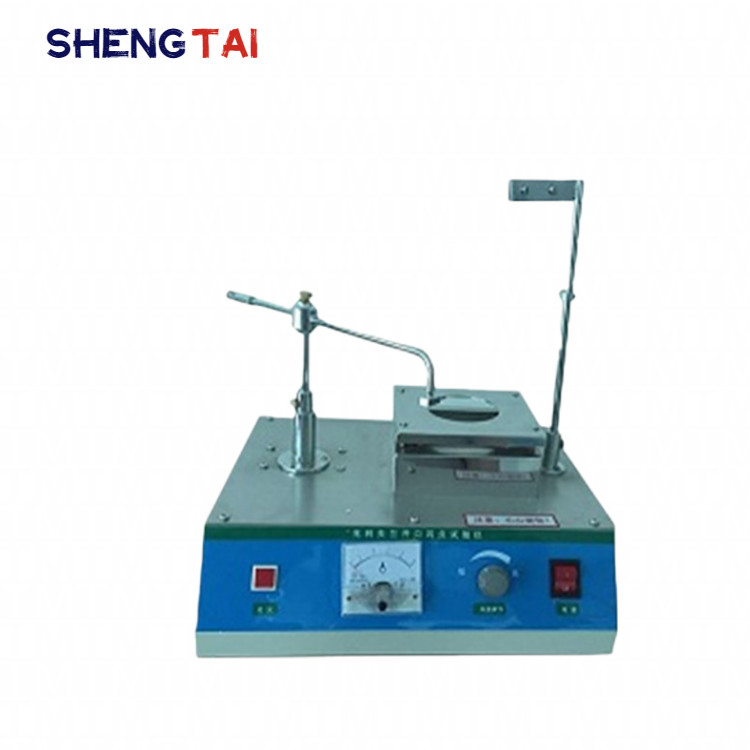

Semi-Automatic Cleveland Open Cup Flash Point Tester ASTMD92 Electric Furnace Heating
SD3536 semi-automatic open flash point meter is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T3536-2008 "Petroleum Products - Determination of Flash Point and Ignition Point - Cleveland Open Cup Method". It is suitable for measuring the flash point and ignition point of petroleum products except fuel oil and open flash point not less than 79 ℃, and also supports the determination of GB/T1671-2008 plasticizer flash point.

The open flash point is applicable to the determination of the flash point and ignition point of petroleum products except fuel oil and petroleum products with an open flash point not lower than 79 ℃
Semi-automatic Open Flash Point Tester
Semi-Automatic Cleveland Open Cup Flash Point Tester ASTMD92
SD3536Semi-automatic Cleveland Open-Cup Flash Point Tester
Semi-Automatic Tag Open Cup Flash Point Tester SD3536
SD3536Cleveland Open Cup Flash Point Tester for Oil testing
Main technical parameters and indexes

1. Power supplyAC(220±10%)V, 50Hz.
2. Heating deviceelectric furnace heating, no flame, explosion-proof, power 0-600W continuous adjustable.
3. Temperature controlroom temperature ~ 400℃, grading 2℃, technical conditions in line with the technical conditions of liquid thermometer used in petroleum products test GB/T514 provisions
4. Temperature displayLCD screen shows temperature parameters. The range is 0ºC~400ºC, accuracy is 0.1ºC.
5. Ignition device

(1) Ignition source: gas (or other civil combustible gas, the same below);



(2) Nozzle aperture: 0.6 〜 0.8 mm.

6. Temperature sensorRTD, PT100
7. Ambient temperature(-10~50)ºC
8. Relative humidity≤85%
9.Maximum power consumption650W

10. Package size: 380mm * 290m * 260mm Weight: 10kg



Packing List

S/NNAMEUNITQuantityRemarks
1Open flash point meterset1
2Special brass oil cuppiece1
3Special thermometerpiece1
4instructionscopy1
5Certificate of conformity warranty cardcopy1


Customers need to provide their own: air source and air source required pressure reducing valve
Semi Automatic Open Cup Flash Point Tester ASTMD92 Electric Furnace Heating 0Semi Automatic Open Cup Flash Point Tester ASTMD92 Electric Furnace Heating 1
