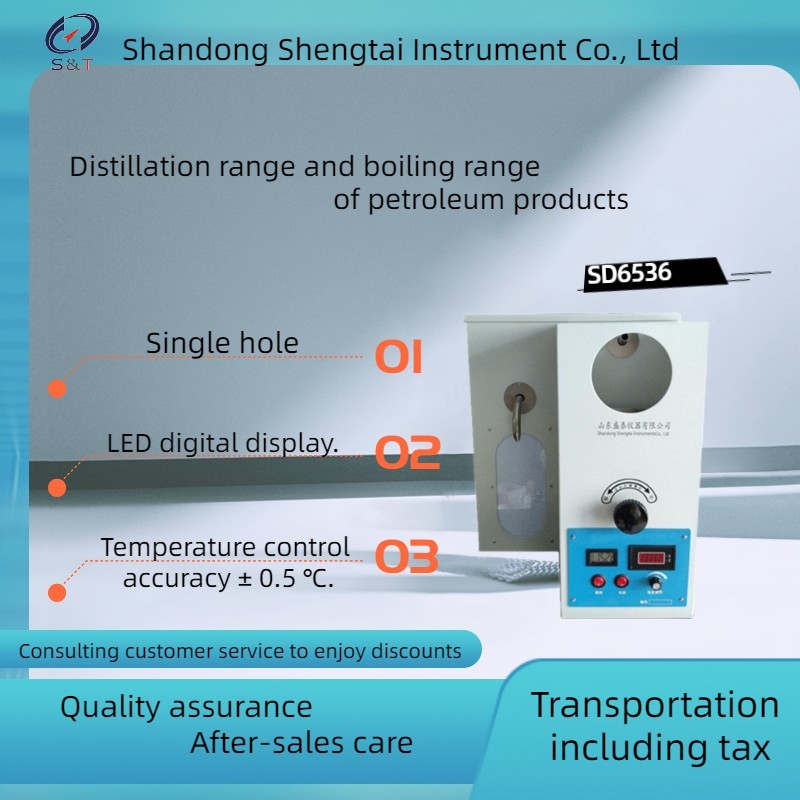

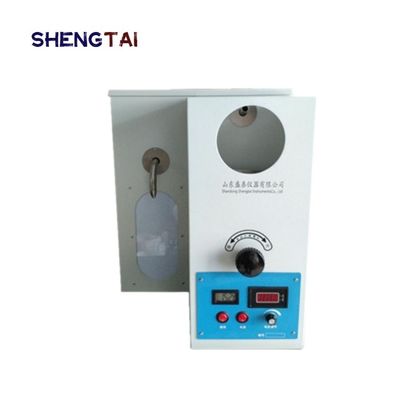

Petroleum Product Distillation Range And Boiling Range Tester SD6536

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SD6536
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SD6536AZ Power Supply AC220V±10%, 50Hz
Heating Power Of Electric Furnace 1000W×2 Measuring Cylinder Volume 100 ML, Indexing 1 ML
Temperature Control Accuracy ±0.5℃ Temperature Display Mode LED Digital Display.
High Light

Petroleum distillation apparatus


Petroleum product distillation apparatus

Leave a Message
Product Description

Diesel Fuel Testing Equipment SD6536 Petroleum Product Distillation Range And Boiling Range Tester

SD6536 Petroleum product distillation apparatus is based on the standard of the People's Republic of China GB/T6536 GB/T7534 the distillation of petroleum products determination act - 2004 "industrial use volatile organic liquid boiling range measurement, the requirements of the design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar determination of distillation, and in accordance with the standards of GB/T7534 for volatile organic liquid used in industry, raw material in organic solvent such as the determination of boiling range of the instrument.

Petroleum product distillate boiling range tester

SD6536 Distillation Tester for Petroleum Products

Automatic Type Distillation Analyzer for Petroleum Oils

Automatic Standard Petroleum Distillation Range Testing Apparatus

Distillation Apparatus-Distillation Tester-Oil Distillation Apparatus-Petroleum

Main technical parameters


1 Power supply AC(220±10%)V , 50Hz.
2 Heating power of electric furnace 1000W×2.
3 Measuring cylinder volume 100 mL, indexing 1 mL.
4 Electric furnace movable plate made of silicon carbide plate with hole diameter of φ 38㎜, φ 50㎜.
5 Thermometer

full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, The graduation is 1 ℃ (thermometer can be selected according to demand).


6 temperature control range room temperature ~ 400℃ arbitrary setting.
7 Temperature control accuracy ±0.5℃
8 Number of test holes: single hole
9 Temperature display mode

LED digital display.


10 The distillation flask 125mL, in line with the requirements of GB/T6536.

Overall dimension: 400mm × 430㎜ × 500 mm (long × wide × High)


Instrument weight: 20kg


Packing list

S/N Name Unit Quantity
1 Host set 1
2 Distillation flask(125 ml) piece 1
3  thermometer piece 1
4 Glass tank(Ф100×240) piece 1
5 Silicone plug(3#,4#) piece each1
6 Silicon carbide plateφ38,φ50 piece each1
7 Graduated cylinder(100ml) piece 1
8 Thermometer retainer(1#) piece 2
9 Observation glass piece 1
10 Baffle cover piece 1
11 power cord piece 1
12 instruction manual copy 1
13 Certificate warranty card copy 1


Petroleum Product Distillation Range And Boiling Range Tester SD6536 0Petroleum Product Distillation Range And Boiling Range Tester SD6536 1

Petroleum Product Distillation Range And Boiling Range Tester SD6536 2
