xMODEL | SD6536C | Power Supply | AC(220±10%)V, 50Hz |
---|---|---|---|
Electric Furnace Heating Power | 1000W | Distillation Pressure Regulating Furnace Power | 0~1 KW |
Temperature Range Of Condensing Bath | 0~400 ℃ | Maximum Power Of The Whole Machine | 2.45 KW |
Number Of Experiments | Single Hole | ||
High Light | Distillation Range Boiling Range Tester,Petroleum Product Distillation Tester |
Diesel Fuel Testing Equipment Petroleum Product Distillation Range Boiling Range Tester Compressor Refrigeration

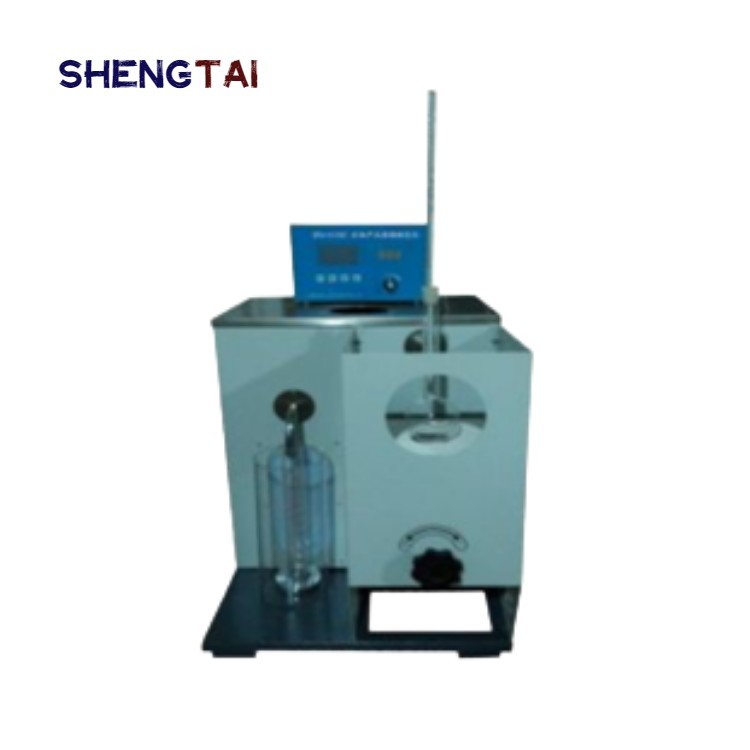

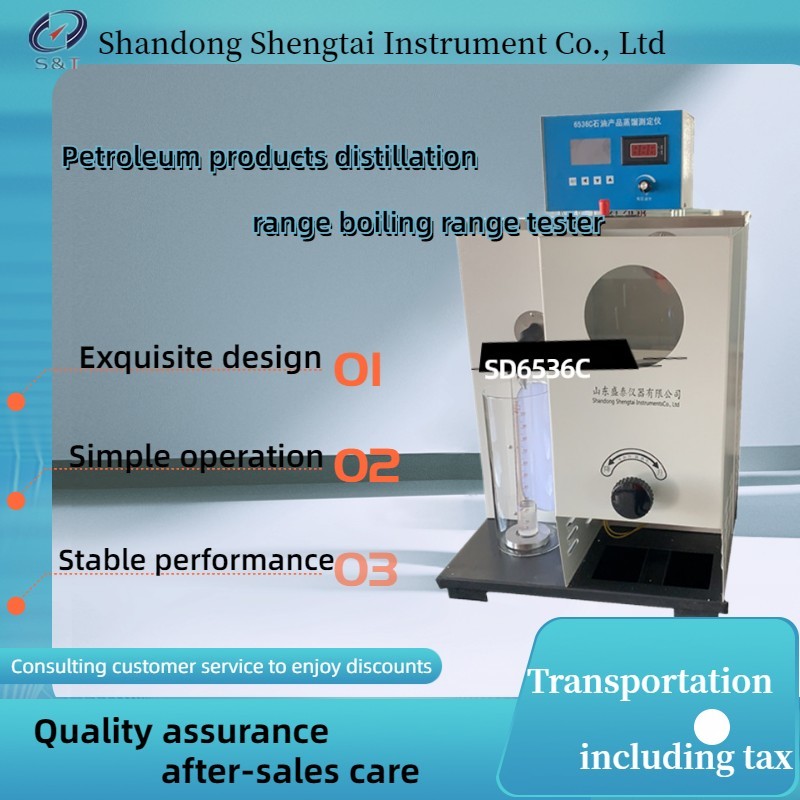

SD6536C Oil distillation tester is the instrument according to the standard of the People's Republic of China GB/T 6536 the act of the distillation of petroleum products determination of the requirements of the design and manufacture, apply to the standard of GB/T 6536 to gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.
Product Name |
Petroleum Product Distillation Tester |
Power supply |
AC(220±10%)V, 50Hz; |
Electric furnace heating power |
1000W |
Receiving cylinder |
100 ml. Scale division 1 ml |
Distillation flask |
125 ml, as per GB/T6536 and GB/T7534 |
Distillation pressure regulating furnace power: |
0~1 KW |
Condensing tube size: |
Φ fourteen × 560 mm: |
condenser pipe |
seamless brass pipe |
The volume of condensate bath is 5.5L, and the actual liquid added is 4.5L |
|
Heating method of condensation bath: |
electric heating rod |
Condensate bath temperature control mode: |
digital temperature controller temperature control; |
Temperature range of condensing bath: |
0~400 ℃ |
Refrigerated compressor |
New-type refrigeration compressor |
Maximum power of the whole machine: |
2.45 KW |
Number of experiments: |
single hole |
Dimension |
520mm×440mm×550mm |
Net weight |
25kg |
I. Main technical features
1. Adopt digital temperature controller, stainless steel heater, new refrigeration compressor and electric stirrer to form a constant temperature bath. The temperature in the bath is uniform, which fully meets the requirements of the test.
2, the use of special heating furnace form, to ensure the safety of the test;
The heating power can be adjusted continuously to meet the requirements of the test.
3. The instrument is complete and easy to use. The repurchased instrument can be used for the distillation test of petroleum products under the condition of low temperature.
4. The condensing water tank is made of stainless steel, which can be heated and cooled
II. Main technical parameters and indicators
1, working power supply: AC 220V±10%, 50Hz
2. Electric furnace heating power: 1000W;
3, measuring cylinder volume: 100ml, 1ml indexing;
4. Distilling flask: 125mL, in line with the requirements of GB/T 6536;
5, distillation and pressure regulating furnace power: 0 ~ 1 KW×2
6, condenser pipe size: Φ 14 x 560 mm
7. Quantity: Single tube;
8, condensing bath heating method: electric heating rod heating;
9, condensing bath temperature control mode: digital display temperature controller temperature control;
10,Refrigeration system: new refrigerating compressor;
11, condensing bath temperature range: 0 ~ 4℃.
12, the maximum power of the machine: 2.45KW.
S/N |
Name |
Quantity |
Unit |
Remarks |
1 |
Host |
1 |
set |
|
2 |
Distillation flask (125 ml) |
1 |
piece |
|
3 |
Glass tank |
1 |
piece |
|
4 |
Silicone plug |
2 |
piece |
|
5 |
Silicon carbide plate, hole diameter φ 38㎜, φ 50㎜ |
2 |
piece |
|
6 |
Measuring cylinder 100ml |
1 |
piece |
|
7 |
Test platform |
1 |
piece |
|
8 |
power cord |
1 |
piece |
|
9 |
Thermometer |
2 |
piece |
|
10 |
Fuse tube |
1 |
piece |
10A |
11 |
instruction manual |
1 |
copy |
|
12 |
Packing list |
1 |
copy |
|
13 |
Certificate warranty card |
1 |
copy |
|
