ASTMD1401 Petroleum Demulsification Tester With Two Sample Holes

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SD7305
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SD7305 Temperature Accuracy ±0.1℃
The Input Power 1.5KW Bath Stirring Motor 15W
Sample Stirring Motor 1500 ± 15rpm The Structure Of The Form 2 Hole
Working Power Supply AC 220V±10%, 50Hz Temperature Control Range Room Temperature ~ 99.9℃
Power Consumption Of The Whole Machine No More Than 1200W
High Light

Petroleum Demulsification Tester

,

Lubricating Oil Water Separability Tester

,

ASTM D1401 Hydraulic Oil Testing Equipment

Leave a Message
Product Description

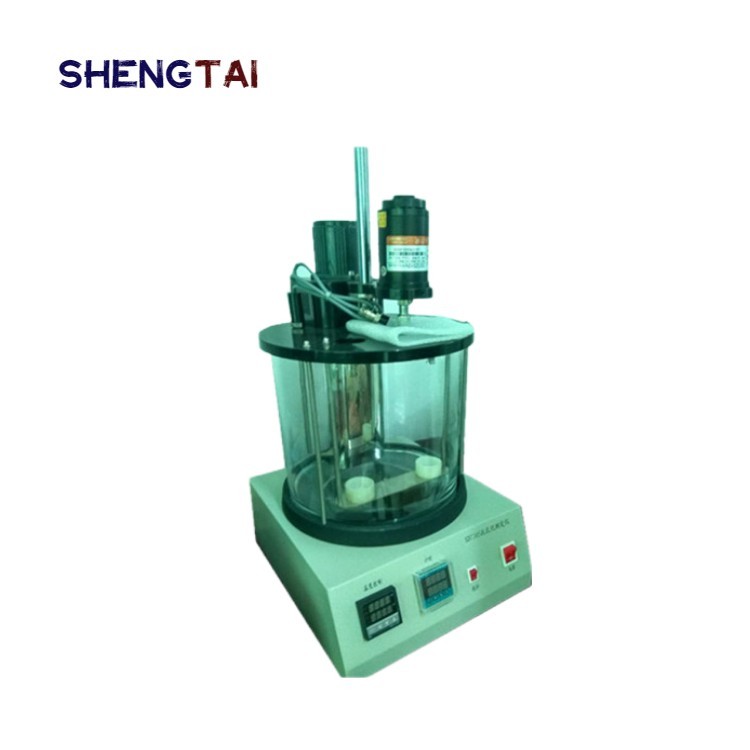

ASTMD1401Petroleum Demulsification Tester With Two Sample Holes In A Small Cylinder Desktop Structure

SD7305 Lubricating Oil Water Separability Tester is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T7305 "Determination of demulsification performance of petroleum and synthetic liquids". ASTM D1401

This instrument is suitable for measuring oils with a kinematic viscosity of 28.8~90mm²/s at 40℃. The test temperature is 54±1℃. It can also be used to determine oils with a kinematic viscosity greater than 90mm²/s at 40℃, but the test temperature is 82±1℃. It can be widely used in the fields of petroleum, electric power, chemical industry, colleges and universities, scientific research institutes and other units.

I. Main technical parameters and indicators



Temperature accuracy ±0.1℃
The input power 1.5KW
Bath stirring motor 15W
Sample stirring motor 1500 ± 15rpm
The structure of the form 2 hole
Working power supply AC 220V±10%, 50Hz
Temperature control range room temperature ~ 99.9℃
Power consumption of the whole machine no more than 1200W
Temperature control heating power 1000W
Relative humidity ≤ 85%
Ambient temperature room temperature ~ 35℃
Time control range 1 seconds to 9 minutes and 59 seconds
Instrument size: 320 * 380 * 680mm weight:15kg



II. Main technical features

1, the use of small cylinder table structure, with small volume, easy to operate, beautiful appearance and other advantages.

2, the bath adopts the motor automatic mixing, the temperature is uniform, the bathtub cover has two sample holes, can be placed at the same time two samples according to this test.

3, the sample stirring device is convenient to lift, stirring shaft in the test tube stirring concentricity is good, no shaking or touching the test tube wall.





Packing List

S/N Name Quantity Unit Note
1 host 1 set
2 Thermometer 0 ~ 100℃ grade 1℃ 1 piece
3 Temperature sensor 1 piece
4 Test tube 3 piece 1 the spare
5 power cord 1 piece
6 fuse tube 1 piece 10A
7 Operating instruction 1 copy
8 Packing list 1 copy
9 Certificate 1 copy

ASTMD1401 Petroleum Demulsification Tester With Two Sample Holes 0ASTMD1401 Petroleum Demulsification Tester With Two Sample Holes 1ASTMD1401 Petroleum Demulsification Tester With Two Sample Holes 2
