Automatic Mechanical Impurity Content Tester Gravimetric Method

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH101C
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH101C Temperature Control Range Room Temperature~100 ℃
Temperature Control Accuracy ± 1 ℃ Resolution 0.1 ℃
Power 800W
High Light

Mechanical Impurity Content Tester

,

Gravimetric Method Content Tester

Leave a Message
Product Description

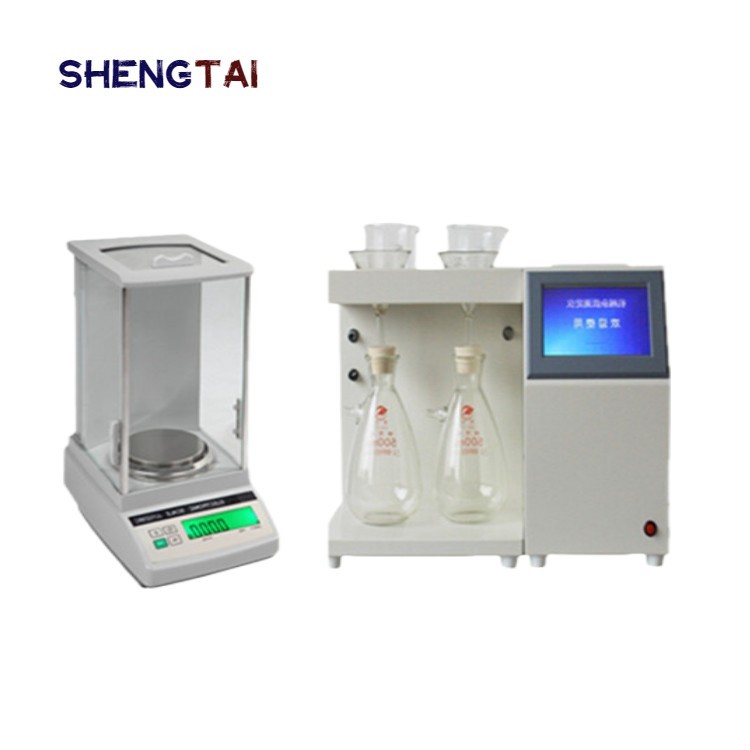

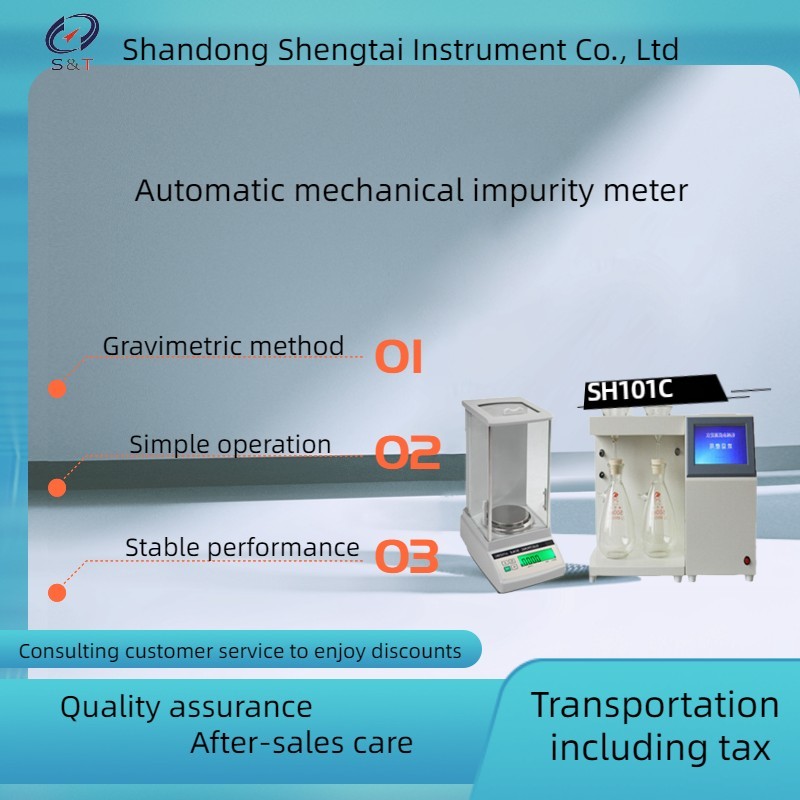

Automatic Mechanical Impurity Content Tester For Petroleum Products And Additives (Gravimetric Method)

SH101C Automatic Mechanical Impurity Content Tester (with balance) is designed in accordance with the requirements of the national standard GB/T511 "Petroleum Products and Additives - Determination of Mechanical Impurities (Gravimetric Method)". It is suitable for determining the content of mechanical impurities in various light and heavy oils, lubricating oils, and additives in petroleum products. The balance is connected to a fully automatic mechanical impurity content meter, and the weighing data is automatically imported into the instrument to automatically calculate the measurement results.



Method Summary

Weigh a certain amount of sample and dissolve it in the solvent used, and filter it with constant weight filter paper or microporous glass filter. The impurities left on the filter paper or microporous glass filter are mechanical impurities



Executive standard: GB/T 511-2010 Petroleum and Petroleum Products and Additives - Determination of Mechanical Impurities

Product name SH101B Automatic Mechanical Impurity Tester
Manufacturer Shandong Shengtai Instrument Co., Ltd
Test items

applicable to determining the content of mechanical impurities in various light and heavy oils, lubricating oils, and additives in petroleum products.



Compliance with standards Executive standards:GB/T 511



Performance characteristics:

1. Built-in oil-free and maintenance-free vacuum pump, dual solvent oil preheating system, one instrument host to complete all functions, without the need for external vacuum pumps and water baths.

2.7 inch TFT true color touch screen with a resolution of 800 × 480, human-computer interaction is simple and easy to use.

A new generation of intelligent operating system using a 32-bit microprocessor as the main control core.

4. Adopt built-in oil-free and maintenance-free vacuum pump, and program controlled dual suction filtration.

5.4 PID temperature control, precise control of solvent oil preheating temperature and insulation funnel temperature.

6. Built-in formula, automatically calculating test results, and saving and printing data.

7. With automatic data query function, it is convenient to find test records and statistical data, and can print the results at any time.

8. It has the date and password setting function.

9. Standard micro printer Automatic measurement Automatic thermal printing

10. Display: 7-inch liquid crystal display (LCD),

11. Resolution 800 × four hundred and eighty

12. Temperature: 4-way PID temperature control

13. Temperature control range: room temperature~100 ℃

14. Temperature control accuracy: ± 1 ℃

15 Resolution: 0.1 ℃

16. Printer: 58mm wide width micro thermal printer

17. Storage method: Experimental results can be stored in 199 sets of historical data for easy query;

18 Result output: At the same time, it can be equipped with a U-disk output function, which can be output to the PC terminal for long-term storage

19. Output Format: The output format of the result USB flash disk is CSV or Excel.

★ 20. Remote upgrade: With TCP network transmission function, remote software upgrade can be performed later (optional)

★ 21. Data management: connectable to the limis system (optional)

22. Power: 800W

23. Overall dimension: 510 ×350× 320 (excluding foot mats)

24. Weight: 16kg

Packing list



S/N Name Quantity Unit Remarks
1 Mechanical impurity tester host 1 set
2 Beaker 2 piece
3 Funnel 2 piece
4 Suction bottle 2 piece
5 Rubber stopper 2 piece
6 power cord 1 piece
7 Instructions 1 copy
8 Certificate of Conformity Warranty Card 1 copy
