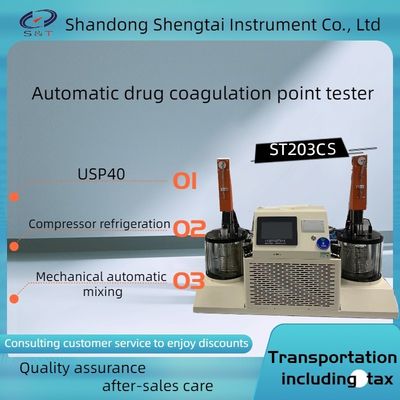

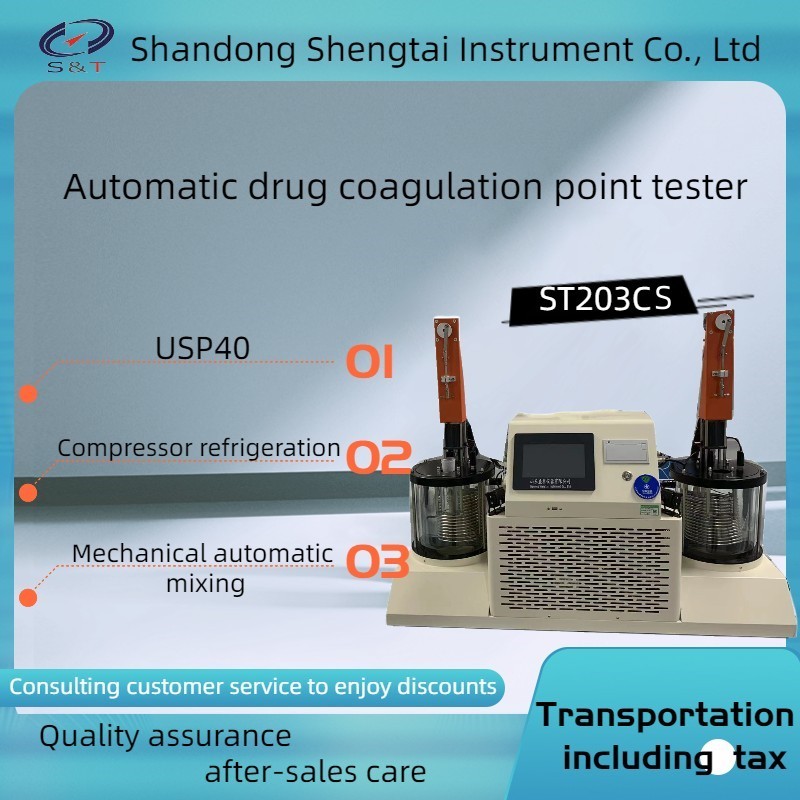

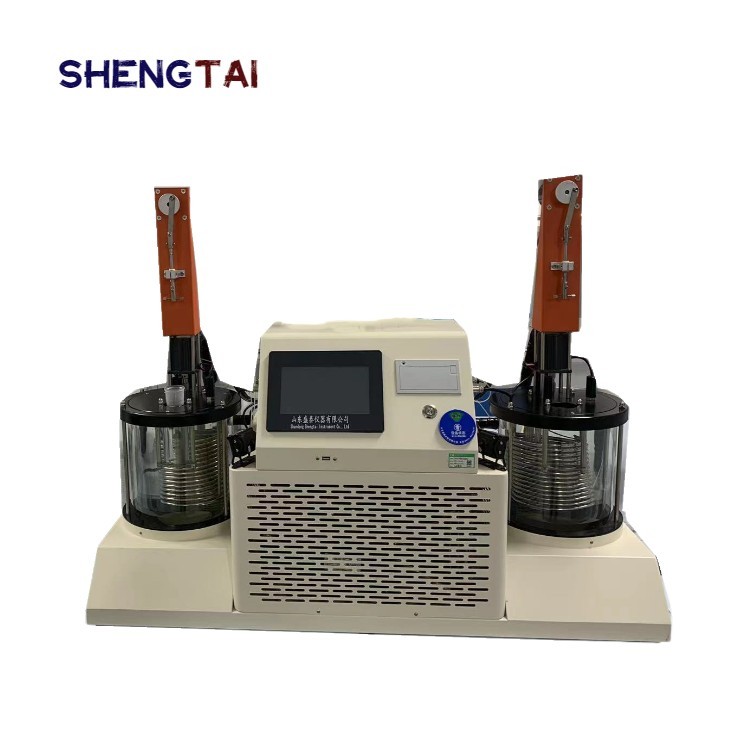

ST203CS Automatic Drug Freezing Point Instrument Dual Bath Meets USP40 Standards
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST203CS | Working Power Supply | AC220V ± 10%; 50Hz |
---|---|---|---|
Temperature Control Of Cold Bath | - 10 ℃~+170 ℃ | Temperature Control Accuracy | ± 0.1 ℃ |
Number Of Test Holes | Double Holes | Cooling Mode | Air Cooling |
Bath Liquid Mixing | Automatic Mixing By Mixing Motor, Power 6W, 1200r/min. | ||
High Light | ST203CS freezing point instrument,automatic drug freezing point instrument,USP40 standards freezing point instrument |
Drug Detection Equipment ST203CS Automatic Drug Freezing Point Instrument Dual Bath Meets USP40 Standards
ST203CS automatic drug coagulator is designed and manufactured according to USP40 (40 version of the United States Pharmacopoeia) USP 40 651 freezing point determination and the general rule 0613 freezing point determination of the Chinese Pharmacopoeia in 2020. It is applicable to the determination of the freezing point of liquid medicine. Determine the temperature at which the drug stays unchanged for a short time when it is condensed from liquid to solid. Some drugs have certain changes in coagulation point and purity, and the coagulation point also changes. The determination of coagulation point can distinguish or check the purity of drugs. For example, polyethylene glycol glacial acetic acid phenol magnesium stearate bisphenol A, etc.
Technical parameter:
● Adopt embedded system design, automatic detection and printing in the whole process of test
● Test results can be exported via USB flash disk;
● 7-inch color touch screen; The test results can be stored; Historical data can be viewed;
● The results are printed on the instrument, and the mechanical mixing is automatic.
● Account management: audit tracking function and hierarchical account management can be used for three-level account management.
● Working power supply: AC220V ± 10%; 50Hz.
● Working cold bath: double-layer vacuum glass bath.
● Temperature control of cold bath: - 10 ℃~+170 ℃
● Temperature control accuracy: ± 0.1 ℃ (0.01 ℃ can be customized).
● Number of test holes: double holes
● Refrigeration mode: compressor refrigeration
● Cooling mode: air cooling
● Display: 7-inch touch screen display
● Bath liquid mixing: automatic mixing by mixing motor, power 6W, 1200r/min.
● Refrigeration system: new refrigeration compressor.
● Data memory: The memory of microcomputer instrument can be expanded to 16G.
● Sample mixing: synchronous reduction motor, 60 times/minute.
● Storage mode: the experimental results can store 199 groups of historical data for easy query;
● Result output: at the same time, it can be equipped with U disk output function, output to the computer for long-term storage
● Output format: the output format of the result USB flash disk is CSV or excel.
● Standard printing: standard micro printer automatic measurement automatic needle printing
● Data management: can be connected to lims system
● Data extension: audit trail function
● Instrument size: 680 * 450 * 580mm
● Instrument weight: 38kg
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Gel stopper | 2 | piece | Conforming to pharmacopoeia |
3 | Freezing point test tube | 2 | piece | |
4 | sensor | 2 | piece | |
5 | power cord | 1 | piece | |
6 | Printing paper | 2 | roll | Needle printing paper |
7 | Certificate warranty card | 1 | copy | |
8 | Instructions | 1 | copy |
