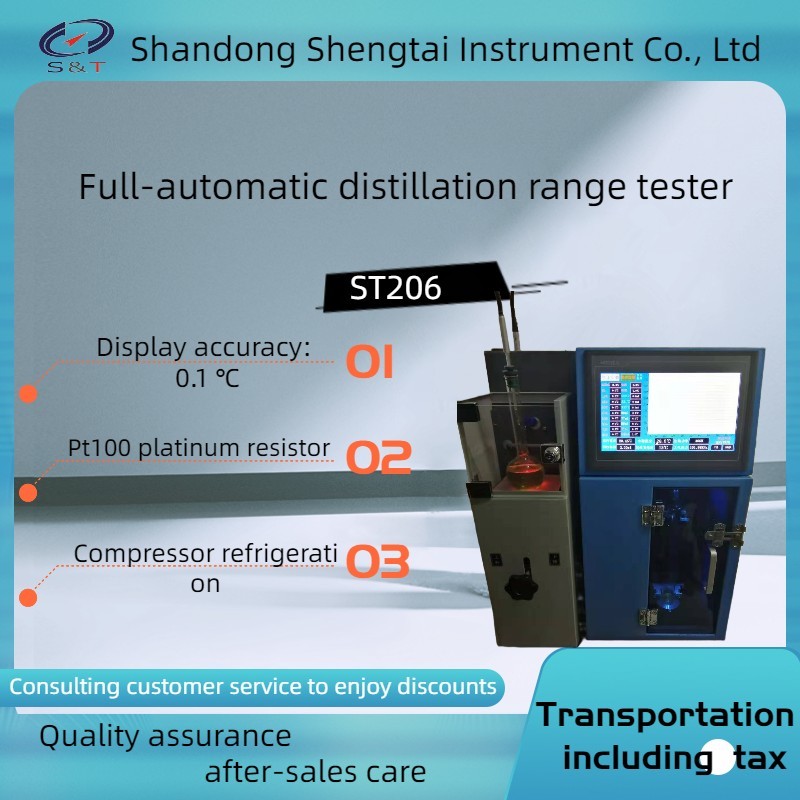

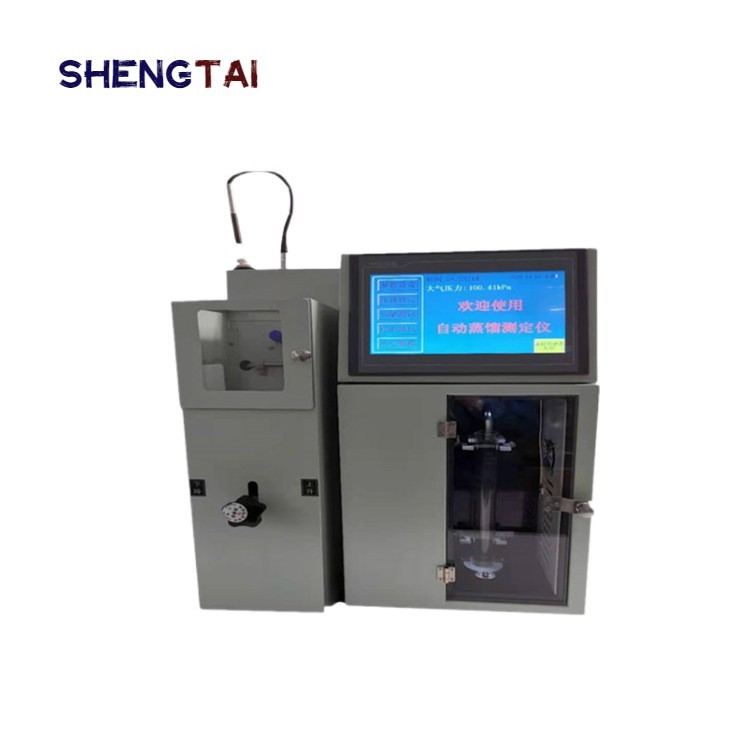

ST206 Fully Automatic Distillation Range Analyzer For Drug Testing Instruments

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST206
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL ST206 Temperature Range Room Temperature~+500 ° C Accuracy ± 0.1 ° C
Temperature Control Range Of Cold Bath (-5~ 60)℃ Temperature Control Precision Of Cold Bath ±0.5℃
Temperature Control Range Of Receiving Room (0 ~ 40)℃ Temperature Control Accuracy Of Receiving Room ±1℃
Time From Heating To Initial Boiling Point 5~15 Minutes Measuring Range Of Recovery Volume 0-100ml
Measurement Accuracy Of Distillate Liquid Product ≤ 0.1ml
High Light

fully automatic distillation range analyzer


ST206 distillation range analyzer


distillation range analyzer for drug

Leave a Message
Product Description

The ST206 Fully Automatic Distillation Range Analyzer For Drug Testing Instruments Has TCP Network Transmission Function

ST206 full-automatic distillation range boiling range instrument uses color LCD screen, Chinese menu man-machine dialogue, guided operation, and the determination process is fully automated. Designed in accordance with the requirements of the distillation range determination method in the general rule 0611 of the Chinese Pharmacopoeia in 2020.

The distillation range refers to a liquid distilled according to the following method and corrected to the standard atmospheric pressure [101 At 3kPa (760mmHg)], the temperature range from the beginning of the fifth drop of distillation to the time when only 3~4ml or a certain proportion of the volume of the test sample is distilled.

Some liquid drugs have a certain distillation range. The determination of distillation range can distinguish or check the degree of pure impurity of drugs.

It adopts embedded computer, imported INDUSTRIAL computer, large LCD touch screen, friendly man-machine interface, easy to operate.

Using single chip microcomputer and intelligent control technology, the distillation test process of temperature and cooling, distilling liquid level tracking, distillation rate control, recovery of liquid volume control, temperature record, test results printing, etc., are all completed automatically.

Main Performance characteristics

1. The three curves of steam temperature, heater temperature and distillation rate of the whole test process can be displayed in real time to determine whether the relevant indexes meet the requirements of the test standards.

2. Adopt import compressor, import temperature detection sensor, automatic high-subdivision step level tracking system and other key components and devices, the test results are accurate and reliable, with good repeatability.

3. Applicable standard and distillation procedures can be added according to user needs and test samples, and can be called at any time.

4, with the atmospheric pressure automatic detection function, automatic completion of pressure correction, the test results are not affected by atmospheric changes.

5. Fill the cold bath with antifreeze, built-in circulation stirring, equipped with liquid level sensor and overflow pipe to keep the water level in the bath normal

6. Equipped with flame detector, with automatic fire extinguishing function, to ensure the safety of the instrument.

Main technical indicators and parameters

Temperature range: room temperature~+500 ° C Accuracy ± 0.1 ° C
Temperature control range of cold bath (-5~ 60)℃
Temperature control precision of cold bath ±0.5℃;
Temperature control range of receiving room (0 ~ 40)℃;
Temperature control accuracy of receiving room ±1℃;
Display accuracy 0.1 ℃ steam temperature sensor: pt100 platinum resistor imported from Germany
Time from heating to initial boiling point: 5~15 minutes
Distillation rate (flow rate from initial boiling point to 95% recovery): 2~10ml/min (adjustable)
Time from 5ml residue in the flask to the end point no more than 5 minutes
The initial boiling point temperature detected by optical fiber sensor
Distillation heater 1000W, 24V;
Measuring range of recovery volume: 0-100ml
Measurement accuracy of distillate liquid product

≤ 0.1ml;


Volume measurement: liquid level tracking system, mainly composed of stepping motor and optical fiber liquid level sensor, with each step of 0.01ml
Cooling system compressor refrigeration
Power supply AC(220±10%) V, 50Hz;
Overall power consumption 2500W
Operating environment

Ambient temperature (10-35);

Relative humidity ≤80%;

external dimension 500 mm ×530 mm ×660 mm
Main engine weight 85KG


Packing list


S/N Name Quantity unit Remarks
1 Host 1 SET
2 Sensor 1 PIECE
3 Distillation flask 1 PIECE
4 Special measuring cylinder 1 PIECE
5 heating plate 1 SET
6 deflector 1 SET
7 Cleaning line 1 PIECE
8 power cord 1 PIECE
9 fuse tube 1 PIECE
10 Operating instruction 1 COPY
11 packing list 1 COPY
12 Certificate of approval 1 COPY

ST206 Fully Automatic Distillation Range Analyzer For Drug Testing Instruments 0ST206 Fully Automatic Distillation Range Analyzer For Drug Testing Instruments 1ST206 Fully Automatic Distillation Range Analyzer For Drug Testing Instruments 2
