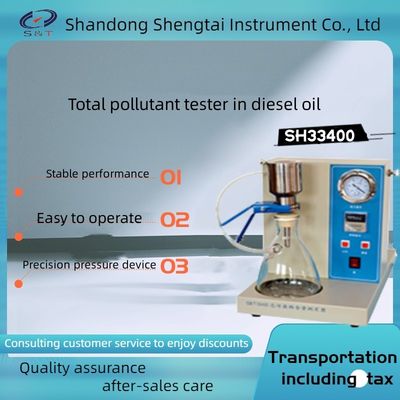

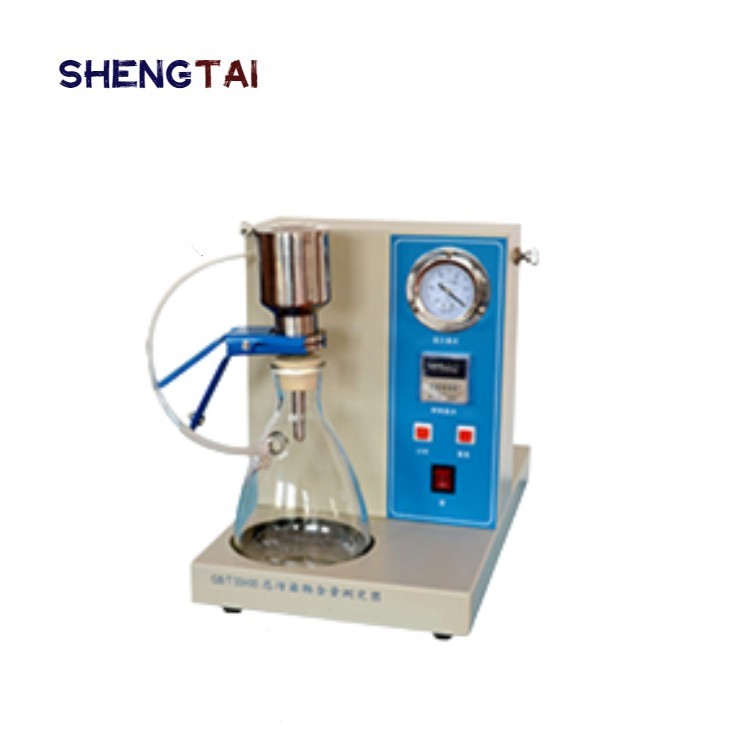

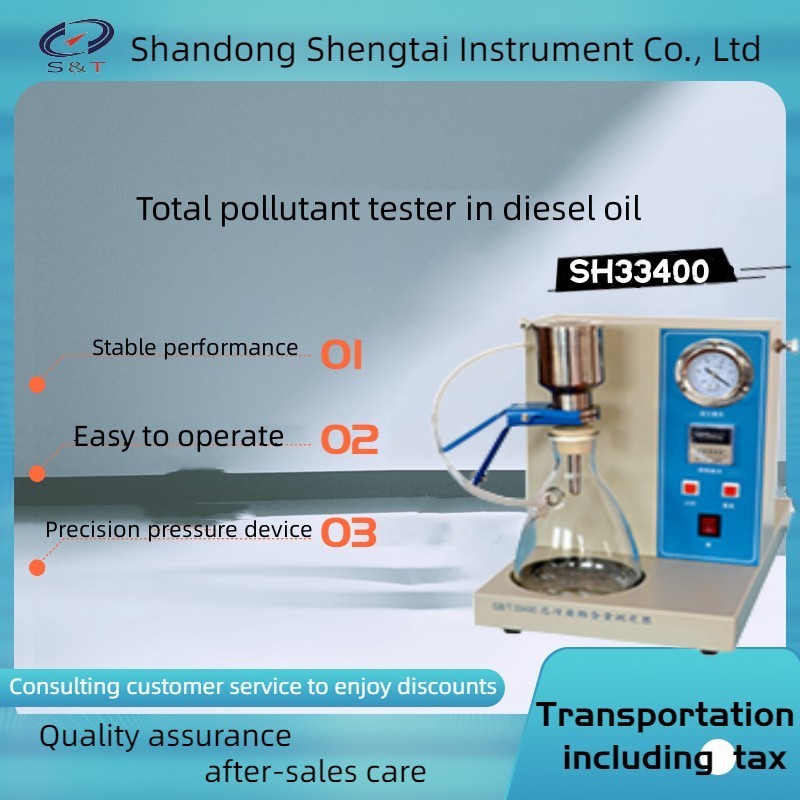

SH33400 Diesel Total Pollutant Detector In Middle Distillate Oil

Determination Of Total Pollutants In Middle Distillate Oil, SH33400 Diesel Oil And Fatty Acid Methyl Ester

SH33400 Diesel total pollutant detector is our company in accordance with the standard GB/T 33400-2016 "intermediate distillate oil, diesel oil and fatty acid methyl ester total pollutant content determination method" standard.
Used for the determination of total pollutant content in intermediate distillate oil, diesels and pure fatty acid methyl ester (BD100) whose volume fraction of fatty acid methyl ester is not more than 30% according to standard.
It is also used for the moving viscosity of not more than 8 mm2/s at 20℃, or the moving viscosity of not more than 5 mm2/s at 40℃, and the total pollutant content of 12 mg/kg ~ 30 mg/kg of the sample, and the precision is specified;
It is also applicable to samples with total contaminant content in this range, whose precision is not specified.
Performance characteristics
1, filter, large capacity
2, filter membrane pad aperture is uniform, protect the filter membrane from damage
3. Equipped with vacuum pump, the vacuum pumping pressure system is balanced and stable
4, Precise pressure device, reliable control, convenient adjustment
Main technical specifications and parameters
1, working power supply: AC220V±10%, 50Hz
2, vacuum degree: pressure 2KPa ~ 5KPa (pressure gauge corresponding pressure is -0.099Mpa ~ -0.096Mpa)
3, filter volume: 500ml
4, filter membrane diameter: 47mm;
Aperture 0.7 microns
5. Instrument size: 350*280*420mm Weight: 12kg



Packing list
