GB/T269 Standard Lubricating Grease Cone Penetration Tester SD2801A High Accuracy
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SD-2801A | Measuring Range | 0 ~ 700 Cone Degree |
---|---|---|---|
The Time Error | Less Than ±0.1 Seconds; | Coning Accuracy | ±1 Coning Degree |
Temperature Control Mode | High Accuracy Digital Temperature Controller | Constant Temperature Bath | Hard Glass Bath |
Standard Needle | 2.5±0.05g | ||
High Light | Lubricating Grease Cone Penetration Tester,GB/T269 Cone Penetration Apparatus,GB/T269 Standard Cone Penetration Tester |

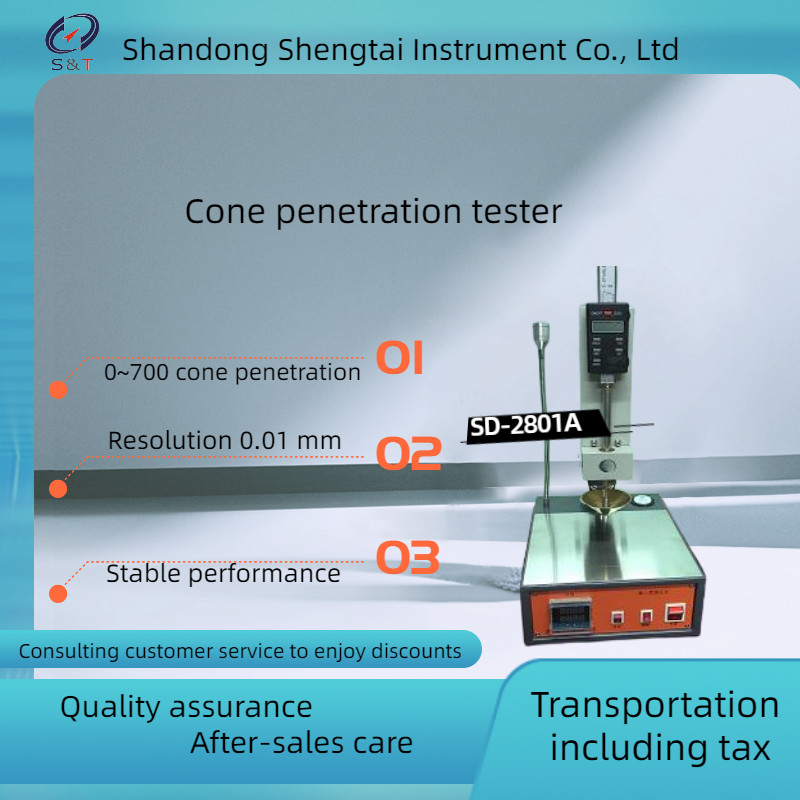

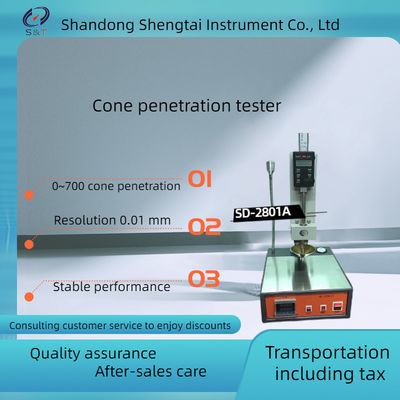

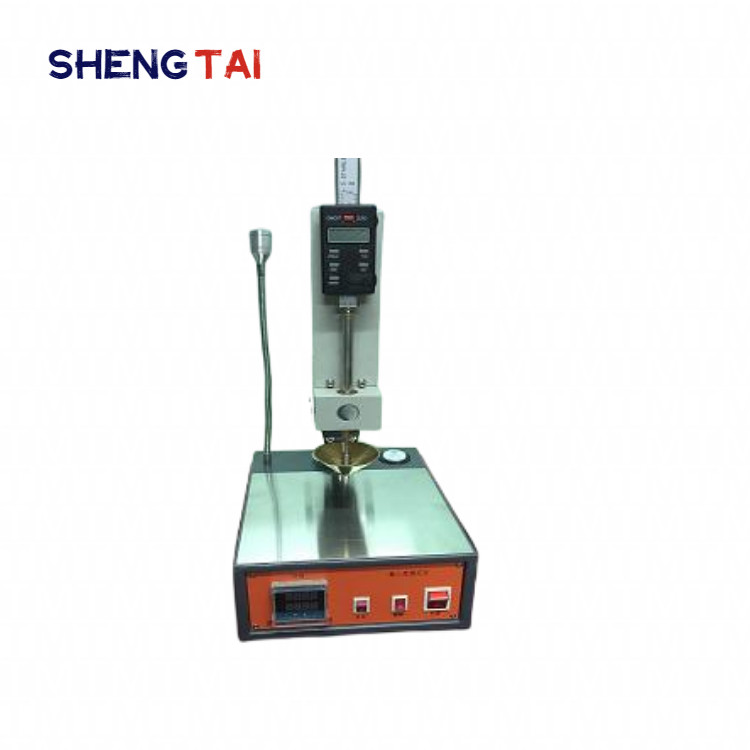

SD-2801A cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the People's Republic of China standard GB/T269 "Grease and petroleum grease cone penetration determination method". It is mainly suitable for testing the cone penetration of grease.
The instrument can also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments can be widely used.
GB/T269 Standard Lubricating Grease Cone Penetration Tester SD2801A
Cone Penetrometer GB/T269Lubricating Grease Cone Penetration Tester
GB/T269 Lubricating Grease Cone Penetration Tester
Lab GB/T269 Lubricating Grease Cone Penetration Testing Equipment
Standard Penetration Test GB/T269 Dynamic Grease Cone Penetrometer
I. Main technical features
1, the use of digital display to display the taper value, intuitive and eye-grabbing.
2. Digital display of cone entry time control device.3, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.
II. Main technical parameters and indicators
measuring range | 0 ~ 700 cone degree |
the time error | less than ±0.1 seconds; |
coning accuracy | ±1 coning degree |
standard | national standard GB/T269 |
resolution | 0.01㎜ |
Instrument size: 340*282*515 weight: 11kg |
Timing controller | Time can be set according to their own needs, the time error is less than ±0.1 seconds; |
Measurement range | (0~700) penetration scale |
Resolution | 0.01mm |
Temperature control accuracy | 25±0.1ºC (Note:The ambient temperature shall not exceed 20 ºC) |
Temperature control mode | High accuracy digital temperature controller |
Constant temperature bath | Hard glass bath |
Working power supply | 80W |
Standard needle | 2.5±0.05g |
Stirring | automatically stirred by a magnetic stirrer |
Standard cone | 102.5±0.05g |
Needle holder | It can be adjusted roughly and finely. Convenient toad just and exact to aim the sample |
Others | Equipped with a cold light source and a magnifier; Convenient for operation and observation |
Packing list:
S/N | Name | Unit | Quantity | Remarks |
1 | Instrument host | set | 1 | |
2 | Standard cone | piece | 1 | |
3 | Connecting rod | piece | 1 | |
4 | Sample holder | piece | 1 | |
5 | Fuse 5A(∮5×20) | piece | 1 | |
6 | Power cord(250V 6A) | piece | 1 | |
7 | instructions | copy | 1 | |
8 | Certificate warranty card | copy | 1 |
