ASTM D86 Fully automatic distillation range measuring instrument guided operation compressor refrigeration ST206

Automatic Pharmacopoeia Distillation Apparatus Pharmaceutical Testing Instruments According To 2020 "China Pharmacopoei

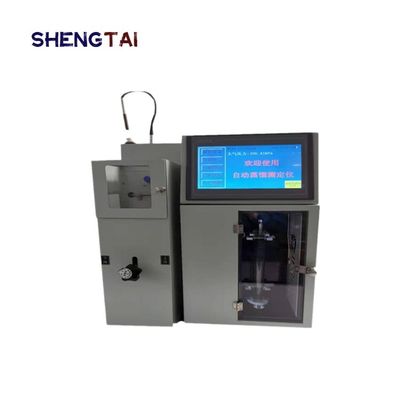

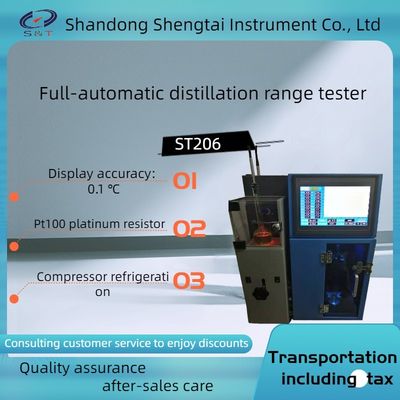

ST206 automatic pharmacopoeia distillation unit USES color LIQUID crystal display screen, menu man-machine dialogue, wizard operation, the measurement process is all automated,apply to the standard of the 2020 "China pharmacopoeia

The distillation range refers to the temperature range of a liquid distilled by the following method, calibrated to the standard atmospheric pressure [101.3kpa (760mmHg)], from the beginning of the fifth drop until only 3 ~ 4ml or a certain proportion of the volume of the test product is left.

Automatic Distillation Apparatus ASTM D86 for Petroleum Products

Fully Automatic ASTM D86 Distillation Apparatus for Biofuel (DIL-100Z)

ASTM D86 Lab Automatic Petroleum Distillation Device Laboratory Distillation Apparatus

Some liquid drugs have a certain distillation range. The determination of distillation range can distinguish or check the degree of pure impurity of drugs.

It adopts embedded computer, imported INDUSTRIAL computer, large LCD touch screen, friendly man-machine interface, easy to operate.

Using single chip microcomputer and intelligent control technology, the distillation test process of temperature and cooling, distilling liquid level tracking, distillation rate control, recovery of liquid volume control, temperature record, test results printing, etc., are all completed automatically.

Main Performance characteristics

1. The three curves of steam temperature, heater temperature and distillation rate of the whole test process can be displayed in real time to determine whether the relevant indexes meet the requirements of the test standards.

2. Adopt import compressor, import temperature detection sensor, automatic high-subdivision step level tracking system and other key components and devices, the test results are accurate and reliable, with good repeatability.

3. Applicable standard and distillation procedures can be added according to user needs and test samples, and can be called at any time.

4, with the atmospheric pressure automatic detection function, automatic completion of pressure correction, the test results are not affected by atmospheric changes.

5. Fill the cold bath with antifreeze, built-in circulation stirring, equipped with liquid level sensor and overflow pipe to keep the water level in the bath normal

6. Equipped with flame detector, with automatic fire extinguishing function, to ensure the safety of the instrument.

Main technical indicators and parameters

Packing list

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
