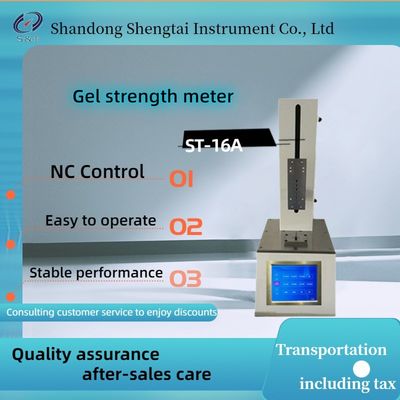

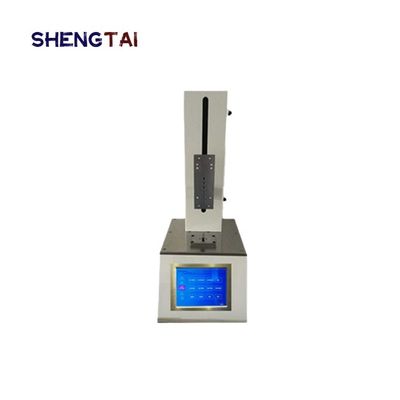

ST-16A The touch gel strength tester is easy to operate, and the speed of two-way test mode can be set freely

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST-16A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST-16A Test Speed 0.5~500mm/min(0.008mm/s-8.33mm/s) Can Be Set At Will
Precision Level 0.5 Range 0-200N
Travel Trip 300mm Power Supply 220V, 50Hz (or 110V, 60Hz)
High Light

Plaster Softening Point Tester

,

Automatic Detection Softening Point Tester

Leave a Message
Product Description

ST-16A gel strength tester can be used to test the gel strength values of minced meat, jelly, protein, gelatin, carrageenan, agar, agar, high absorbent resin, polymer hydrogel, butter, cream, fish balls, dairy products, polymer for oil field, or force values under preset conditions.

The instrument is easy to operate, without complex training, one-click operation, curve and results automatically display in real time.

Performance characteristics

1. Microcomputer control, menu interface, PVC operation panel, and large LCD display.

2. Set setting, view, clearing, calibration and other functions

3. Conduct the statistical analysis of the group samples, and give the maximum and minimum values

4. The system supports the tensile and compression bidirectional test mode, and the speed can be set freely



Applicable standards:

◆ national standard food additive gelatin gb6783

◆ national standard hard gelatin capsules for medical use gb13731

◆ industry standard pharmaceutical gelatin qb2354

◆ industry standard industrial gelatin QB/T1995

◆ industry standard bone glue QB/T 1996

◆ industry standard photographic gelatin qb1997

◆ GB / T36187 Frozen Surimi

◆ GB28304 available natural rubber

Technical parameter

Force measurement unit

N, kg, Bloomg, g/cm3



Test speed

0.5~500mm/min(0.008mm/s-8.33mm/s) can be set at will



Length unit mm
Precision level 0.5
Range 0-200N
Function

gel strength or maximum value



Travel trip

300mm



Clamp configuration

cylindrical probe diameter of 12.700±0.010mm (pharmaceutical factory)

The cylindrical probe is 0.5cm GB28304 straight

Spherical probe at 5mm GB / T36187

Standard test bottle: capacity =150ml inner meridian =59mm height =85mm meet GB6783

Pharmaceutical gel strength matched with cryostat device (optional)



Power supply

220V, 50Hz (or 110V, 60Hz)







Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.



Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
