ST204B Automatic Pinstar Kinematic Viscosity Tester Chinese Pharmacopoeia In 2020

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST204B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL ST204B General Temperature Control Range Room Temperature +5℃ ~ 100.0℃
Temperature Control Accuracy ±0.1℃ Timing Range 0.0s ~ 999.9s
Number Of Samples 2 Sets Of Capillary Viscometers (viscosity Coefficient Range Shall Be Indicated When Ordering); Name Automatic Pinstar Kinematic Viscosity Tester Chinese Pharmacopoeia In 2020
High Light

iso 9001kinematic viscosity tester


automatic pinstar kinematic viscosity tester


pharmaceutical testing kinematic viscosity tester

Leave a Message
Product Description

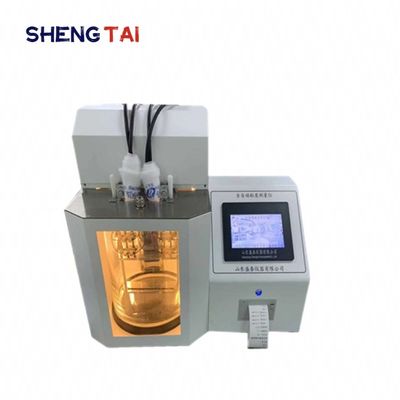

       ST204B automatic Pinstar kinematic viscosity tester is suitable for the design and manufacture of viscosity measurement method based on general principle 0633 of Chinese Pharmacopoeia in 2020. This method adopts relative method to measure the time required for a certain volume of liquid to pass through the capillary under the action of gravity, so as to obtain the kinematic viscosity of the fluid.


         ST204B automatic drug kinematic viscometer has a series of automatic functions, such as automatic constant temperature, automatic extraction, automatic timing, automatic calculation, automatic printing, automatic cleaning, automatic drying, etc. When in use, the test can be completed by one sample injection and clicking start.


Viscometer tube Pinstar viscometer
Number of samples 2 sets of capillary viscometers (viscosity coefficient range shall be indicated when ordering);
Temperature range Ambient to 100.0ºC
Measurement range product viscosity measurement range: 0.6-17000 m m2/s
Timing accuracy ±0.1 s
Power supply AC 220V±10%, 50 Hz
Maximum power consumption 2000 W
Ambient temperature: 0ºC~ 40ºC
Relative humidity 20 ~ 90% at 40 ºC
Dimension 490*600*490mm


Main technical indexes

The display mode is a 7-inch color touch screen.

Using embedded system design, the whole test process automatic detection, automatic printing.

The main parts and electronic components of the instrument are imported, with good stability.

The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.

The test results can be exported through the U disk.

Storage: Experimental results can be stored in 199 groups of historical data for easy query;

Result output: At the same time can be equipped with U disk output function, output to the PC side for long-term storage

Output format: The output format of the usb flash disk is CSV or Excel.

Data extension: laser printer interface, HP1108 laser printer can be linked (optional).

Data protection: With date password setting function.

Standard printing: standard printing with micro printer automatic measurement automatic thermal sensitive printing


Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later (optional).

Data management: Can connect to limIS system (optional).

Data memory: Microcomputer instrument memory can be expanded to 16 gigabytes.

Equipped with LED soft light, filling light uniform, easy to observe.

The test results can be stored;

You can view the historical data.

The result is printed on the instrument. The bath contains automatic mechanical stirring

It has the function of setting the hierarchical password.


The viscosity was determined according to general rule 0633 of 2020 Chinese Pharmacopoeia


General temperature control range

room temperature +5℃ ~ 100.0℃


Temperature control accuracy ±0.1℃;
Timing range 0.0s ~ 999.9s;
Timing accuracy no more than ±0.01%
Number of samples 2 sets of capillary viscometers (viscosity coefficient range shall be indicated when ordering);
Service environment Ambient temperature 10℃ ~ 35℃, relative humidity ≤ 85%;
Temperature sensor Pt100 platinum resistance
Rated power 1800W

ST204B Automatic Pinstar Kinematic Viscosity Tester Chinese Pharmacopoeia In 2020 0ST204B Automatic Pinstar Kinematic Viscosity Tester Chinese Pharmacopoeia In 2020 1
