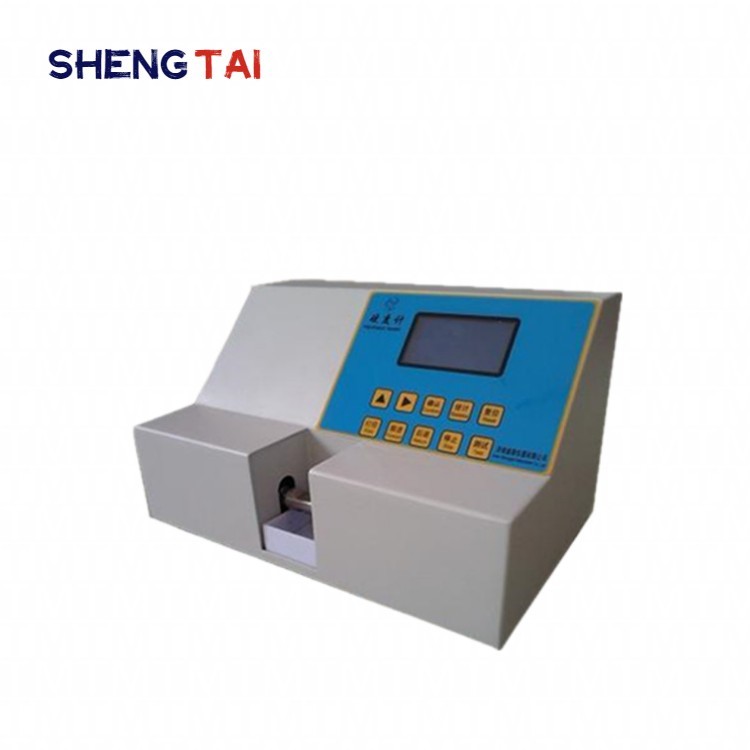

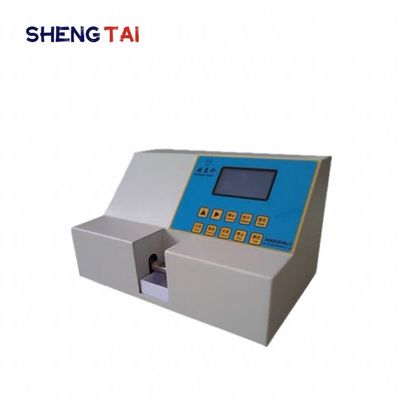

Laboratories Drug 300N Tablet Hardness Tester Machine With Thermal Micro Printer
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST220 | Maximum Pressure Measured | 10N-300N |
---|---|---|---|
Measurement Accuracy | ±0.1% | Resolution | 0.01kg (0.1n) |
Input Power | 15W | Printer | Thermal Micro Printer |
High Light | laboratories tablet hardness tester machine,300n tablet hardness tester machine,thermal micro printer tablet hardness tester |
ST220 tablet hardness tester is a special instrument used to test the hardness of tablets. This instrument is suitable for the hardness test of tablets and is a necessary instrument for laboratories of pharmaceutical factories, pharmaceutical teaching and research, scientific research and drug testing departments.
Structural Features:
The instrument adopts high-speed single chip microcomputer control system, has super data processing capacity, adopts high-precision pressure sensor measurement, automatically tests the maximum, minimum, average, standard deviation and discrete coefficient report of the tablet, and the result data can be printed.
The output display mode is blue LCD, easy to operate and intuitive.
High precision motor feeding mechanism automatic measurement, uniform force, to avoid each force uneven error.
Test Principle:
When the maximum value is reached, the tablet drug or particle automatically breaks the moment, and the hardness value is recorded.
Main technical parameters:
Maximum pressure measured :10N-300N
Maximum diameter measured: 20mm
Measurement accuracy: ±0.1%
Resolution: 0.01kg (0.1n)
Input power: 15W
Power source 220 v + 10% for 50 hz
Printer: Thermal micro printer
Maximum pressure measured | 10N-300N |
Measurement accuracy | ±0.1% |
Input power | 15W |
Maximum diameter measured | 20mm |
Test period | ≯20S/P |
Max number in each group | 100P |
Power | 220 v + 10% for 50 hz |
Dimension | 500*300*160mm |
