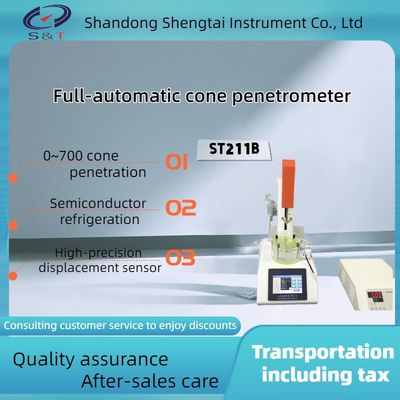

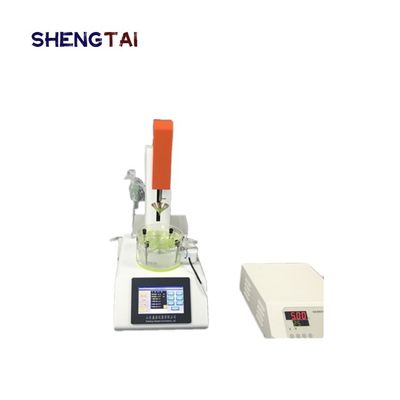

ST211B fully automatic constant temperature Vaseline and ointment cone penetration tester semiconductor refrigeration

ST211B automatic yellow/white Vaseline ointment cone Penetration tester is designed and manufactured in accordance with the technical requirements and relevant regulations of pharmacopoeia 2020 0983 cone Penetration law and is mainly suitable for testing the coning degree of Vaseline and ointment.

This instrument can also be used for the inspection of solid fine grain, powder, colloid, jelly and other materials, as well as food raw materials such as cheese, sugar gum, butter, wheat gluten, cream and fermentation, etc. It can be widely used in food industry, traffic highway engineering and other industrial sectors.

Main technical features

Meet the standard: Chinese Pharmacopoeia

1. Upgrade to 7-inch TFT color LCD display;

2. Constant temperature refrigeration: external semiconductor refrigeration.

3. Detection method: high-precision displacement sensor.

4. After upgrading, 199 sets of historical data can be stored for easy query;

At the same time, U disk output function

5, standard micro printer automatic measurement automatic printing

6. Hierarchical management of accounts

Main technical parameters and indicators

Standard: Chinese Pharmacopoeia

Measurement range: 0 ~ 700 coning degree;

Constant temperature refrigeration: external semiconductor refrigeration

Resolution: 0.01㎜;

Precision of coning: ±1 degree of coning;

Standard cone: 1 cone: Ⅰ cone quality ± 0.05 g and 102.5 g supporting cone rod quality 47.5 g - 0.05 g;

Cone: 2 # Ⅱ cone quality ± 0.025 g and 22.5 g supporting cone rod quality of 15 g ± 0.025 g

Cone: 3 # Ⅲ cone, cone screw 9.38 g± 0.025 g total quality

Others: equipped with cold light source, easy to use and operate.

Storage: Experimental results can be stored in 199 groups of historical data for easy query;

Result output: At the same time can be equipped with U disk output function, output to the PC side for long-term storage

Output format: The output format of the usb flash disk is CSV or Excel.

Data protection: With date password setting function.

Standard printing: standard printing with micro printer automatic measurement automatic thermal sensitive printing

Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later

Data management: LimIS system can be connected to

Account management: According to the password to set up the account management layer, can set up the total account and sub-account.

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
