Grease Worker According to GB/T269-91Grease and petroleum grease cone penetration determinationASTM D217 ISO2137 Petrol

SH269 Grease Worker according to GB/T269-91 "Grease and petroleum grease cone penetration determination" test standard requirements in the specified test conditions, after the change of mechanical shear work to judge the mechanical stability of grease, to extend the work cone penetration or shear stability, the unit is 0.1mm.

ASTM D217 ISO2137 Petroleum Products Lubricants Tester

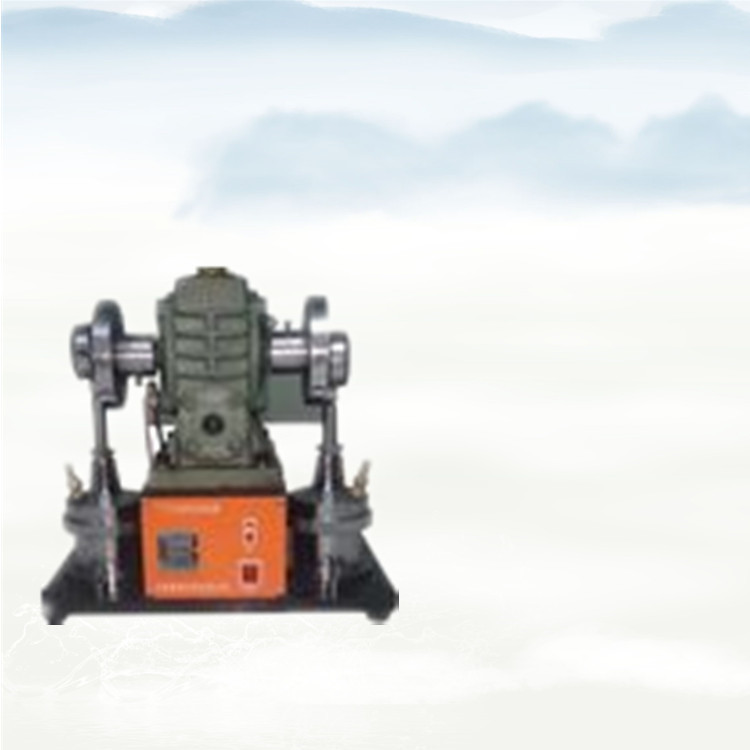

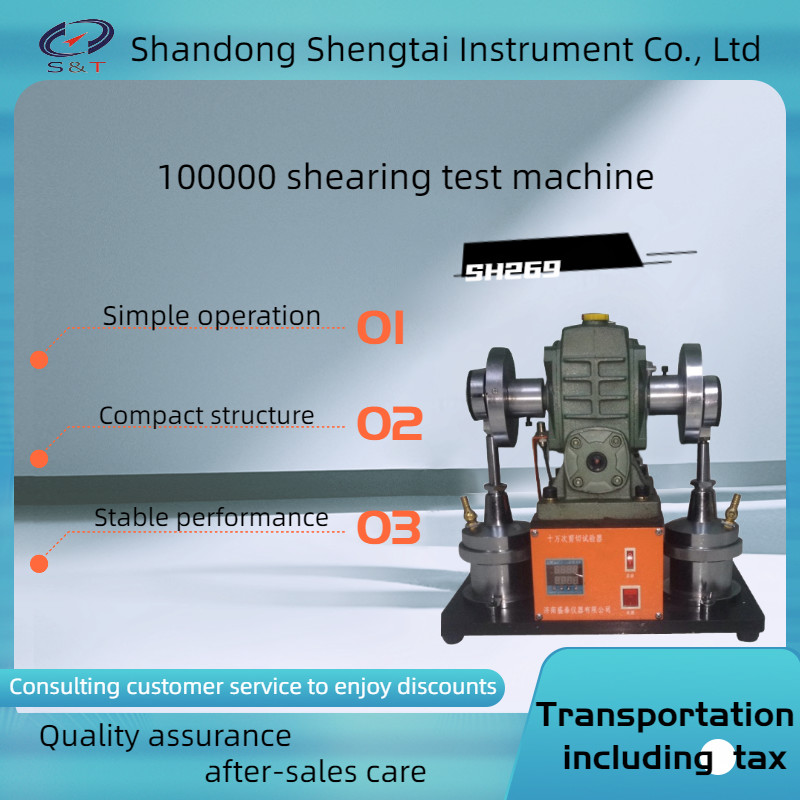

Mechanical Grease Worker

Performance characteristics:

1 the use of motor drive reducer to achieve 60 times/min shear rate

Extended coning test and optional shear stability test

The display can display the cutting times by itself

4 Counter can count by itself

5 the whole instrument structure is compact and complete

A special cooling fan is installed behind the motor to ensure the continuous operation of the whole instrument

1) Motor: Horizontal single-phase capacitor starting motor speed: 1400 RPM

2) Coupling: plum shaped elastic coupling

3) Worm gear reducer: double outlet gear reducer with transmission ratio of 25:1 is adopted. A pair of eccentric mechanisms are installed on the cochlear shaft on both sides of the reducer.

4) Shear rate: 60 times/min

5) Maximum counting capacity: 99999

6) Thermometer: the use of bimetal thermometer, the range of 0 ~ 50℃, grading for 0.5℃

7) grease working stroke of the work: 67-71 - mm, orifice plate on each hole diameter: 6.35 + 0.13 Ф

8) Power supply: AC220, 50Hz

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
