Manual ASTM D93 Flash Point Tester Binsky Martin Closed Mouth Cup Method

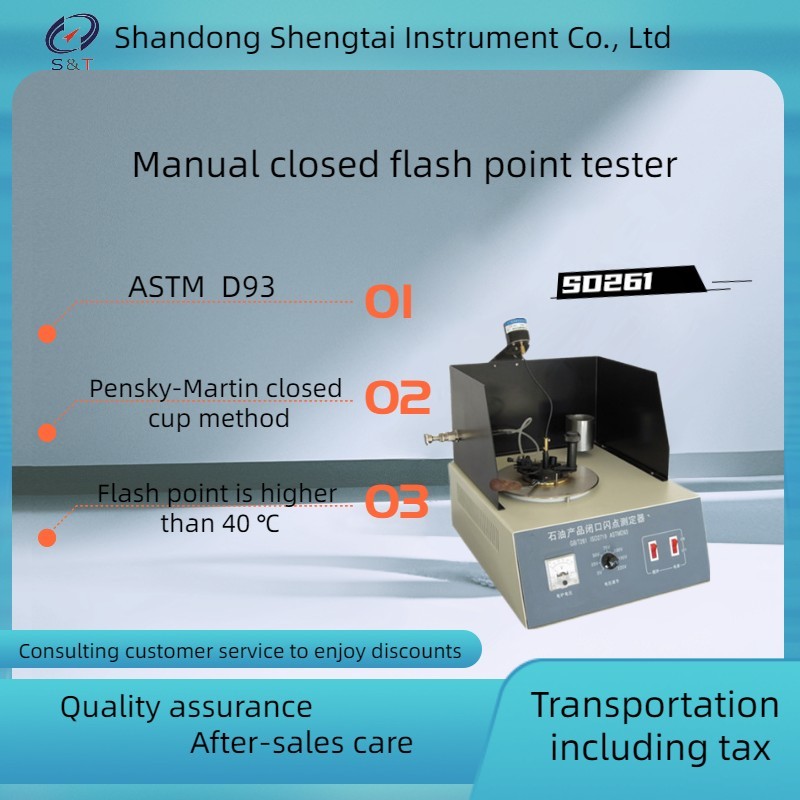

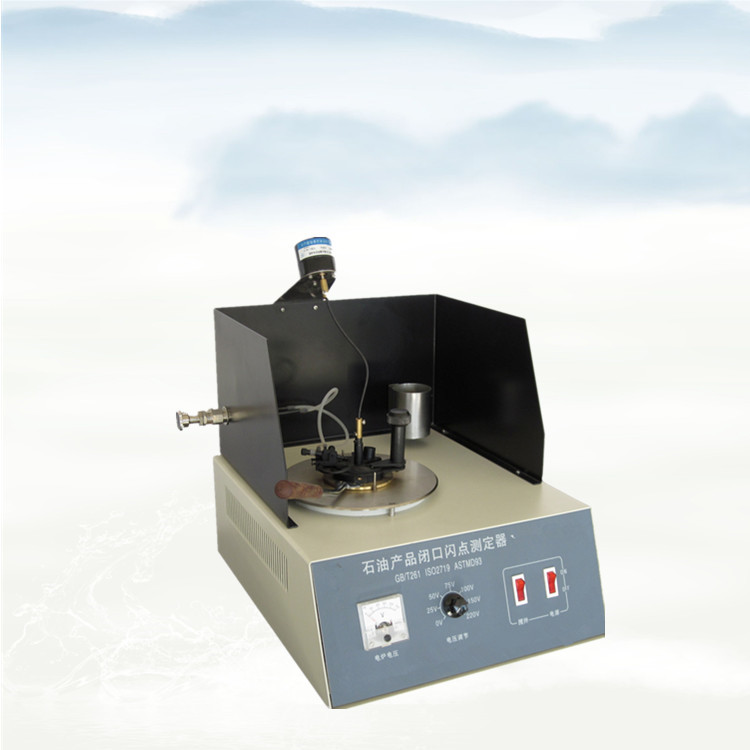

   SD261 closed mouth flash point meter is designed and manufactured in accordance with the requirements of the national standard GB/T 261-2008 "determination of flash point Binsky-Martin closed mouth cup method". It is suitable for the determination of the flash point of petroleum product samples with a flash point above 40℃ by the method specified in the GB/T 261-2008 standard.

I. Main technical features

1. The design of the instrument fully conforms to the requirements of GB/ T261-2008 standard.

2, Heating power continuous, stepless adjustable.

II. Main technical parameters and indicators

1, working power supply: AC220V±10%, 50Hz.

2, Heating device: heating power from 0 ~ 600W continuously adjustable.

3, the sample heating rate: 1 ~ 12℃/ min.

4, standard oil cup: ⑴ Inner diameter: 50.7 ~ 50.8 mm.

⑵ Depth: 55.7 ~ 56.0 mm.

(3) Test capacity notch depth: 33.9 ~ 34.3 mm.

(4) Test capacity: about 70 ml.

5, ignition device: ⑴ ignition source: gas (or other civil combustible gas, the same below).

⑵ Firearm aperture: 0.8mm.

6, thermometer: bar mercury thermometer, in line with GB/T 261-2008 standard requirements.

Packing list:

Customer provided: air source and air source required pressure reducing valve
