The ST120K particle crushing strength meter automatically measures and produces results automatically

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST120K
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST120K Test Speed 0.5-500 ㎜/min
Test Stroke 200 ㎜ Force Measurement Accuracy Better Than ± 1%;
High Light

Automatic Eggshell Strength Tester

,

LCD Display Feed Testing Instrument

,

LCD Display Eggshell Strength Tester

Leave a Message
Product Description



The ST120K particle crushing strength tester is designed and manufactured in accordance with the requirements of GB/T2946-2018 for the determination of ammonium chloride and GB/T2945 for the determination of ammonium nitrate. It meets the requirements of national standards, and is continuously optimized, innovated, and optimized. The electrical control system achieves simplified operation, making the operation more simple, convenient, and reliable. HG/T2783-1996 Test Method for Compressive Crushing Strength of Molecular Sieves, HG/T3927-2007 Determination of Compressive Strength in Industrial Activated Alumina



Functional features:



1. Real-time display of force value curve trend graph

2. Automatic shutdown can be achieved by setting the positioning displacement to reach the set distance.



3. Compression test, automatic shutdown after the product is compressed to the maximum value.



4. Automatically measure the size of particle strength, automatically produce results, and automatically calculate the maximum and minimum values for multiple sets of data.



Technical parameter



(1) Force measurement resolution: 1/10000 (e.g., 200kg ÷ 10000=0.02kg);



2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001)



(2) Force measurement accuracy: better than ± 1%;



(3) Displacement resolution: 0.01mm



(4) Test speed: 0.5-500mm/min;



(5) Test stroke: 200mm;



(6) Machine weight: about 18kg;



(7) Overall dimension: 300 * 420 * 650 mm



(8) Power supply: single-phase, AC220v50hz.

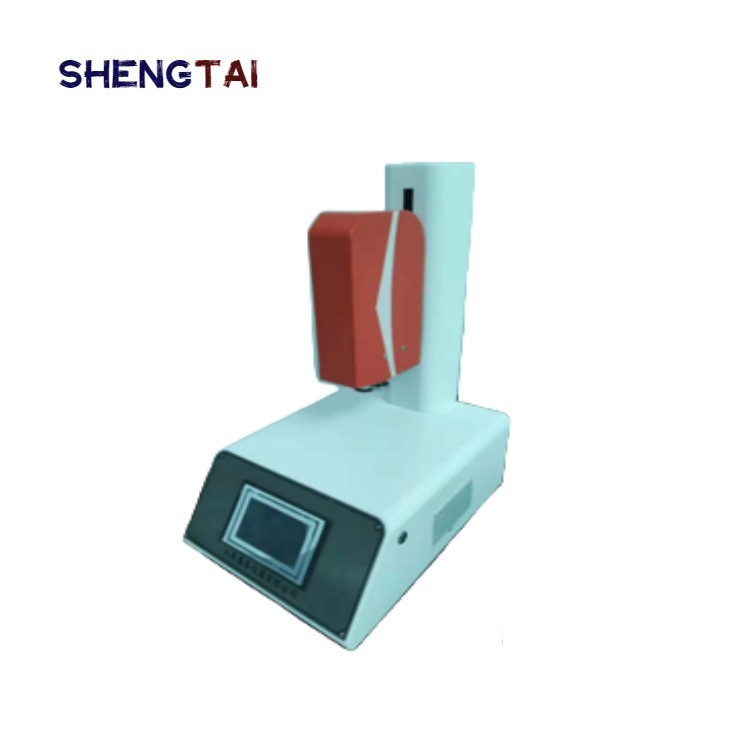

The ST120K particle crushing strength meter automatically measures and produces results automatically 0





Product Packing List

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Power cord 1 piece
3 Fuse tube 1 piece 10A in the safety seat
4 instruction manual 1 Copy
5 Certificate warranty card 1 copy

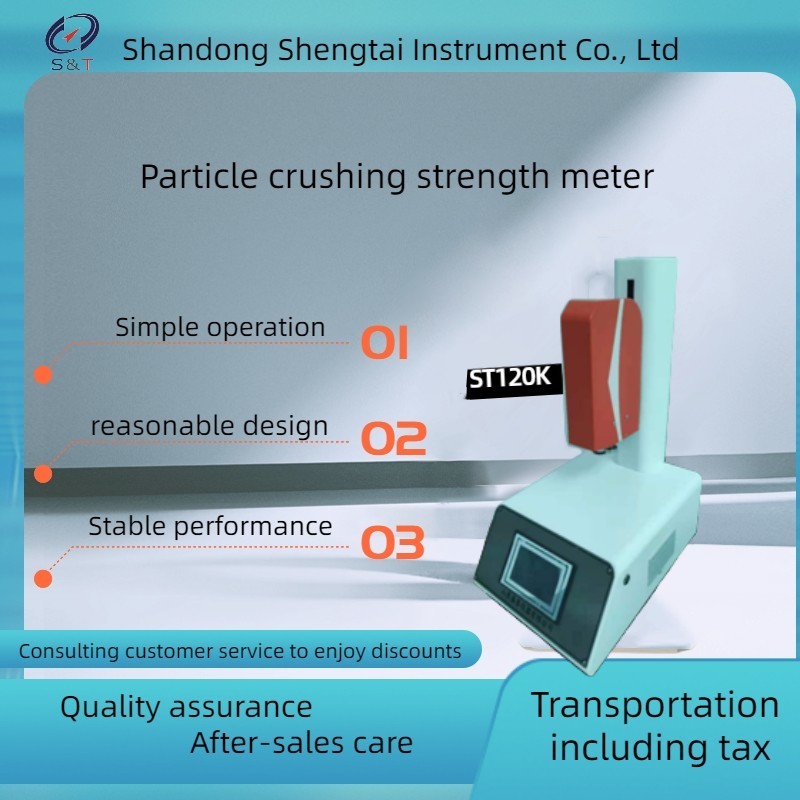

The ST120K particle crushing strength meter automatically measures and produces results automatically 1The ST120K particle crushing strength meter automatically measures and produces results automatically 2

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated

The ST120K particle crushing strength meter automatically measures and produces results automatically 3
