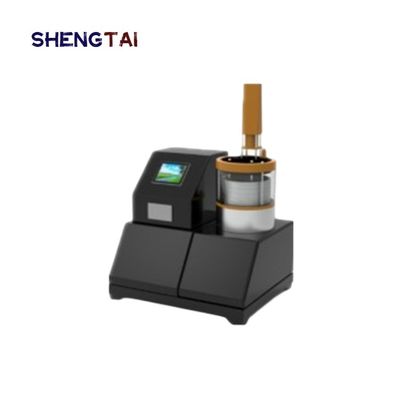

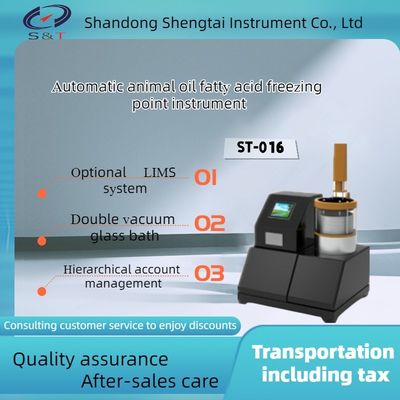

Pharmaceutical Test ST-016 Automatic Fat and Fatty Acid Freezing Point Instrument Double layer Vacuum Glass Bath

  Summary

The ST-016 Automatic Fat and Fatty Acid Freezing Point Instrument is designed and manufactured according to the standard SN/T0801.17 "Determination of Freezing Point of Imported and Exported Animal Fat and Fatty Acid" and the 2020 Chinese Pharmacopoeia 0713 Fat and Fatty Oil Determination Method. It is suitable for measuring the freezing point of animal fat and fatty acid.

Technical parameter

● Working power supply: AC220V ± 10%; 50Hz.

● Working cold bath: Double layer vacuum glass bath.

Cold bath temperature control: -20 ℃~100 ℃

Temperature control accuracy: ± 0.1 ℃.

Storage method: The experimental results can be stored in 199 sets of historical data for easy query;

● Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage

Output format: The output format of the result USB drive is CSV or Excel.

Data management: can be connected to the LIMS system (optional)

Account management: Audit tracking account hierarchical management, three-level permission management (optional).

Data protection: With date and password setting function.

Standard printing: Standard micro printer for automatic measurement and thermal printing

Data extension: Laser printer interface, can be linked to HP1108 laser printer (optional)

Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out in the later stage

Data memory: The memory of microcomputer instruments can be expanded to 16GB.

Bath liquid stirring: The stirring motor automatically mixes, with a power of 6W and a speed of 1200r/min.

● Refrigeration system: Imported refrigeration compressor.

Sample stirring: synchronous reduction motor, 1 time/second.

● Environmental temperature: ≤ 30 ℃.

● Relative humidity: ≤ 85%.

Overall power consumption: around 1500W.

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
