Pinsky Martin Closed Cup Method Automatic Closed Flash Point Tester ASTM D93

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | GB 5085.4-2007 | Working Power Supply | AC220V±10%, 50Hz |
---|---|---|---|
Temperature Measurement | Measuring Range: Room Temperature ~ 390℃ | Base Parameters | Conforms To GB/T261-2008 Standard |
. Machine Power Consumption | No Greater Than 500 W | Modle | SH105B |
Highlight | ISO 2719 Flash Point Tester,Automatic Closed Flash Point Tester,ASTM D93 Flash Point Tester |

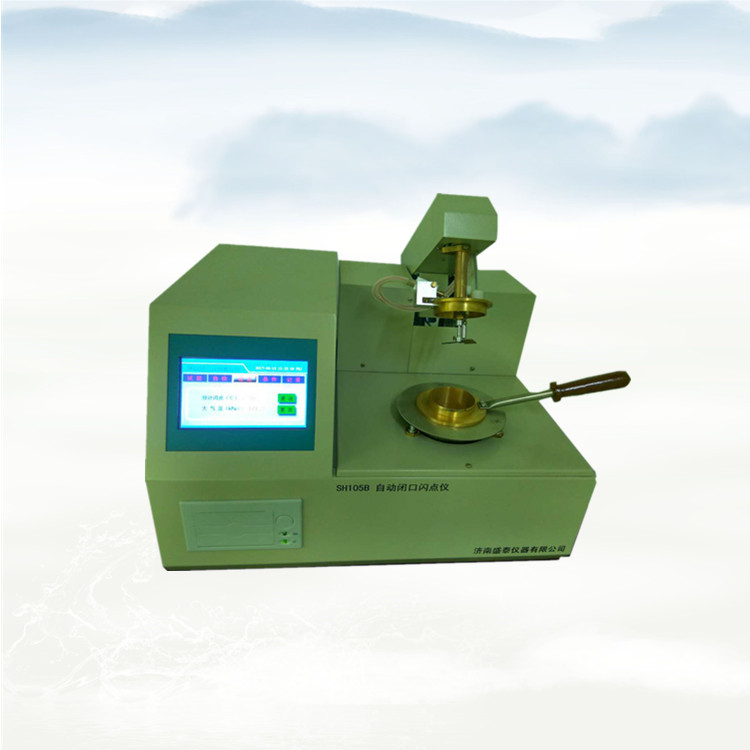

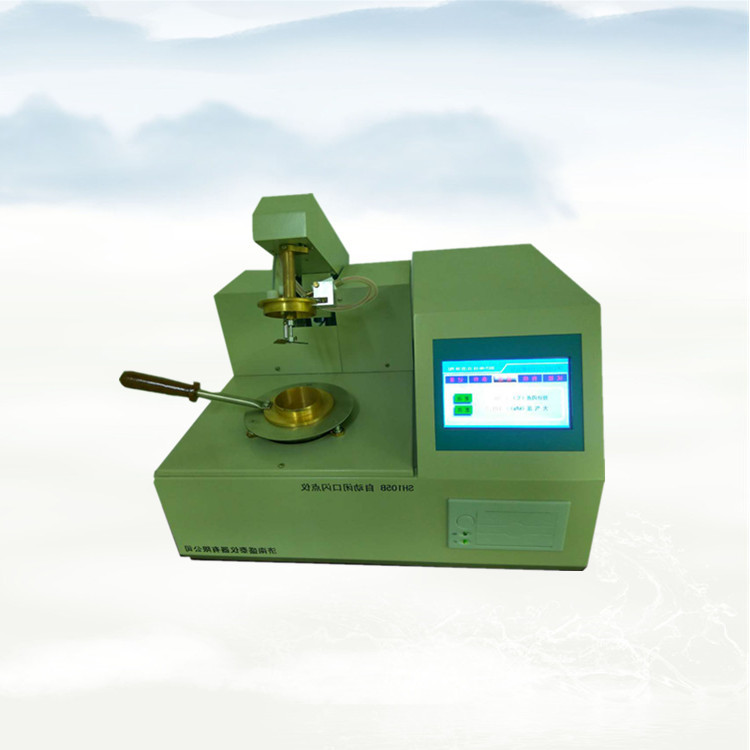

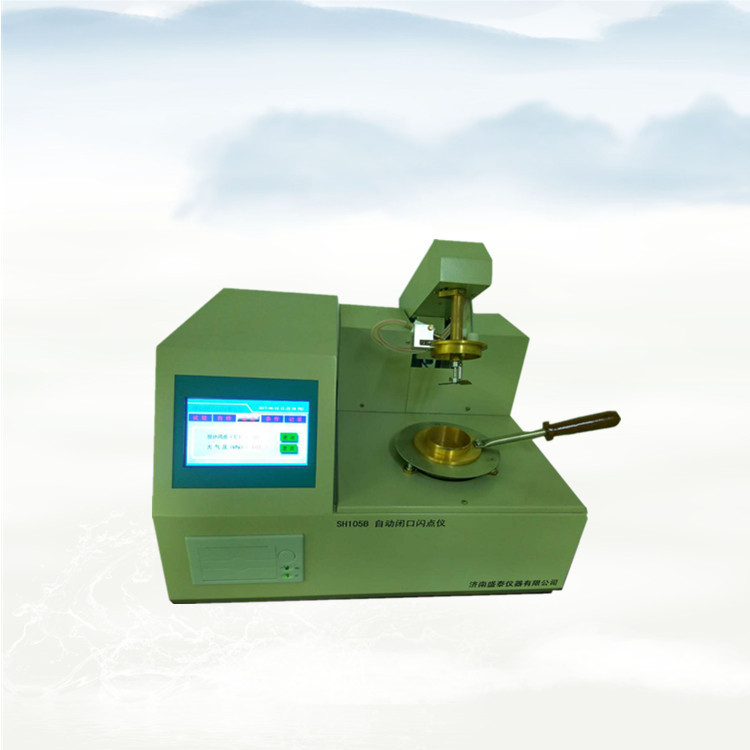

SH105B closed flash point automatic tester is designed and manufactured in strict accordance with the GB/T261 standard. It uses microcomputer technology and large screen LCD display.
The instrument is heated up, automatically raised and lowered, automatically ventilated, automatically ignited, automatically displayed, automatically locked flash point value, and automatically printed results according to the standard method. After the test, it can automatically cool down and realize the full automation of the working process. It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It is widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments. Comply with ISO-2719, ASTM D93, Pensky-Marten closed cup method GB261 GB 5085.4-2007
Main technical indexes and parameters and characteristics
1. The color LCD large screen display, full Chinese man-machine dialogue interface, no logo keyboard, can prevalue temperature, sample label, atmospheric pressure, test date and other parameters, with prompt menu guidance input.
2. Simulation tracking display temperature rise and test time function curve, with Chinese misoperation software prompt modification function with test date, test time and other parameters prompt function.
3. Equipped with standard RS-323,485 computer interface, the lower computer store 120 groups of historical data, the selection of software connected to the computer can store data in large capacity and long-term storage, transmission of data, the upper can modify the parameters of the lower computer in real time.
4. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.
5. The instrument has the function of overtemperature alarm and overtemperature automatic stop
6. Computer operation, Chinese operation prompt interface, automatic detection, automatic printing reports.
7. Cover opening, ignition, detection, printing data are automatically completed, and the test arm automatically rises and falls.
8. Electronic ignition, forced air cooling, no air source, automatic ignition.
9. Automatic ignition without air source is required to improve the safety of the test.
10. Power supply: AC220V±10%, 50Hz;
11 temperature measurement: range: room temperature ~ 390℃
12. Cardinal parameters: heating speed: in line with GB/T261-2008 standard;
A Step: Heating rate: 5 ~ 6B ℃/min
Step B: Heating rate: 1.0 ~ 1.5℃/min
Ignition mode: electronic ignition;
12. Ambient temperature: (10 ~ 40)℃; Relative humidity: ≤80%;
13. Power consumption: no more than 500W.
14. Instrument size: Overall size: 430*380*520 (mm), about 15kg
Packing List
S/N | Name | Quantity | Unit | Remarks |
1 | Automatic closing flash point meter | 1 | set | |
2 | Oil cup | 1 | piece | |
3 | AC power cord | 1 | piece | |
4 | Printing paper | 1 | piece | |
5 | Operating instruction | 1 | piece | |
6 | packing list | 1 | copy | |
7 | Certificate of approval | 1 | copy |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
