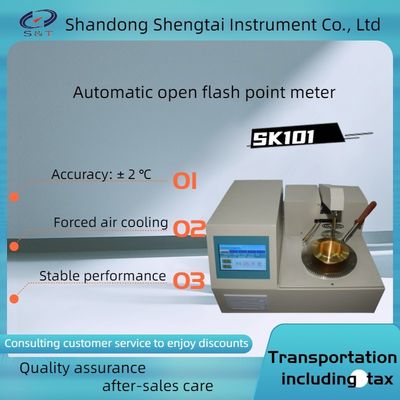

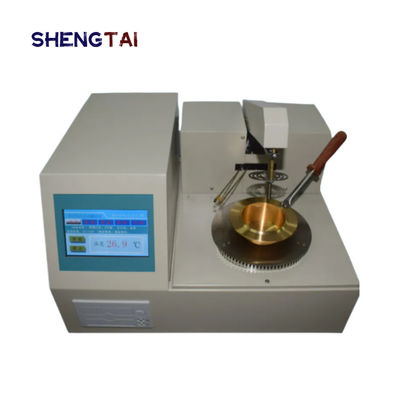

SK101 Automatic opening flash point meter with atmospheric pressure correction function and automatic ignition

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SK101
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SK101 Power Supply AC 220V ± 22V 50Hz ± 2.5Hz
Accuracy ± 2 ℃ Measurement Range Room Temperature~400 ℃
Operating Ambient Temperature 10 ℃~35 ℃ Operating Ambient Humidity ≤ 85%
High Light

Manual Thermostatic Coning Meter

,

Cone Penetration Tester

,

Constant Temperature Cone Penetration Tester

Leave a Message
Product Description

The instrument adopts a large screen LCD, and the computer controls the whole process of the test. The instrument has automatic temperature rise control, automatic ignition and scanning, automatic detection of flash point locking results, printing of results, and automatic shutdown of gas source. The instrument has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It is widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments.

SK101 automatic open flash point tester This open flash point automatic tester is designed and manufactured in accordance with the provisions of the national standards GB267-88 and GB3536-83 open flash point determination method.

Technical indicators



Display large screen full Chinese LCD module display.
Measurement range room temperature~400 ℃
Accuracy ± 2 ℃
Accuracy 0.1 ℃
Repeatability

flash point ≤ 150 ℃, error ± 2 ℃

Flash point ≥ 150 ℃ Error ± 4 ℃

Power supply AC 220V ± 22V 50Hz ± 2.5Hz
Power 100VA
Operating ambient temperature 10 ℃~35 ℃
Operating ambient humidity ≤ 85%
Air source no air source is required
Ignition mode automatic ignition
Cooling mode:

forced air cooling



Overall dimension:400X260X280MM Weight:15kg





Packaging and delivery

1. Goods packaging: standard wooden case or carton.

2 Internal packaging: elastic pearl cotton packaging products, hard board+strong bandage fixed corner.

SK101 Automatic opening flash point meter with atmospheric pressure correction function and automatic ignition 0

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated

SK101 Automatic opening flash point meter with atmospheric pressure correction function and automatic ignition 1
