GB/T 6536 Petroleum Distillation Tester " Petroleum Products Distillation Measuring Method "

Petroleum distillation tester China standard GB/T 6536 "Petroleum products distillation Measuring Method"

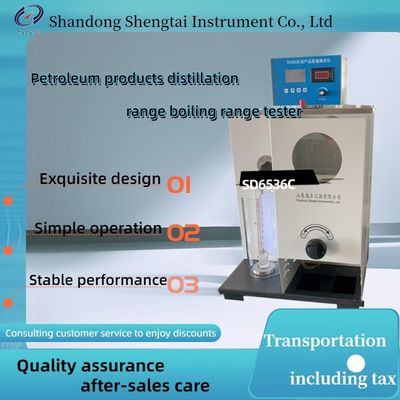

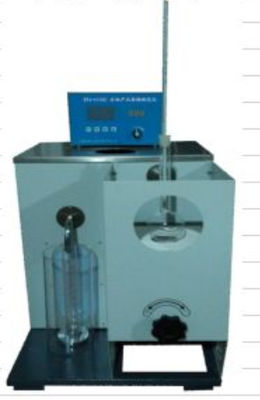

SD-6536C Petroleum distillation measuring instrument This instrument is designed and manufactured according to the requirements of the People's Republic of China standard GB/T 6536 "Petroleum products distillation Measuring Method". It is suitable for distillation determination of gasoline, aviation gasoline, jet fuel, special boiling point solvent, naphtha, diesel oil, distillate fuel and similar petroleum products according to GB/T 6536 standard.

Meets ASTM D 86 standard.

I. Main technical features

1, the use of digital temperature controller, stainless steel heater, new refrigeration compressor, electric stirrer composed of constant temperature bath, uniform temperature in the bath, fully meet the requirements of the test.

2, using special heating furnace form, to ensure the safety of the test; The heating power can be adjusted continuously to meet the requirements of the test.

3, the instrument is complete, easy to use, the purchase of the instrument can be carried out under low temperature distillation test of petroleum products.

4. Condensing water tank is made of stainless steel, which can be heated and cooled

Two, main technical parameters and indicators

1, working power supply: AC 220V±10%, 50Hz

2, electric furnace heating power: 1000W;

3, measuring cylinder volume: 100ml, indexing 1ml;

4, distillation flask: 125mL, in line with GB/T 6536 requirements;

5, distillation pressure regulating furnace power: 0 ~ 1 KW×2

6, condensing tube size: φ 14×560 mm

7, quantity: single tube;

8, condensing bath heating method: electric heating rod heating;

9, condensing bath temperature control mode: digital display temperature controller temperature control;

10, refrigeration system: new refrigeration compressor;

11, condensing bath temperature range: 0 ~ 4℃.

12, the maximum power of the machine: 2.45KW.
