Automatic Freezing Point Tester Cold Filter Point Tester GB/T510 ASTM D6371 ASTM D97

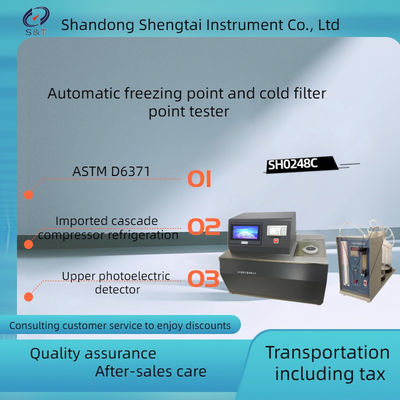

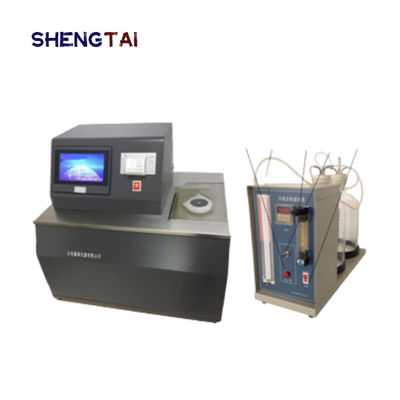

The SH0248C fully automatic freezing point and cold filtration point tester is based on the national standard GB/T510 "Petroleum Product Solidification Point Determination Method" and SH/T 0248. It adopts modern advanced technology and integrates mechanical, optical, electronic, and computer technology. It can automatically complete the testing of petroleum product freezing point and cold filtration point. This instrument adopts photoelectric detection technology and glass tube automatic tilting method, The imported compressor refrigeration system ensures that the required cooling depth is achieved.

Instrument features: Adopting embedded system design and imported PT100 temperature sensor, automatic detection throughout the entire test process; Color touch screen; Can store test results; Can view historical data; The results are printed on the instrument, mechanically stirred automatically, and the experimental results can be exported through a USB flash drive. After being stored in the computer, multiple experiments can be compared.

Compliant with standard: SH/T 0248 ASTMD 6371 GB/T510

1. Upgrade to a 7-inch TFT color LCD display;

2. Refrigeration method: fully enclosed high-efficiency refrigeration compressor.

3. 1 cold trap for testing.

4. Detection method: Imported OMRON photoelectric switch detection

5. After upgrading, historical data can be stored for easy query; It can also be equipped with a USB flash drive output function.

6. Standard micro printer for automatic measurement and printing

7. After the experiment is completed, if there are no personnel to operate, set the automatic shutdown time of the refrigeration machine within 0-50min to avoid frequent compressor starts and extend the service life of the instrument,

Technical parameters:

Compliant with standard: GB/T510 SH/T 0248 ASTMD 6371

Temperature measurement range: -68~30 ℃; Resolution 0.1 ℃

Pressure measurement range: 0-200.0KPa; Resolution 1Pa

Number of test samples: 1 circuit

Temperature measuring element: PT100

Detection method: upper mounted photodetector

Refrigeration method: imported cascade compressor refrigeration

Cooling method: air cooling

Printing: 20 column Chinese character dot matrix printing

Display: 128 × 64 Chinese character display

Storage method: The experimental results can store 199 sets of historical data for easy query;

Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage

Output format: The output format of the result USB drive is CSV or Excel.

Standard printing: Standard micro printer for automatic measurement and thermal printing

★ Remote upgrade: With TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data management: can be connected to the LIMIS system (optional)

Instrument size: 650 * 480 * 620mm Instrument weight: 75kg

Packaging size: 690 * 520 * 660mm Packaging weight: 80kg

Technical parameters:

packing list

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
