SD-4929A Portable Lubricating Grease Oil Bath Dropping Point Tester ASTM D566

  • SD-4929A Portable Lubricating Grease Oil Bath Dropping Point Tester ASTM D566
  • SD-4929A Portable Lubricating Grease Oil Bath Dropping Point Tester ASTM D566
  • SD-4929A Portable Lubricating Grease Oil Bath Dropping Point Tester ASTM D566
Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SD-4929A
Minimum Order Quantity 1
Price FOB/CIF
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
The Inner Diameter Of The Fat Cup ∮9.92mm The Height Of The Cup Is 12mm
The Drip Hole Is ∮28mm Tube Diameter ∮11.1~12.7mm
Thermometer -5℃~300℃ Grade 1℃ Oil Cylinder 600ml Beaker
Heater Power Is 800W
High Light

GB/T4929 Grease Dropping Point Tester

,

ASTMD566 Grease Dropping Point Tester

,

TP31 Grease Dropping Point Tester
Leave a Message
Product Description

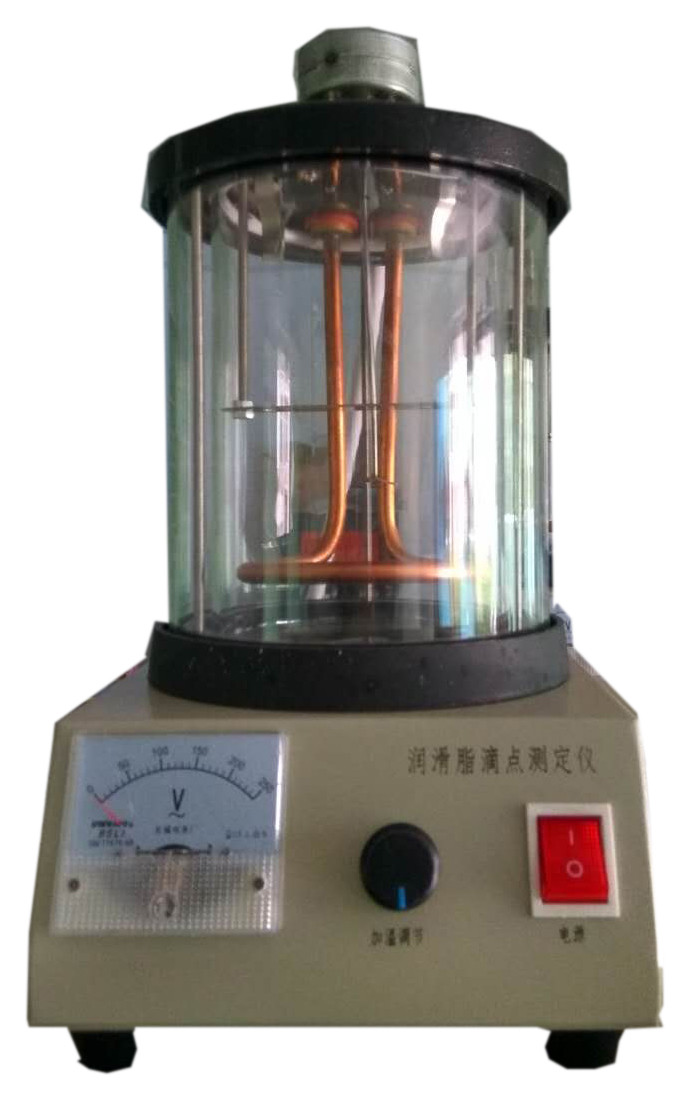

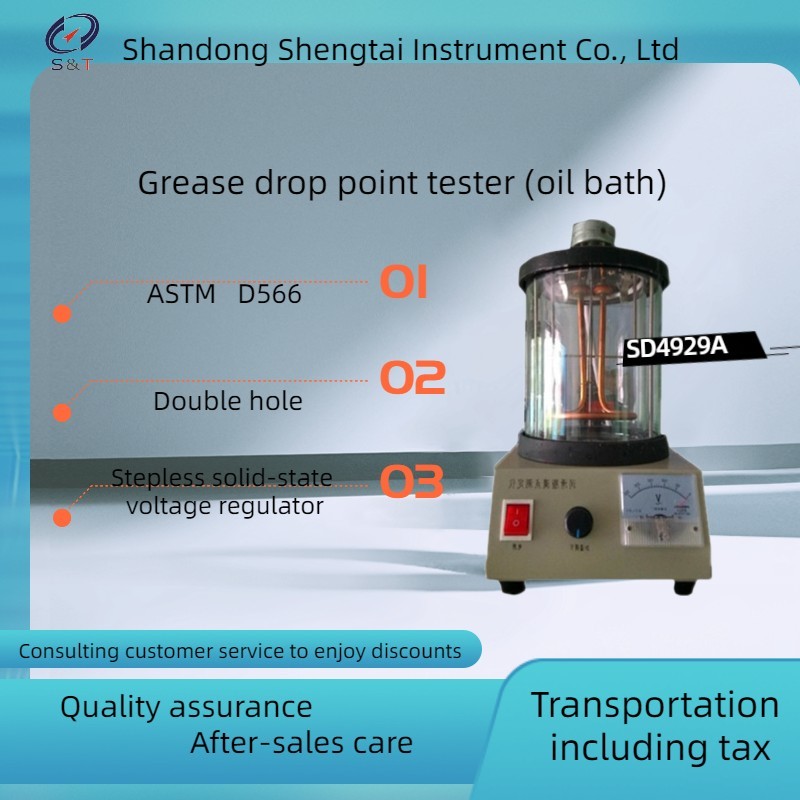

SD4929A grease drop point tester is designed and manufactured according to the requirements of the People's Republic of China standard GB/T4929 "Grease drop point determination method". It is suitable for testing the drop point of grease according to the GB/T4929 standard.

Purpose: This instrument is suitable for measuring the drop point of grease according to GB/T4929, ISO2176, ASTMD566, TP31, "Grease drop point determination method".

Dropping Point Tester (Oil Bath) SD4929A

Dropping Point Tester (Oil Bath) for Lubricating Grease ASTM D566

SD4929A Dropping Point Tester (Oil Bath)

Portable Lubricating Grease Oil Bath Dropping Point Tester ASTM D566

CE Certified Laboratory ASTM D566 Lubricating Grease Dropping Point Apparatus

Technical performance:

1. Power supply: AC 220 V±10%, 50 Hz;
Grease cup: Made of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm.
Test tube: A tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup.
Thermometer: room temperature ~300 ºC, scale value is 1 ºC. The measuring range of the instrument is to 270 ℃
Cylinder: beaker with volume of 600ml
Stirring motor: Rotating speed 60 RPM
Metal bath heating power 800W
Relative humidity: ≤85%
Mixing motor: speed 120r/min
Temperature regulation mode: temperature regulation by stepless solid state voltage regulator
Dimension: 300mm×3600mm×500mm weight: 10kg

Provided by the customer: heating medium (silicone oil)

Packing List

No Name Quantity
1 Lubricating grease drop point tester 1
2 Grease cup 2
3 vitro 2
4 Rubber plug 2
5 Guide ring 2
6 Thermometer (-5 to 300 ° C, index value 1 ° C,) 2
7 Metal bar 1
8 instructions 1
9 Certificate of conformity warranty card 1



































Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
