30L Oxygen Bomb Calorimeter Coal Calorific Value Determination Method

Oxygen Bomb Calorimeter Coal calorific value determination Method

Standards adopted:

GB/T213-2008 "Coal calorific value determination Method", GB/T483-2007 "Coal analysis test Method general provisions", JC/T1005-2006 "cement black raw material calorific value determination method", GB/T384 "petroleum products calorific value determination method".

Scope of application:

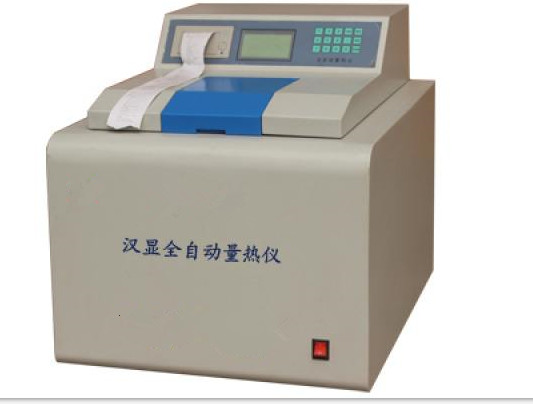

Calorimeter is mainly used to measure the calorific value of coal, coke, gangue and other solid combustibles to measure the quality of the measured objects. Widely used in electric power, coal, metallurgy, petrochemical, quality inspection, environmental protection and other industries. It is the main instrument of coal quality laboratory.

Performance characteristics:

1, controlled by single chip microcomputer, LCD Chinese display temperature, time, accurate and reliable, intuitive display, easy to operate.

2, the instrument has automatic ignition, automatic mixing, automatic printing test results. Real-time display of temperature-time curve, automatic judgment of ignition circuit on or off.

3, reasonable structure, reliable performance, with fault display function, easy to learn and use.

4, single sample test time is about 15min, test results can be used as arbitration analysis.

Main technical indicators:

Heat capacity: about 10500J/K

Resolution: 0.001℃

Test time: about 15min

External water tank capacity 30L

The internal water tank capacity is about 2.3L

Ignition voltage 24V

Ignition time 6 minutes ignition

The measurement accuracy conforms to GB/T213-2003

Calorific value test accuracy: better than 0.2% (benzoic acid)

Temperature measurement range: 0℃-65℃

Power supply voltage: AC220V± 10% 50Hz

Power rate: < 300W

Temperature range: 5℃-40℃

Quantitative error: ≤±1g

Measurement error: better than national standard

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Contact us

Shandong Shengtai Instrument Co.,ltd

ADD:6-8 time base NO.15 lanxiang road tianqiao Area Jinan city

TEL:+86 0531-85919987 85929987

FAX:+86 0531-85957987

Whatsapp/facebook:+86 13370527859

QQ:3206156217

Email:3206156217@qq.com

Web:www.labtool.net/en
