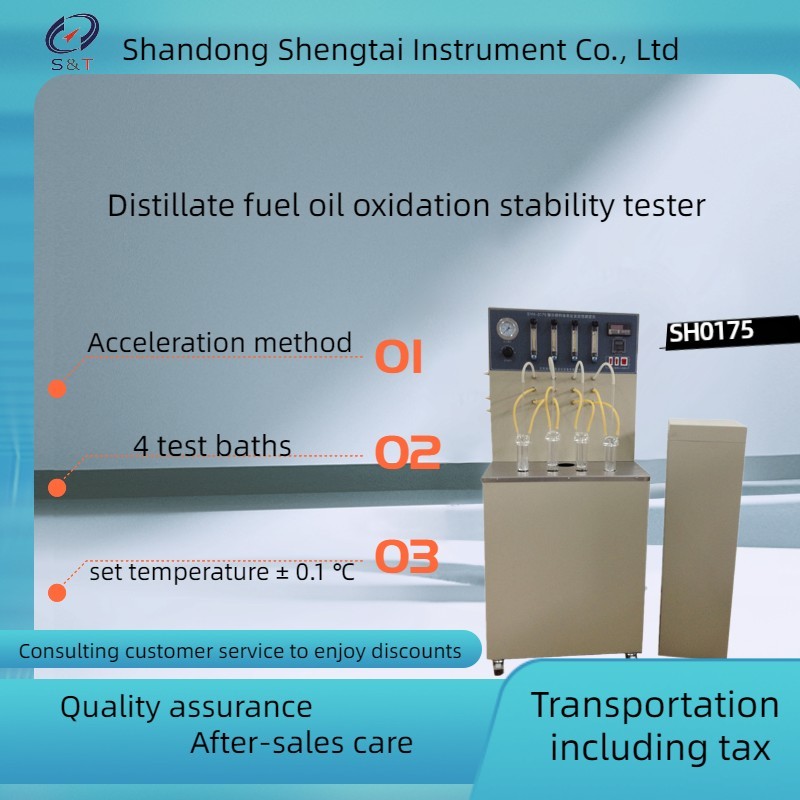

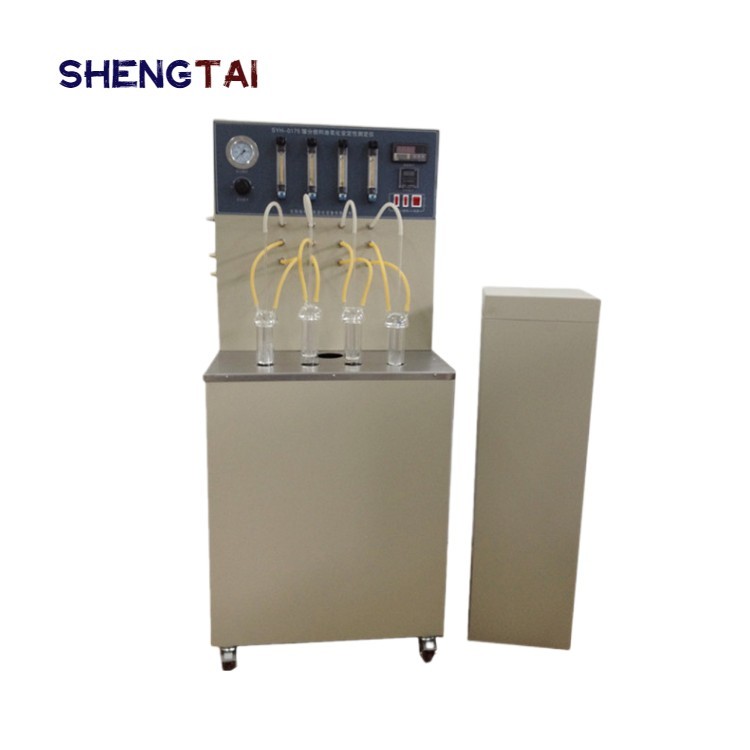

ASTM D2274, ISO12205 Accelerated Method Distillate Fuel Oil Oxidation Stability Tester

  • ASTM D2274, ISO12205 Accelerated Method Distillate Fuel Oil Oxidation Stability Tester
  • ASTM D2274, ISO12205 Accelerated Method Distillate Fuel Oil Oxidation Stability Tester
Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH0175
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH0175 Power Supply AC 220 V±10%, 50 Hz
Maximum Power Consumption 2400W Temperature Control Range Room Temperature ~ 200℃
Temperature Control Accuracy ±0.1ºC Temperature Measuring Component Thermal Resistance
High Light

D1177 Freezing Point Tester

,

Engine Coolant Freezing Point Tester

,

Determination Method Freezing Point Tester
Leave a Message
Product Description

Applicable standard and scope of application

SH0175 distillate fuel oil oxidation stability instrument is designed and manufactured according to the requirements stipulated in the People's Republic of China industry standard SH/T 0175 "distillate fuel oil oxidation stability determination method (acceleration method)".

It is suitable for the determination of intrinsic stability of intermediate distillate fuel oil by accelerated oxidation method according to the method specified in SH/T 0175 standard.

This instrument is the oil production, production, use units, the relevant universities, scientific research departments and other test distillate fuel oil oxidation stability performance of a preferred automatic instrument.



Distillate Fuel Oils Oxidation Stability Tester



ASTM D2274 SH0175 Accelerated method Distillate Fuel Oils Oxidation Stability Tester

SH0175 ASTM D2274 Distillate Fuel Oils Oxidation Stability Tester

ASTM D2274, ISO12205 Accelerated Method Distillate Fuel Oil Oxidation Stability Tester

ASTM D2274 Oxidation Stability Tester for Distillate Fuel Oil



Distillate Fuel Oil Oxidation Stability Tester



Main performance

The instrument is equipped with a temperature control table, used to control the temperature of the water bath at 95℃±0.2℃.

Users can also adjust the temperature control meter according to actual needs.

There are 4 test baths on the working table of the instrument, so 4 samples can be tested at the same time.

The instrument is equipped with four flowmeters, indicating the gas flow rate through the four oxidation tubes.

The gas source of the instrument is oxygen with purity of no less than 99.5%. The oxygen from the oxygen cylinder can be used directly.

If it comes from the factory oxygen main, it should be equipped with a filter and a pressure regulating valve before connecting to the instrument.

The oxygen input is on the side of the instrument.

The instrument is equipped with a timer to record the time of the test. When the time is up, there is an alarm.

The instrument is equipped with a darkbox for dark storage before the oxidation tube is placed in the heating bath and dark cooling after the oxidation tube is taken out.

ASTM D2274, ISO12205 Accelerated Method Distillate Fuel Oil Oxidation Stability Tester 0

Main technical indicators

1. Flow meter: 50ml/min+5ml/min, each oxidation tube is connected with a flow meter

2, oxygen tube: special high temperature resistant glass products.

3, Working power supply: AC220V50HZ, power consumption: ≤2400W.

4, temperature control mode: digital display temperature control meter automatic temperature control.

5, Temperature control range: room temperature ~ 200℃,

6, temperature control accuracy: setting temperature ±0.1℃.

7, temperature measurement element: thermal resistance.

8, the number of samples: 4, at the same time can be used for 4 samples.



1. Power supply AC 220 V±10%, 50 Hz
2. Maximum power consumption 2400W
3. Temperature control mode digital display temperature control meter automatic temperature control.
4. Temperature control range room temperature ~ 200℃,
5. Temperature control accuracy ±0.1ºC
6. Temperature measuring component Thermal resistance
7. The number of samples: 4at the same time can be used for 4 samples.
8.Flow meter 50ml/min+5ml/min, each oxidation tube is connected with a flow meter
9.Oxygen tube

special high temperature resistant glass products.


Overall dimension: 520 × 420 × 510 (mm) Weight: 35kg

packing list



S/N Name Quantity Unit Remarks
1 Distillate fuel oil oxidation stability tester host 1 set
2 Equipped with black box 1 set
3 Oxidation tube 4 piece
4 condenser 4 piece
5 Oxygen tube 4 piece
6 Glass thermometer 1 piece (50℃～100℃)
7 Bath cover 4 piece
8 Hose (inside diameter φ 6) 4 piece Flowmeter outlet to glass oxygen pipe - 50 mm/piece
9 Hose (inside diameter φ 6) 1 meter For water inlet and outlet of glass condensate pipe, the length of each section shall be cut as required
10 Power cord 1 copy
11 Instruction 1 copy
12 Packing list 1 copy
13 Certificate warranty card   copy

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated

ASTM D2274, ISO12205 Accelerated Method Distillate Fuel Oil Oxidation Stability Tester 1
