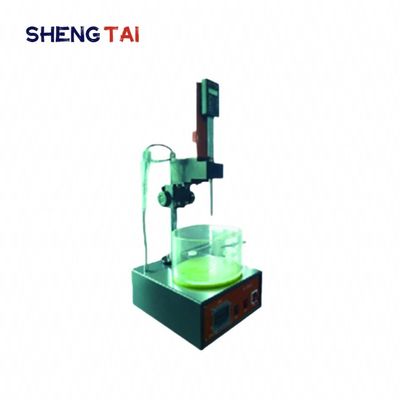

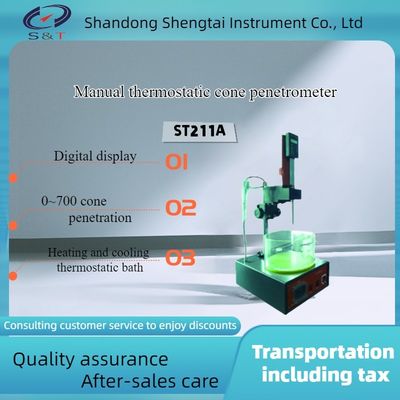

Manual constant temperature ointment cone penetration tester with high cost-effectiveness of constant temperature bath

  • Manual constant temperature ointment cone penetration tester with high cost-effectiveness of constant temperature bath
  • Manual constant temperature ointment cone penetration tester with high cost-effectiveness of constant temperature bath
Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST211A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST211A Measurement Range 0 ~ 700 Coning Degree (digital Display Table Shows 0 ~ 70mm);
Resolution 0.01mm Needle Insertion Accuracy ±1 Degree Of Coning
Temperature Control Accuracy 25±0.1℃ Standard Cone 102.5±0.05g, In Line With The Pharmacopoeia Of 2020
High Light

Plaster Softening Point Tester

,

Automatic Detection Softening Point Tester

,

Pharmacopoeia Softening Point Meter
Leave a Message
Product Description

ST211A manual pharmacopoeia cone Penetration tester is based on the 2020 pharmacopoeia 0983 cone Penetration the determination of the technical requirements of the law of and the relevant provisions of the design and manufacturing, the main applicable is suitable for the soft cream, eye cream and commonly used matrix materials (such as vaseline, lanolin, wax) half solid material, in order to control the hardness and the properties such as viscosity, avoid affect drug coating and ductility.

Main technical features

1. Digital display is adopted to display the coning degree value, which is intuitive and eye-catching.

2, with the lifting frame coarse adjustment, fine adjustment function, easy to adjust, accurate needle.

3. Equipped with heating and cooling constant temperature bath, water bath temperature automatic control, cost-effective equipment.

Main technical parameters and indicators

Measurement range 0 ~ 700 coning degree (digital display table shows 0 ~ 70mm);
Coning timing control device The time can be set arbitrarily according to your own needs, and the time error is less than ±0.1 second;
resolution 0.01mm;
Needle insertion accuracy ±1 degree of coning;
Temperature measuring range 10 ~ 50 degrees (equipped with semiconductor cooling cycle device, which can be heated or refrigerated);
Temperature control accuracy 25±0.1℃;
Temperature control mode high-precision digital temperature controller, which can maintain a constant temperature up to 25 degrees as required by standards;
Standard cone 102.5±0.05g, in line with the pharmacopoeia of 2020;
Lifting support Double lifting adjusting mechanism of coarse adjustment and fine adjustment makes it easy for the needle tip to align with the sample plane
Others Equipped with cold light source, easy to use and operate.
Standard cone

1 # cone: the mass of 1 # cone is 102.5g ± 0.05g, and the mass of matching cone rod is 47.5g ± 0.05g;

2 # cone: the mass of the II # cone is 22.5g ± 0.025g, and the mass of the matching cone rod is 15g ± 0.025g (optional)

3 # cone: the total mass of III # cone and taper rod is 9.38g ± 0.025g (optional)

Cone penetrometer: 280mm * 350mm * 480mm

Constant temperature bath: 350mm * 320mm * 120mm

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 No. 1 cone 1 piece
3 Sample box 1 1 piece
4 Heating and cooling thermostatic bath 1 set
5 Power cord 1 piece
6 Certificate warranty card 1 copy
7 instructions 1 copy
