Product Details
Name Automatic Closed Flash Point Tester Working Power Supply AC220V±10%, 50Hz
Temperature Measurement Range: Room Temperature ~ 370℃ Accuracy ≥104℃±2℃ ≤104℃±1℃
Resolution : 0.1℃; Precision 0.5%
Cardinal Parameters Heating Speed: In Line With GB/T261-2008 Standard;
High Light

0.5% Closed Cup Flash Point Apparatus

,

ISO-2719 Closed Cup Flash Point Apparatus

,

ASTM D93 Closed Cup Flash Point Apparatus

Leave a Message
Product Description

Automatic closed flash point tester line with ISO-2719,ASTM D93, GB261-2008 standard

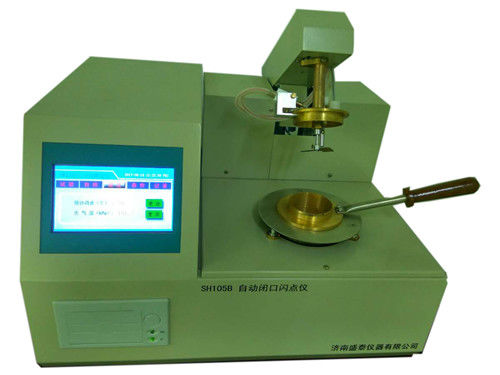

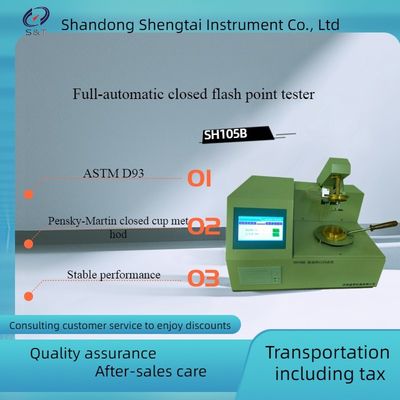

SH105B Closed flash point automatic tester, is a centralized scientific research developed products.

The instrument adopts microcomputer technology, large screen LCD display.

Instrument according to the standard method of heating, automatic rise and fall, automatic ventilation, automatic ignition, automatic display, automatic locking flash point value, automatic printing results.

0.5% closed cup flash point apparatus Line With ISO-2719 ASTM D93 GB261-2008 Standard 0

After the test can be automatically cooled, to achieve the full automation of the work process.

It has the advantages of accurate measurement, good repeatability, stable performance and simple operation.

Widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments.

In line with ISO-2719,ASTM D93, GB261-2008 standard T0633 liquid petroleum asphalt flash point meter (Tag closed cup method).

instrument features

1, the use of color LCD large screen display, full Chinese man-machine dialogue interface, no logo keyboard, for the pre-value temperature, sample label, atmospheric pressure, test date and other parameters, with a prompt menu-oriented input.

2. Simulate tracking displays the function curve of temperature rise and test time. It has the function of Chinese wrong operation software to prompt modification and the parameter prompt function of test date, test time and so on.

3. Equipped with standard RS-323,485 computer interface, the lower computer stores 120 sets of historical data, the optional software can be connected with the computer to store data in large capacity and can be long-term storage, data transmission, the upper can modify the lower computer parameters in real time.



4. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

5, computer operation, Chinese operation prompt interface, automatic detection, automatic printing reports.

6, open the lid, ignition, detection, printing data automatically completed, the test arm automatically rise and fall.

7, Electronic ignition, forced air cooling, without air source, automatic ignition.

8, without automatic ignition of air source, improve the safety of the test.



Main technical indexes and parameters

1, working power supply: AC220V±10%, 50Hz;

2, temperature measurement: range: room temperature ~ 370℃

Accuracy: ≥104℃±2℃ ≤104℃±1℃;

Resolution: 0.1℃;

Precision: 0.5%;

3, cardinal parameters: heating speed: in line with GB/T261-2008 standard;



Step A: Heating rate: 5 ~ 6℃/min

Step B: Heating rate: 1.0 ~ 1.5℃/min

Ignition mode: electronic ignition;

4, stirrer: electric stirring device: ⑴ 90 ~ 120 RPM, suitable for the test step A.

⑵ 250±10 RPM, suitable for test step B.

l Working power supply AC220V±10%, 50Hz
l Temperature measurement

Range: room temperature ~ 370℃

Accuracy: ≥104℃±2℃ ≤104℃±1℃;

Resolution: 0.1℃;Precision: 0.5%;



l Base parameters

Heating speed: in line with GB/T261-2008 standard;



Step A: Heating rate: 5 ~ 6℃/min

Step B: Heating rate: 1.0 ~ 1.5℃/min

Ignition mode: electronic ignition;

l Stirrer: Electric stirring device

(1) 90 ~ 120 RPM, suitable for test step A.

⑵ 250±10 RPM, suitable for test step B.

0.5% closed cup flash point apparatus Line With ISO-2719 ASTM D93 GB261-2008 Standard 1
