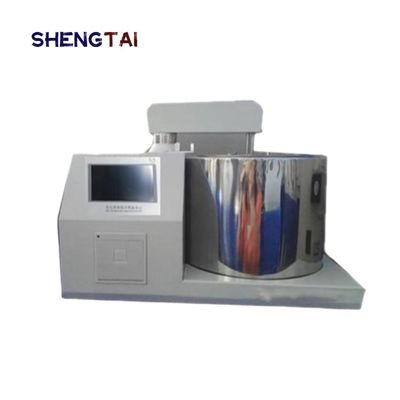

Spontaneous Ignition Point Tester Anti-ignite Power Plant Ignition Point Analyzer SH706B

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH706B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH706B Temperature Control Range Oom Temperature~800℃
Erlenmeyer Flask 200 Ml Ambient Temperature 5℃ ~ 35℃
Relative Humidity <85% Maximum Power <1500W
Timing Accuracy 1S
High Light

Pharmacopoeia Drop Tester


6 Wells Drop Tester


Gb1790-2012 drop test equipment

Leave a Message
Product Description

SH706B automatic Self-ignition Point Tester is designed and manufactured according to the People's Republic of China power industry standard DL/T 706-1999 and ASTM E659. It is used to measure the value of anti-fuel spontaneous combustion point. It is suitable for electric power, petroleum, chemical industry and other industries.

Self-Ignition Point Tester-Oil Ignition Point Tester-Petroleum Self-Ignition Point Tester

ASTM E659 Self-ignition Point Tester

ASTM E659 Fuel Oil Fire Resistant Oil Autoignition Temperature

Liquid Autoignition Temperature Test Machine 

Petroleum Products Self-ignition Point Tester Autoignition Point Test Apparatus

Spontaneous Ignition Point Tester Anti-ignite Power Plant Ignition Point Analyzer

The instrument adopts advanced microcomputer technology and color display with touch screen, and adopts advanced temperature control mode to automatically complete the determination of anti-fuel spontaneous combustion point. It has the functions of automatic constant temperature countdown after reaching the pre-set spontaneous combustion point, automatic sampling, automatic detection of spontaneous combustion point, and automatic printing of results.

Performance characteristics:

1.7-inch color LCD touch screen, Chinese man-machine interface, clear and intuitive.

2. PT100 temperature sensor imported from abroad is adopted

3. With over temperature alarm function, automatic measurement of the bottom center, the middle and upper side of the temperature

4. Simple operation, one key start, the test process will be completed automatically.

5. The main machine is controlled by microprocessor program, the test process automatically temperature up, automatic constant temperature.

6. Automatic injection, automatic detection of spontaneous combustion point, automatic printing, automatic stop after the test.

7, the experimental results can be exported through the U disk, stored in the computer can be compared for many times

8, with date password setting function.


Technical parameters

Temperature control range room temperature~800℃
Temperature control accuracy ±1℃
Erlenmeyer flask 200 ml
Ambient temperature 5℃ ~ 35℃
Relative humidity <85%
Power supply AC 220V±22V 50Hz ±2.5Hz
Maximum power <1500W
Timing accuracy 1S
Instrument size: 450 * 380 * 550mm Weight: 35kg
Package size: 520 * 450 * 620mm Package weight: 43kg


packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Sampler 1 Set On the host
3 Sample bottle 1 set
4 Triangular flask 1 piece
5 Instruction 1 copy
6 Certificate warranty card 1 copy




Spontaneous Ignition Point Tester Anti-ignite Power Plant Ignition Point Analyzer SH706B 0

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

Spontaneous Ignition Point Tester Anti-ignite Power Plant Ignition Point Analyzer SH706B 1

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Spontaneous Ignition Point Tester Anti-ignite Power Plant Ignition Point Analyzer SH706B 2

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
