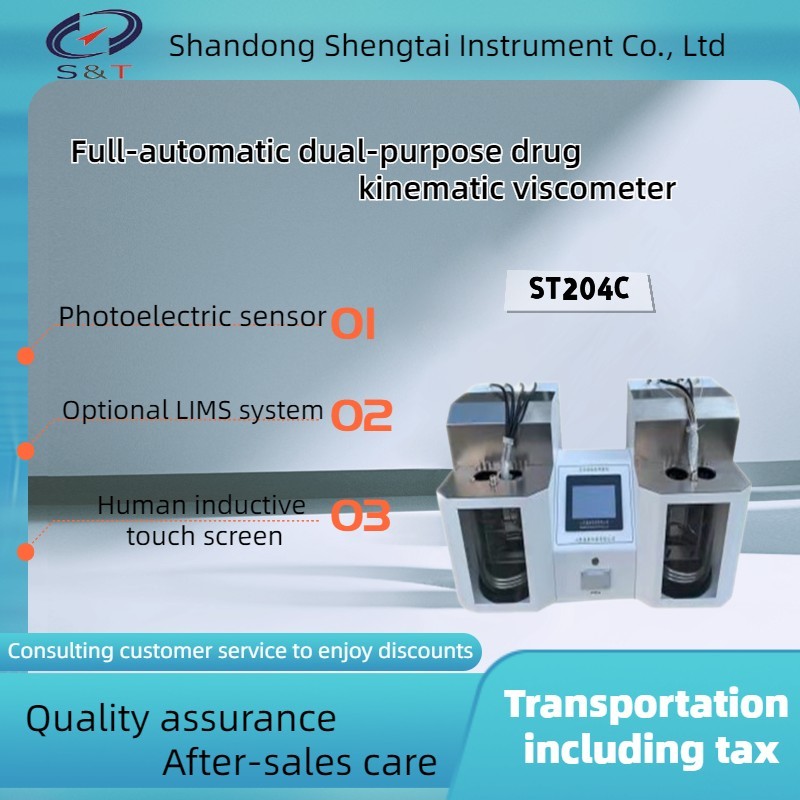

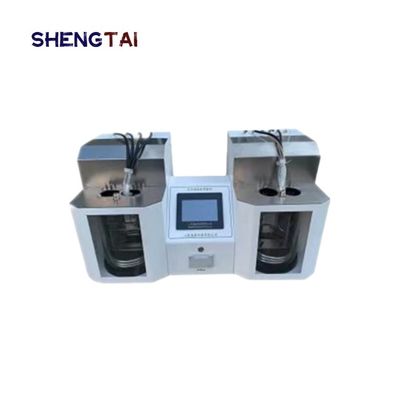

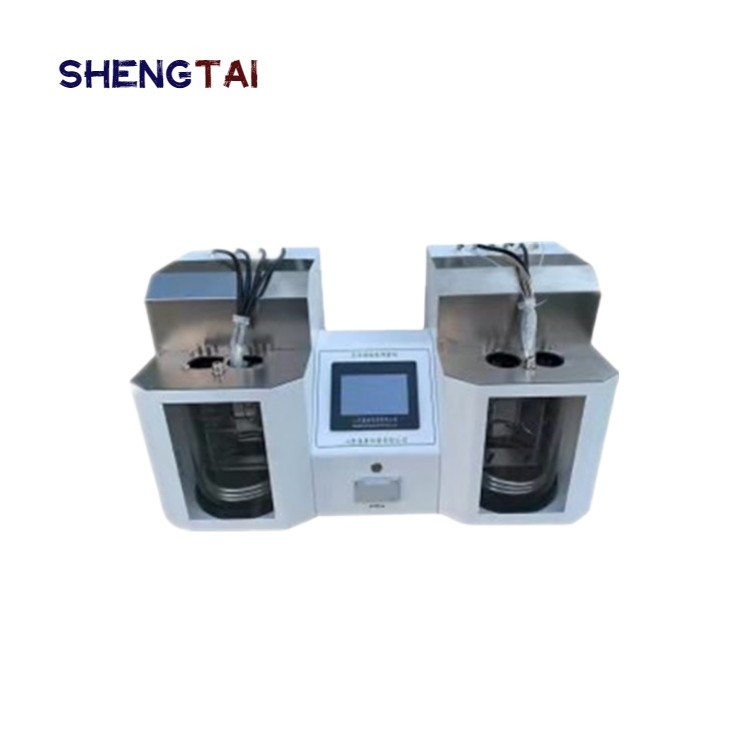

Fully Automatic Kinematic Viscometer For Drug Ping's Capillary Viscosity Determination

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number ST204C
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST204C Timing Range 0.0s ~ 999.9s
Temperature Control Accuracy ±0.1℃ Working Power Supply AC220V ± 10%; 50Hz
Power Consumption Of The Whole Machine Not More Than 2000W. Timing Accuracy No More Than ± 0.01% For 60min
High Light

Fully Automatic Kinematic Viscometer

,

Drug Automatic Kinematic Viscometer

,

Ping's Capillary Automatic Kinematic Viscometer

Leave a Message
Product Description

ST204C automatic drug dual-purpose kinematic viscosity tester applies to the general principles of the 2020 "China pharmacopoeia" 0633 first flat capillary viscosity measurement method and second ubbelohde capillary viscometer method to determine the method to design and manufacture, this law is relatively method is used to measure a certain volume of liquid under the action of gravity through the time needed for capillary, for movement of the fluid viscosity.

ST204C automatic drug kinematic viscometer has a series of automatic functions, such as automatic constant temperature, automatic extraction, automatic timing, automatic calculation, automatic printing, automatic cleaning, automatic drying, etc. The test can be completed with a single injection and a click of starting.

Main technical parameters

● Compliance standard: general rule 0633 of Chinese Pharmacopoeia in 2020

● Temperature measurement range: room temperature - 100 ℃ (high temperature can be customized to 150 ℃ or low temperature 0 ℃);

● Temperature control accuracy: 0.1 ℃

● Display mode: human inductive touch screen

● Operation process: put the sample into constant temperature, detect, calculate, clean the viscosity tube, dry, print the report automatically

● Viscosity tube clamp: made of 304 stainless steel, high and low temperature resistant graphite sliding bearing device

● It is equipped with LED soft light, which is evenly filled and easy to observe.

● Measuring range: Ubbelohde viscosity measuring range: 0.6-1000mm2/s

Pinot viscosity measurement range: 0.6-17000mm2/s

● Timing range: 0.0s~999.9s;

● Timing accuracy: no more than ± 0.01% for 60min;

● Data memory: the memory of microcomputer instrument can be expanded to 16G

● Detection method: photoelectric sensor detection

● Result output: at the same time, it can be equipped with U disk output function, and output to PC terminal for long-term storage

● Remote upgrade: with TCP network transmission function, software remote upgrade can be carried out later

● Account management: according to the password setting account hierarchical management, can set the main account and sub-account

● Input extension: select barcode gun to scan and input sample information (optional)

● Data storage: U disk data export function

● Data sharing: access to the LIMS system of the group company (optional)

● Printer: equipped with micro printer

● Power consumption of the whole machine: not more than 2000W.

● Working power supply: AC220V ± 10%; 50Hz

● Size and weight: 850 * 380 * 550mm 38kg

Methods General rule 0633 of 2020 Chinese Pharmacopoeia
General temperature control range room temperature ~ 100.0℃(high temperature can be customized to 150 ℃ or low temperature 0 ℃);
Temperature control accuracy ±0.1℃;
Timing range 0.0s ~ 999.9s;
Timing accuracy no more than ±0.01% within 60min;
Number of samples 2 sets of capillary viscometers (viscosity coefficient range shall be indicated when ordering);
Service environment Ambient temperature 10℃ ~ 35℃, relative humidity ≤ 85%;
Temperature sensor Pt100 platinum resistance
Rated power 2000W
Working power supply: AC220V ± 10%; 50Hz

Size: 850 * 380 * 550mm weight: 53kg



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Pin's special viscosity tube 4 piece Comply with the pharmacopoeia
3 Uhl special viscosity tube 4 piece Comply with the pharmacopoeia
4 Special viscometer support 1 set
5 Cleaning fluid conduit 2 piece
6 Electric attractor 1 set
7 power cord 1 piece
8 Certificate warranty card 1 copy
9 instructions 1 copy
10 Printing paper 2 piece



Fully Automatic Kinematic Viscometer For Drug Ping's Capillary Viscosity Determination 0

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

Fully Automatic Kinematic Viscometer For Drug Ping's Capillary Viscosity Determination 1



OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Fully Automatic Kinematic Viscometer For Drug Ping's Capillary Viscosity Determination 2

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
