|Methods:||Viscosity Was Determined According To General Rule 0633 Of Chinese Pharmacopoeia||Temperature Control Range:||Room Temperature +5℃ ~ 120.0℃ (0-120℃ Is Optional);|
|Management Permission:||Can Contain 3 Levels Of Management Permission||Temperature Control Accuracy:||±0.1℃|
|Timing Range:||0.0s ~ 999.9s|
Pingshi Automatic Kinematic Viscometer,
Constant Temperature Automatic Kinematic Viscometer,
Extraction automatic kinematic viscometer

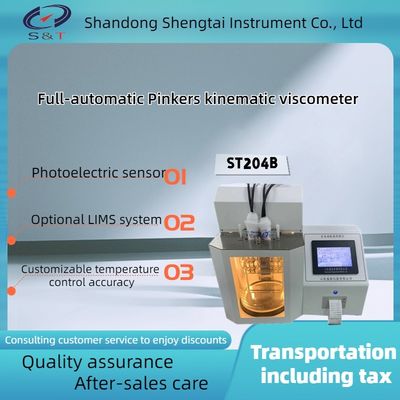

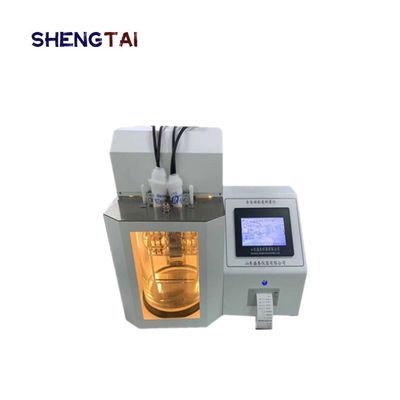

ST204B automatic drug Pinstar kinematic viscosity tester is suitable for the design and manufacture of viscosity measurement method based on general principle 0633 of Chinese Pharmacopoeia in 2020. This method adopts relative method to measure the time required for a certain volume of liquid to pass through the capillary under the action of gravity, so as to obtain the kinematic viscosity of the fluid.
ST204B automatic drug kinematic viscometer has a series of automatic functions, such as automatic constant temperature, automatic extraction, automatic timing, automatic calculation, automatic printing, automatic cleaning, automatic drying, etc. When in use, the test can be completed by one sample injection and clicking start.
Main technical indexes
The display mode is a 7-inch color touch screen.
Using embedded system design, the whole test process automatic detection, automatic printing.
The main parts and electronic components of the instrument are imported, with good stability.
The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.
The test results can be exported through the U disk.
Storage: Experimental results can be stored in 199 groups of historical data for easy query;
Result output: At the same time can be equipped with U disk output function, output to the PC side for long-term storage
Output format: The output format of the usb flash disk is CSV or Excel.
Data extension: laser printer interface, HP1108 laser printer can be linked (optional).
Data protection: With date password setting function.
Standard printing: standard printing with micro printer automatic measurement automatic thermal sensitive printing
Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later
Data management: Can connect to limIS system
Data memory: Microcomputer instrument memory can be expanded to 16 gigabytes.
Equipped with LED soft light, filling light uniform, easy to observe.
The test results can be stored;
You can view the historical data.
The result is printed on the instrument. The bath contains automatic mechanical stirring
It has the function of setting the hierarchical password.
Methods: The viscosity was determined according to general rule 0633 of Chinese Pharmacopoeia
Temperature control range: room temperature +5℃ ~ 120.0℃;
Temperature control accuracy: ±0.1℃;
Timing range: 0.0s ~ 999.9s;
Timing accuracy: 60min no more than ±0.01%;
Number of samples: 2 sets of capillary viscometers (viscosity coefficient range shall be indicated when ordering);
Operating environment: Ambient temperature 10℃ ~ 35℃, relative humidity ≤ 85%;
Temperature sensor: Pt100 platinum resistance;
Rated power: 1800W.
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
|Quantity(Sets)||1 - 1||2 - 5||6 - 10||>10|
|Est. Time(days)||6||20||30||To be negotiated|
