Constant Temperature Oil Densitometer (5/10000) GB/T2013-2010 GB/T29617-2013

SH102D Automatic Constant Temperature Oil Densitometer (5/10000) SH/T0640 GB/T2013-2010 and GB/T29617-2013.

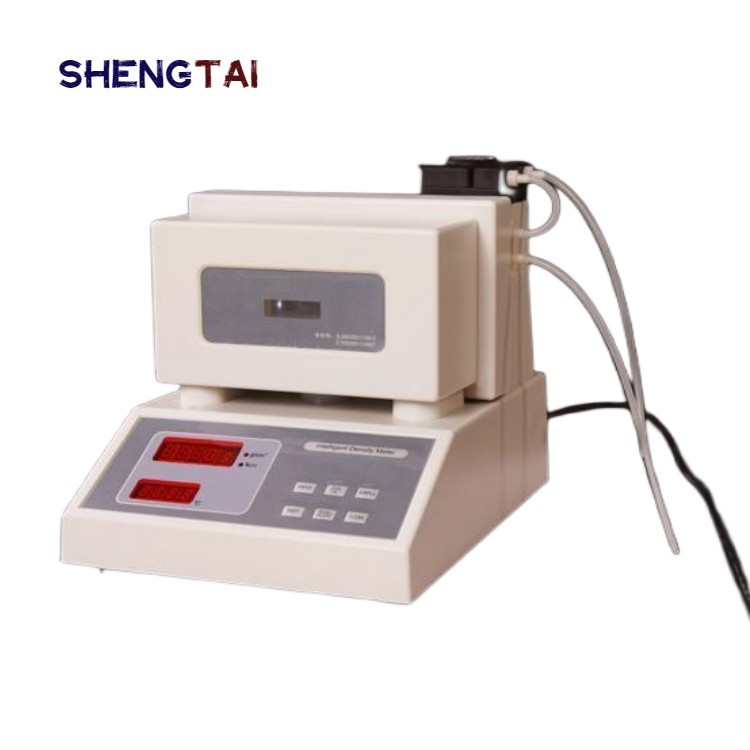

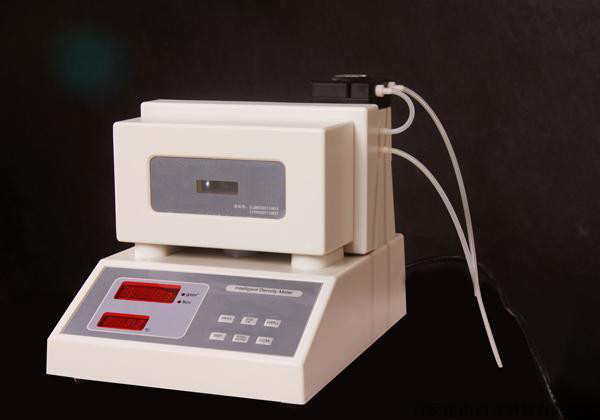

SH102D Automatic Constant Temperature Oil Densitometer (5/10000)

SH102D automatic constant temperature petroleum densimeter is suitable for measuring liquid density and relative density. This method is used to measure liquid density according to the principle of different vibration frequency when double U-shaped tube is filled with different media. It conforms to SH/T0640 GB/T2013-2010 and GB/T29617-2013.

After the liquid to be measured is pumped into the resonant cylinder sensor, the measurement data is processed by the single chip microcomputer, which is fast and direct, and has high sensitivity.

It is composed of double tuning fork type density sensor, vibration cylinder circuit, temperature measuring circuit, CPU, display, constant temperature tank, liquid inlet pump and control panel.

The liquid densimeter can be widely used in various liquid density measurement, and with different concentration conversion software, but also can directly read the corresponding liquid concentration value, such as alcohol, through the microcontroller software processing, can directly read the volume concentration data, testing is more convenient.

performance characteristics

1, constant temperature control: because the liquid density is greatly affected by temperature, so the liquid density detected at real-time temperature is converted to the liquid density at 20℃.

The instrument is controlled by a constant temperature tank, the sensor and its components and the sample liquid are sealed in the constant temperature tank, through the temperature sensor to detect the temperature of the oscillating tube (sample liquid), the SCM control electronic components refrigeration or heating, to ensure that the temperature in the constant temperature tank is stable in the range of 20℃±0.1℃.

This not only solves the trouble and error caused by the conversion, but also ensures the measuring accuracy, stability and repeatability of the instrument (constant temperature value can be customized according to user requirements)

2. Direct value showed that the density of liquid at 20 ℃, and there is temperature display: by single chip microcomputer to detect the sensor of the oscillation frequency, the mathematical model of the relationship between frequency and the liquid density using sensor, and the liquid density value, then carries on the floating point arithmetic, make in the process of operation will not bring extra error for lack of operation digits, guarantee the accuracy of measurement results.

The density value calculated by MCU is displayed through the five-digit number, and there is a temperature display window.

3. Automatic sampling: Single-chip microcomputer is used to control the stepper motor to drive the peristaltic pump to suck samples, which improves the degree of automation of the product

4. Acid and alkali resistance pipelines: pipelines in direct contact with the liquid are imported acid and alkali resistance pipes to ensure that the instrument can measure acid and alkali solution.

5. Data storage and transmission: built-in storage chip, can store 80 groups of test data, and can be recalled and deleted

Calibration function: when the instrument is not used for a long time, drift will occur. This instrument can use 20℃ pure water as the standard to calibrate the instrument, which is the function that the glass densimeter cannot achieve.

Main technical parameters

Density measurement range: 0.0001 -1.9999g/cm³

Density measurement accuracy: ± 0.0005g /cm3

Resolution of density value: ± 0.005g /cm3

Constant temperature control: 20℃ + 0.1℃ (can be customized constant temperature between 15~35℃ arbitrary temperature)

Sampling volume: 2ml/ time

Data storage: 80 groups

U tube visual function: Yes

Automatic injection detection function: Yes

Ambient temperature requirement: 5℃~35℃

Power supply: 220V±22V, 50Hz± 1Hz,50VA

External size: 206mm×205mm×200mm

Instrument weight: 3.2kg
